China Titanium Mmo Anode for Cathodic Protection

Product Description

Anode for Cathodic Protection

Media Application	Standard	Potential of Chlorine evolution	Polarizability	Strengthened Life	Potential of Oxygen Evolution
Chlorine evolution	HG/T 2471 A	≤1.13V	≤28	≥1200min	≥1.22V

Chemical composition

Substrate	Coating
ASTM B265 Gr1 or Gr2	Mixed metal Oxide

Specifications

Diameter(mm)	Length (mm)	Weight(kg)	Surface area (m2)	Life
3.2	1000	0.036	0.01	20
6.4	1000	0.145	0.02	20
12.7	1000	0.570	0.04	20
19	1000	1.275	0.06	20

The products can be customized according to specific requirement.

Application:
Condensate tank, heat exchange equipment, ground bed and so on.

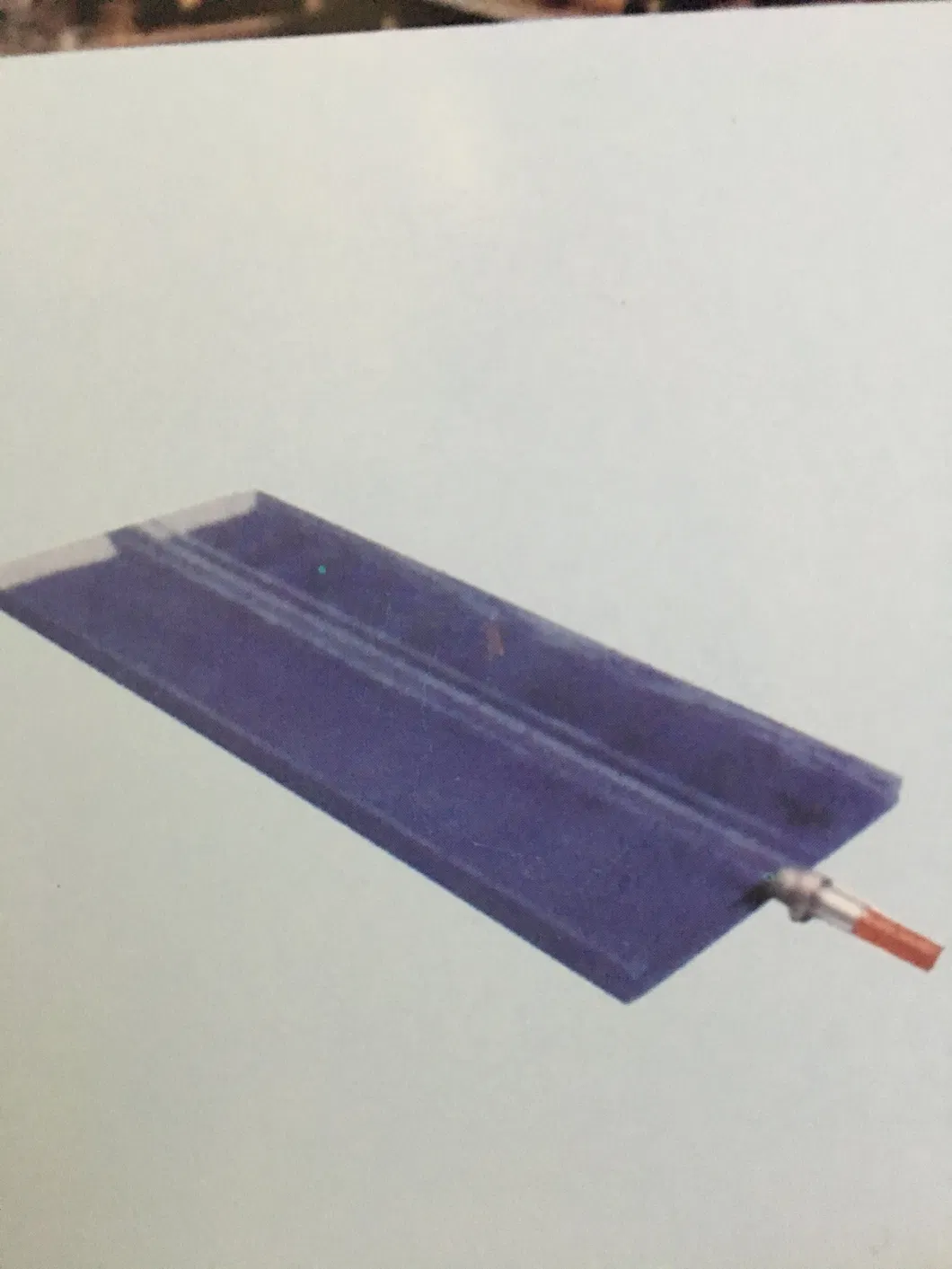

Titanium Mmo Anode for Cathodic Protection

Titanium Mmo Anode for Cathodic Protection
