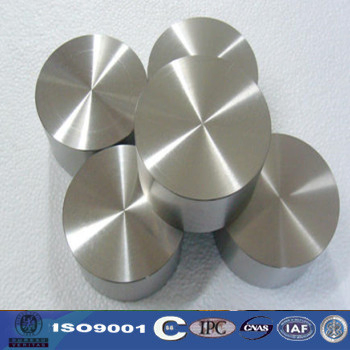

Gr1 Gr2 Gr5 Titanium sputtering Target for Electronic Components
Titanium and titanium alloy available sizes Titanium Forged disc up to 2800kg per pieceTitanium Forged block is squares or rectangles up to 1200mm widthTitanium Forged Ring Size range from 200 " - 3000mmTitanium Forged bar Size range from 30 " - 400mmTitanium and titanium alloy application......
Send Inquiry
Product Description

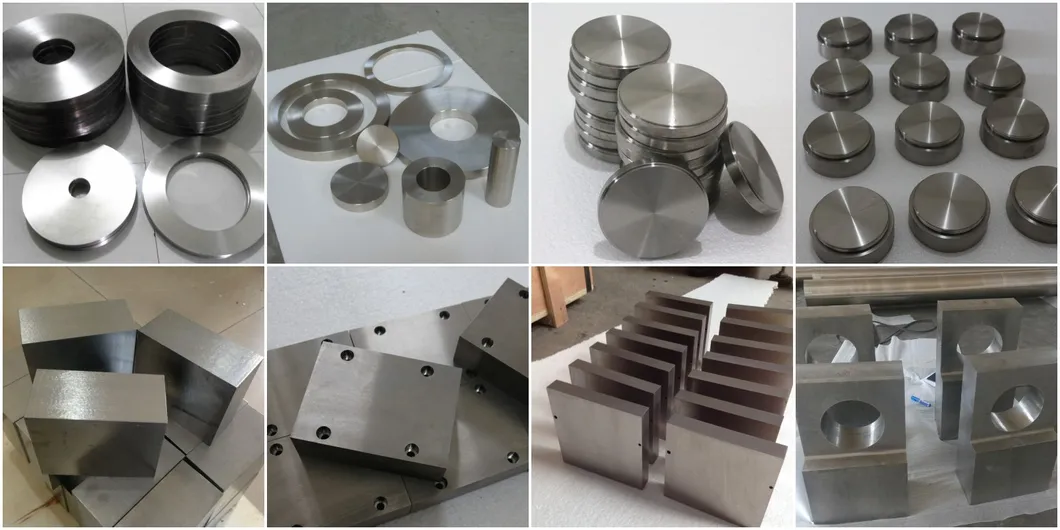

Titanium and titanium alloy available sizes

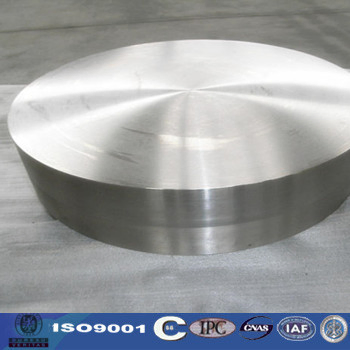

Titanium Forged disc up to 2800kg per piece
Titanium Forged block is squares or rectangles up to 1200mm width
Titanium Forged Ring Size range from 200 " - 3000mm
Titanium Forged bar Size range from 30 " - 400mm
Titanium and titanium alloy applications
Product Description
Chemical Composition
Tensile Strength

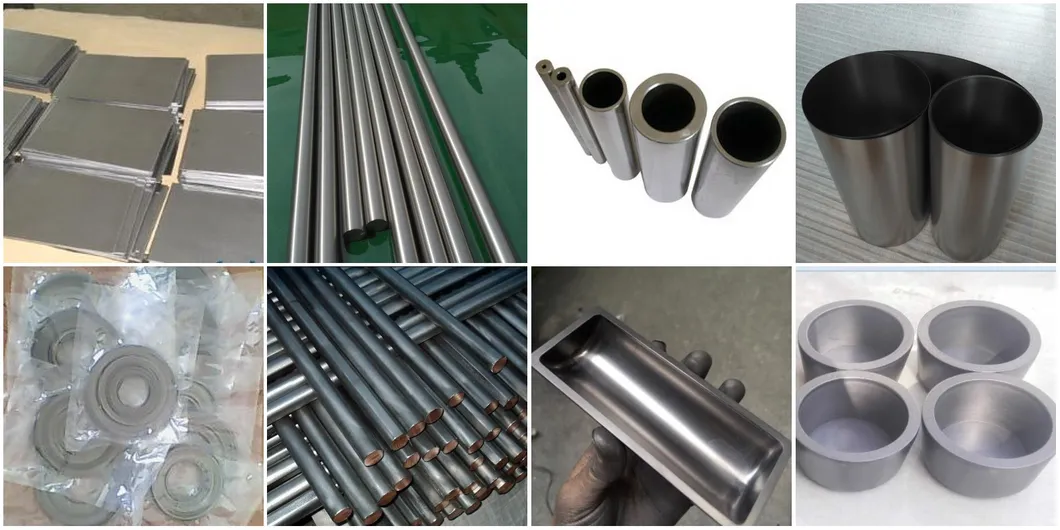

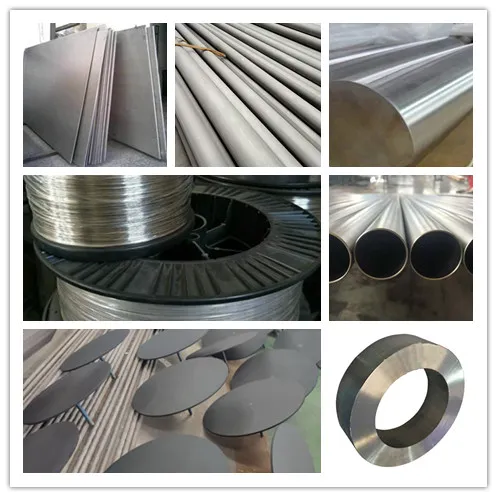

Product Specification
Main product
1.Titanium household supplies, titanium camping/outdoor supplies, titanium sports equipment, titanium handicrafts
2.Titanium, zirconium, nickel and composite metal processing products
3.Equipment supporting assembly, pressure vessel, heat exchanger

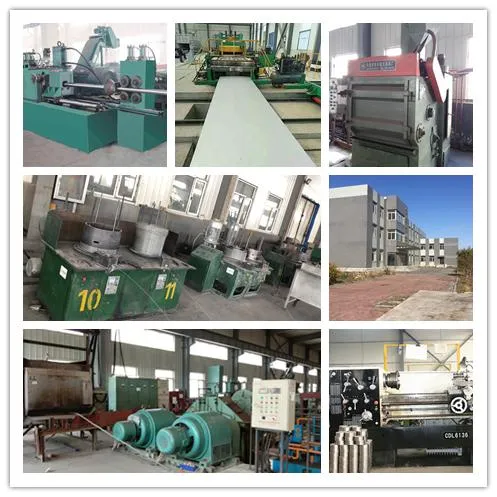

Machinery equipment
Titanium Forged disc up to 2800kg per piece
Titanium Forged block is squares or rectangles up to 1200mm width
Titanium Forged Ring Size range from 200 " - 3000mm
Titanium Forged bar Size range from 30 " - 400mm
Titanium and titanium alloy applications
| seawater electrolysis | horizontal plating | pulse plating | cathodes protection | caustic soda production |
| chlorate industry | organic synthesis | sodium hypochlorite production | noble metal electrowinning | metal electrowinning |
| produce chlorine by electrolysis | metal plating | foil production | high-speed electroplating | auxiliary anode |
| cathode protection | organic synthesis | acid water electrolysis | metal surface treatment | electrodialysis |
Product Description
| American Standard | GR1,GR2,GR3,GR5,GR7,GR9,GR12 |
| Russian Standard | BT1-00,BT1-0,BT1-2 ,BT6 ,BT5-1 ,2B,3B ,PT7M |
| Chinese Standard | TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4 |
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Balance |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Balance |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Balance |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | Balance |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | / | / | / | Balance |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12-0.25 | / | / | Balance |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Balance |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 | Balance |
Tensile Strength
| Grade | Tensile Strength (Min) | Yield Strength (Min) | Elongation(%) | ||
| ksi | Mpa | ksi | Mpa | ||
| Gr1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| Gr3 | 65 | 450 | 55 | 380 | 18 |
| Gr4 | 80 | 550 | 70 | 483 | 15 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
| Gr7 | 50 | 345 | 40 | 275 | 20 |
| Gr9 | 90 | 620 | 70 | 438 | 15 |
| Gr12 | 70 | 438 | 50 | 345 | 18 |
Product Specification
| Bar | Plate | Sheet | Pipe | Ingot | Wire | |
| Diameter | 4-200mm | 2-268mm | 300/380/460mm | 0.1-8mm | ||
| Thickness | 4mm-60mm | 0.01mm-4mm | ||||
| Width | 300mm-1500mm | 500mm-1560mm | ||||
| Length | 1000-4000mm | 1000-6000mm | 1000-6000mm | 1000-8000mm | 1400mm,1800mm | |
| Outside Diameter | 10- 273mm | |||||
| Wall Thickness | 0.5-16mm | |||||
| Material | Pure Titanium and Titanium alloy | |||||

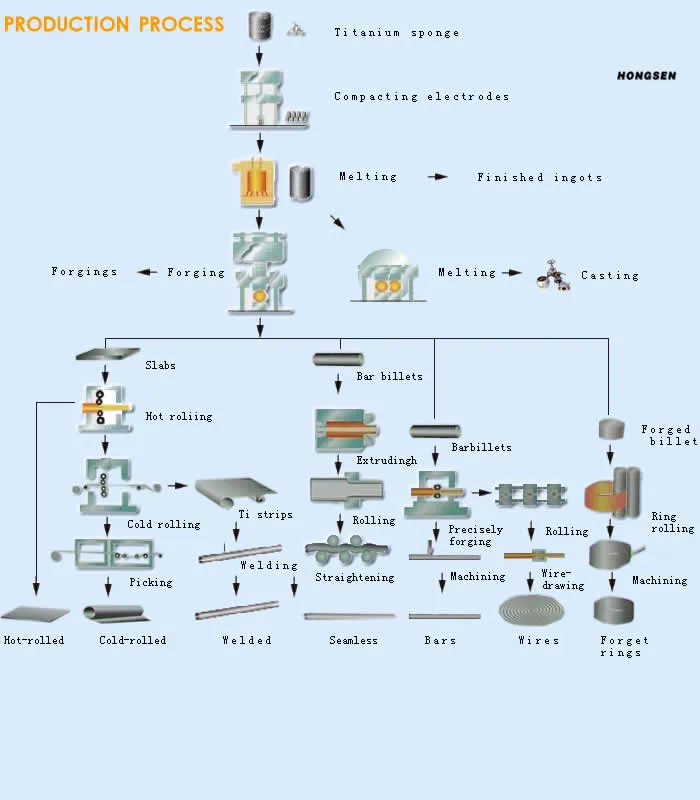

Titanium Production Process
Why choose us?
Why choose us?
- Engaged in import and export trade for twenty years
- Products are exported to more than 30 countries and regions at home and abroad
- Company with great credit and multiple sets of machinery and equipment
- Competitive price, strict quality control system and on-time delivery
- We have our own factory to facilitate our supply
Main product
1.Titanium household supplies, titanium camping/outdoor supplies, titanium sports equipment, titanium handicrafts
2.Titanium, zirconium, nickel and composite metal processing products
3.Equipment supporting assembly, pressure vessel, heat exchanger

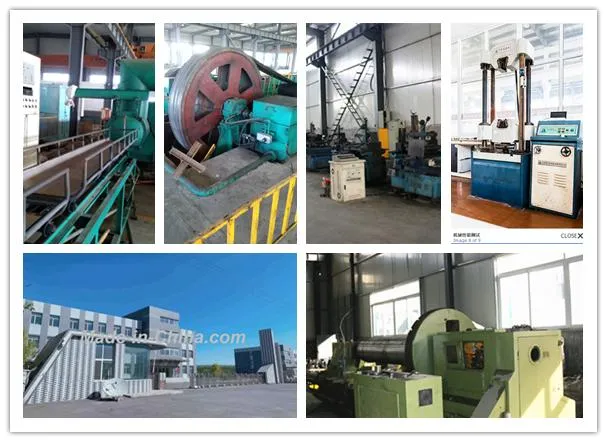

Machinery equipment

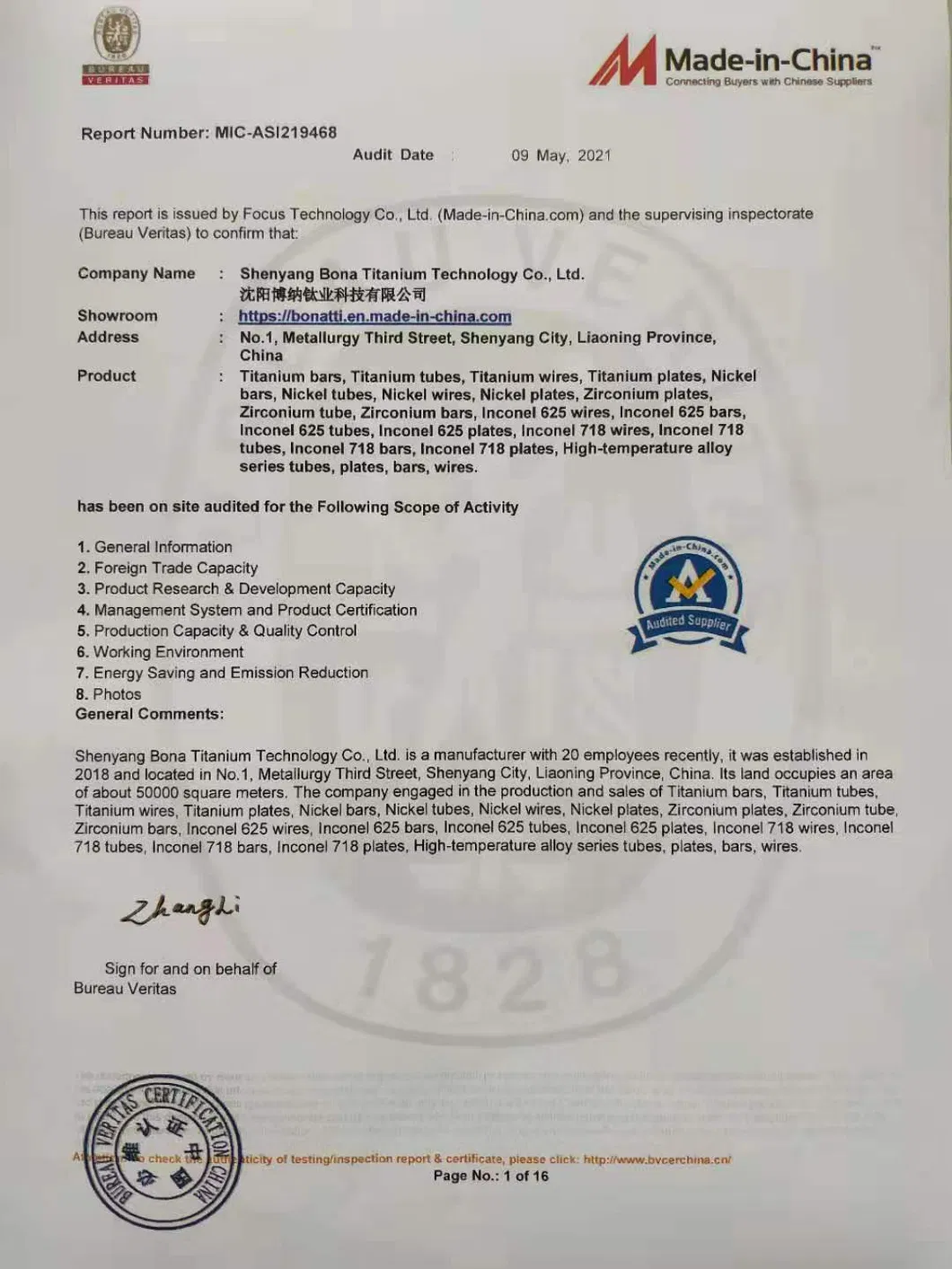

About us
Shenyang Bona Titanium Technology Co., Ltd is the producer of the industry.
All kinds of production equipment is complete.Ttitanium materials include titanium rod, bar, plate, sheet, heat exchanger tube, pipe, pipe fittings, fasteners, inconel, thread and silk screen, to the aerospace customers, automotive, electronics, precision manufacturing, weapon, Marine, shipbuilding, oil and gas, power plants and buildings.
We have a large stock of titanium bars, plates, lumps and rolled or forged flat materials.
We have our own factory in order to provide our customers with the best quality and price and to be able to deliver each order quickly.
We don't have a minimum order policy.
We have a large stock of titanium bars, plates, lumps and rolled or forged flat materials.
We have our own factory in order to provide our customers with the best quality and price and to be able to deliver each order quickly.
We don't have a minimum order policy.
