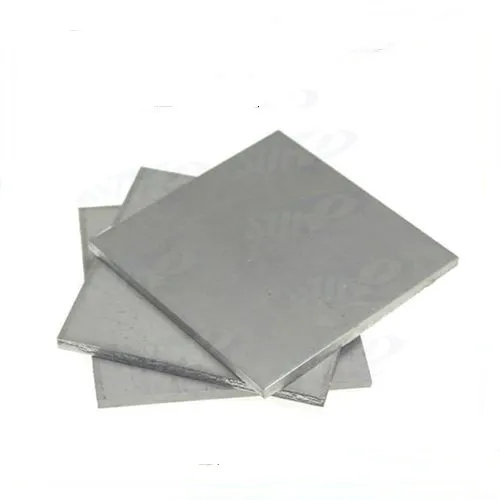

Gr5 /Tc4/Ti- 6al -4V Titanium Plate ASTM B265 in Stock
Production status of titanium alloy plate:Hot working condition (R)Cold working condition (Y)Annealing state (M)Titanium alloy plate manufacturing process:Hot forgingHot rolledCold rolledAnnealingPicklingApplications of Titanium Plates / Sheets: Fire wall, valve covers, bell housings, brake backing ......
Send Inquiry
Product Description
Production status of titanium alloy plate:
Hot working condition (R)
Cold working condition (Y)
Annealing state (M)
Titanium alloy plate manufacturing process:Cold working condition (Y)
Annealing state (M)
Hot forging
Hot rolled
Cold rolled
Annealing
Pickling
Applications of Titanium Plates / Sheets: Hot rolled
Cold rolled
Annealing
Pickling
Fire wall, valve covers, bell housings, brake backing plates, heat shields, rocker shaft stands, jewelry and so on.
Available Shape of Titanium Plates / Sheets: Round, Square
Chemical Composition
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Balance |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Balance |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Balance |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | Balance |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | / | / | / | Balance |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12-0.25 | / | / | Balance |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Balance |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 | Balance |
Tensile Strength
| Grade | Tensile Strength (Min) | Yield Strength (Min) | Elongation(%) | ||
| ksi | Mpa | ksi | Mpa | ||
| Gr1 | 35 | 240 | 20-45 | 138-310 | 24 |
| Gr2 | 50 | 345 | 40-65 | 275-450 | 20 |
| Gr3 | 65 | 450 | 55-80 | 380-550 | 18 |
| Gr4 | 80 | 550 | 70-95 | 483-655 | 15 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
| Gr7 | 50 | 345 | 40-60 | 275-450 | 20 |
| Gr9 | 90 | 620 | 70 | 438 | 15 |
| Gr12 | 70 | 438 | 50 | 345 | 18 |
Product Specification
| Bar | Plate | Sheet | Pipe | Ingot | Wire | |
| Diameter | 4-200mm | 2-268mm | 300/380/460mm | 0.1-3mm | ||
| Thickness | 4mm-60mm | 0.01mm-4mm | ||||
| Width | 300mm-1500mm | 500mm-1560mm | ||||
| Length | 1000-4000mm | 1000-6000mm | 1000-6000mm | 1000-8000mm | 1400mm,1800mm | |
Outer diameter | 10- 110mm | |||||
| Wall Thickness | 1-10mm | |||||
| Material | Titanium and Titanium alloy, Nickel and Nickel alloy | |||||

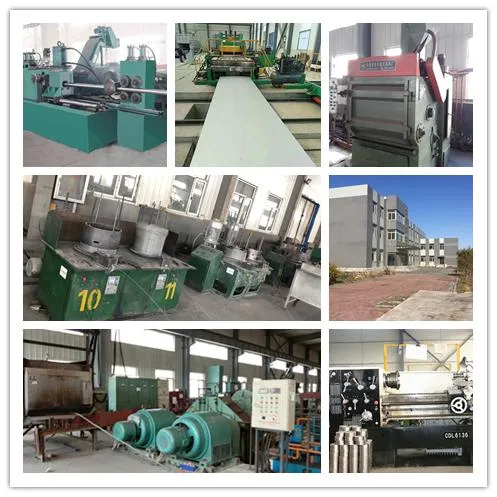

Product Picture
Why Choose us
- Engaged in import and export trade for twenty years
- Products are exported to more than 30 countries and regions at home and abroad
- Company with great credit and multiple sets of machinery and equipment
- Competitive price, strict quality control system and on-time delivery
- We have our own factory to facilitate our supply
About us
Shenyang Bona Titanium Technology Co., Ltd is the producer of the industry.
All kinds of production equipment is complete.Ttitanium materials include titanium rod, bar, plate, sheet, heat exchanger tube, pipe, pipe fittings, fasteners, inconel, thread and silk screen, to the aerospace customers, automotive, electronics, precision manufacturing, weapon, Marine, shipbuilding, oil and gas, power plants and buildings.
We have a large stock of titanium bars, plates, lumps and rolled or forged flat materials.
We have our own factory in order to provide our customers with the best quality and price and to be able to deliver each order quickly.
We don't have a minimum order policy.
All kinds of production equipment is complete.Ttitanium materials include titanium rod, bar, plate, sheet, heat exchanger tube, pipe, pipe fittings, fasteners, inconel, thread and silk screen, to the aerospace customers, automotive, electronics, precision manufacturing, weapon, Marine, shipbuilding, oil and gas, power plants and buildings.
We have a large stock of titanium bars, plates, lumps and rolled or forged flat materials.
We have our own factory in order to provide our customers with the best quality and price and to be able to deliver each order quickly.
We don't have a minimum order policy.
