Sacrificial Zinc Anode /High Potential Magnesium Anodes/Aluminum Anode for Cathodic Protection
We are professional manufacturer and has more than twenty years experience in anti corrosion industry. Our main products includesMagnesium casting & Extruded Anode, Magnesium Ribbon anodeAluminum AnodeZinc anode, Zinc Ribbon Anode,High Silicon Cast-Iron AnodeEpoxy Coated Steel Reinforcing BarAnt......
Send Inquiry
Product Description
We are professional manufacturer and has more than twenty years experience in anti corrosion industry. Our main products includes

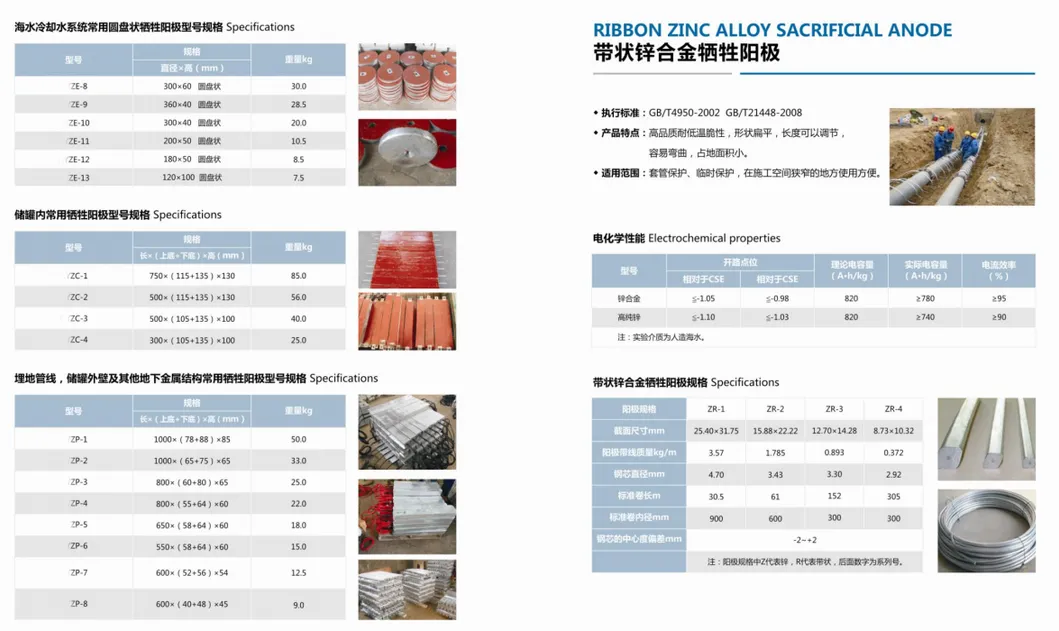

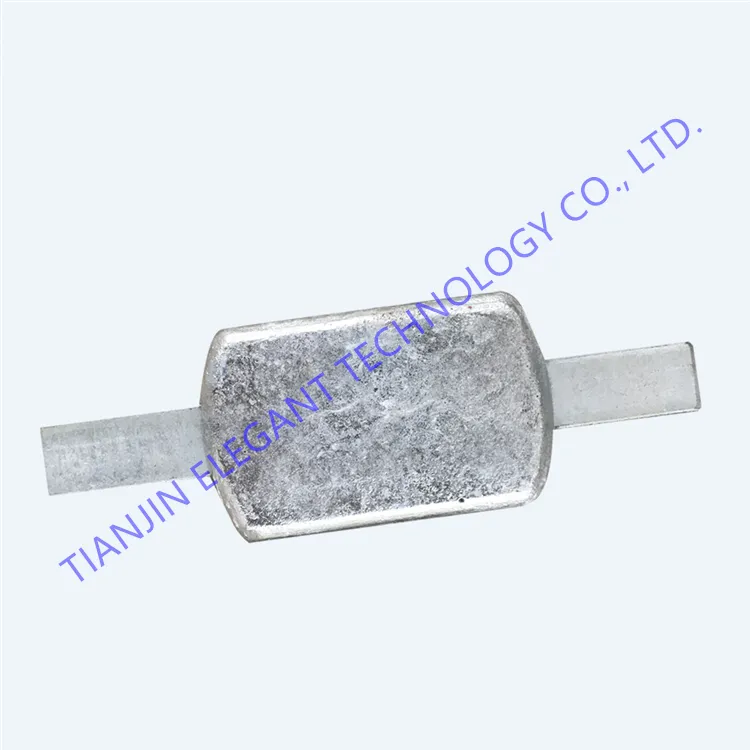

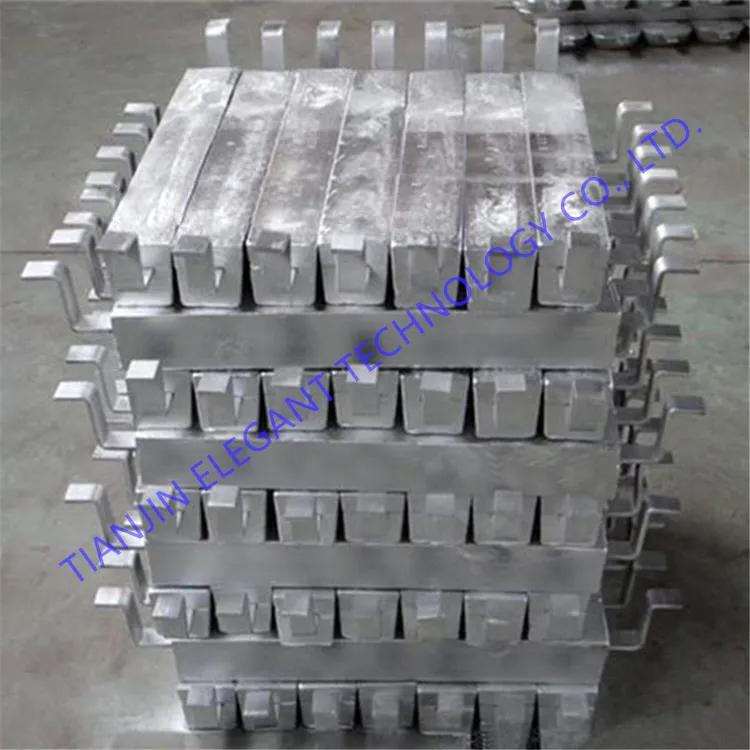

Zinc alloy sacrificial anode
The cathodic protection method of zinc anode is to connect a metal or alloy that is more likely to lose electrons to protect steel equipment. For example: the protection of steel gates, some use this method. It is a more active metal, such as zinc, which is attached to the steel gate. In this way, when galvanic corrosion occurs, the metal that is more active than iron is corroded, and iron is protected. Usually, a certain amount of zinc blocks are installed at the stern of the ship and below the waterline of the hull to prevent the hull from corroding. This is the method used.
Product features: low self-solubility, high current efficiency, wide application range.
At present, electrochemical protection is not only used to protect steel equipment in sea water or rivers, but also to prevent corrosion of cables, petroleum pipelines, underground equipment, and chemical equipment. Aluminum alloy sacrificial anodes are suitable for cathodic protection of metal corrosion protection for ships, mechanical equipment, marine engineering and seaport facilities in seawater media, pipelines, cables and other facilities in sea mud, and soil media with low resistivity.
Precautions for use: 1. Keep the surface clean. 2. When using in the soil, the soil resistivity should be less than 15 ohm·m, and it is recommended to use it with a special packing package
Sacrificial zinc anode chemical compositions :

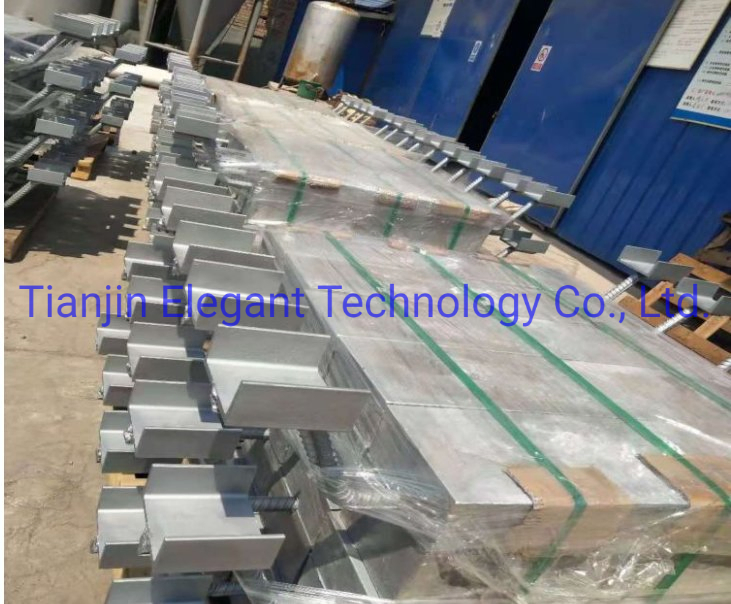

Aluminum alloy sacrificial anode
Product features: light weight, high current efficiency, and low cost.
Scope of application: suitable for ships, marine engineering, seaport facilities, steel pile wharfs, submarine pipelines and circulating water in power plants in seawater media System, crude oil storage tank, water deposits, etc.
Precautions for use: 1. Keep the surface clean. 2. Avoid collisions with steel structures. 3. It is not recommended to use in the soil.
Aluminum sacrificial anode chemical compositions:

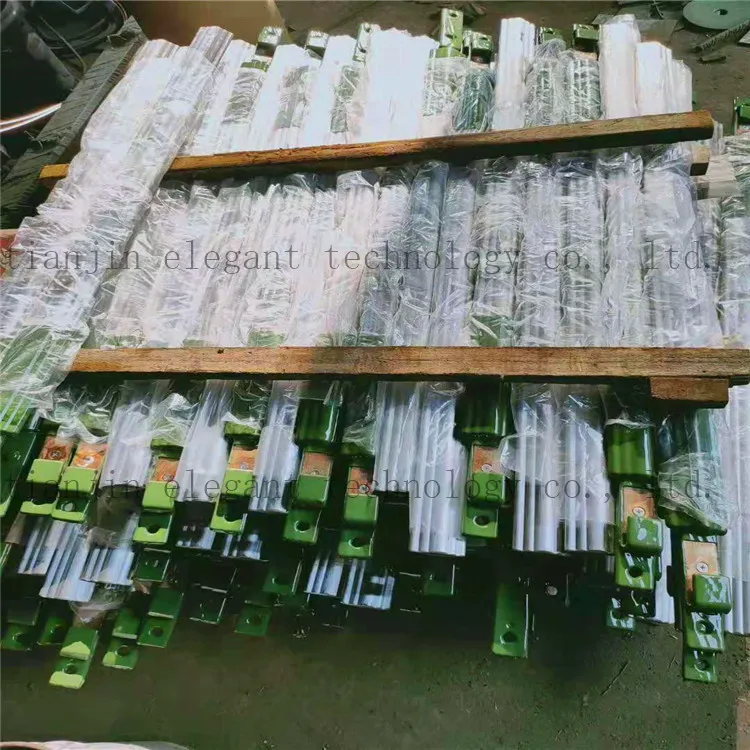

Sacrificial High Potential Sacrificial Magnesium Anode

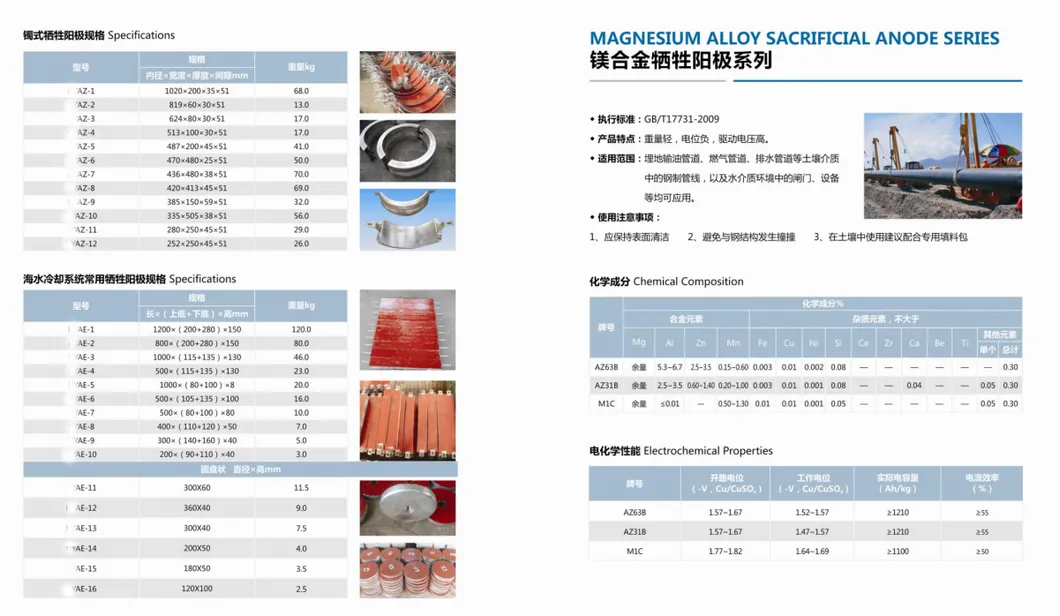

Sacrificial Magnesium Anode Specifications:
High Potential HP Magnesium anode are made from high-purity magnesium, they could produce a higher driving voltage than conventional magnesium anodes, so high potential magnesium anodes are suited for structures buried in soils with resistivities in excess of 2,000 ohm/cm.
We adopt special technology, the anodes have superior electrochemical properties, in practical experience, the actual measured driving potential is between -1.8V to -1.85V, thus provide most powerful protection to the targeted structure. The anodes are consumpted uniformly, thereof the anodes have a longer working life.
Our magnesium anode all manufactured and tested according to latest international standards, such as ASTM B843 and ASTM G97,It's available from both M1C( high Potential)or AZ63B(standard Potential)magnesium anode.
Sacrificial Magnesium Anode Application :
High Potential HP Magnesium anode fight corrosion effectively and economically, and are commonly used in marine environments, soil environment,etc..They protect a variety of steel structures in salt, brackish and fresh water, including: Buried Oil gas Pipelines, Storage tanks, Boats, Ballast tanks, Bulkheads, Pilings, Heat exchangers, etc.
Magnesium anodes corrode much more easily than the materials they are protecting, drawing the corrosion away from equipment.
Sacrificial Magnesium Anode chemical compositions:

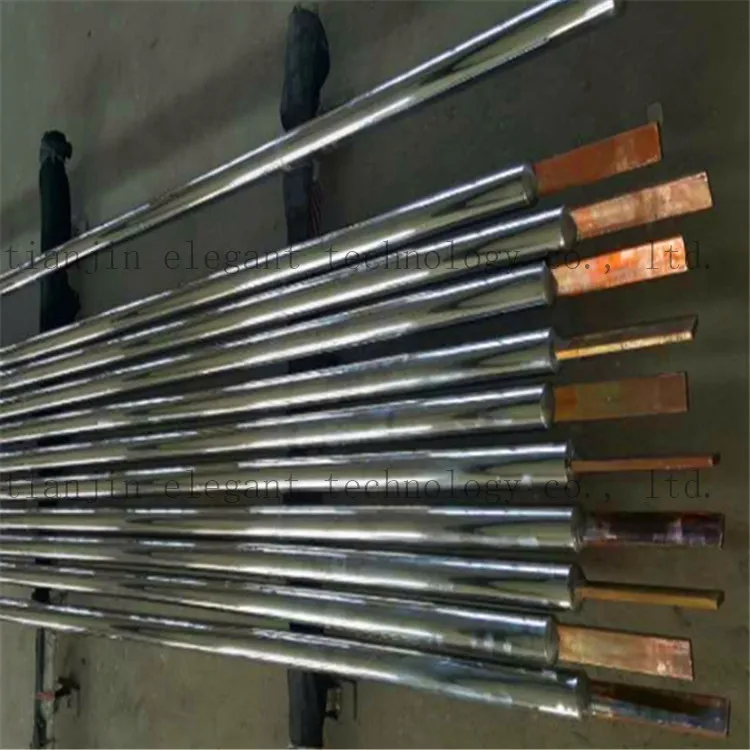

Lead tin alloy rod anode/ lead stibium antimony alloy anode/ Pb Sn Sb alloy anode/electrode Description :
Pb-tin alloy is used for the anode to form an insoluble anode. The replenishment of chromium in the chromium plating process is achieved by directly adding chromate to the plating solution. Unlike zinc plating, which requires anode dissolution to provide zinc ions, chromium plating does not require anode dissolution, which means that chromium plating requires insoluble anodes. Lead-tin alloy is used, and some antimony is sometimes added.
Lead tin alloy rod anode/ lead stibium antimony alloy anode/ Pb Sn Sb alloy anode/electrode application: Chrome plating; Electro-polishing
Lead tin alloy rod anode/ lead stibium antimony alloy anode/ Pb Sn Sb alloy anode/electrode features:
1. Dense internal structure, no cold barrier, shrinkage cavity, shrinkage porosity.
2. It has been extruded many times by special calendering equipment, which has high strength, is not easy to bend and deform, and at the same time improves the conductivity of the anode.
3. Due to the use of rolling production technology and the increase of tin content, its corrosion resistance has been improved, the surface is not easy to generate lead chromate and passivation, and the anode slag is less, making the plating solution cleaner.
4. The alloy composition is uniform and there is no segregation phenomenon, and the conductivity is uniform, which improves the uniformity of the chromium plating layer thickness.
5. The connection between the copper hook and the lead-tin rod is coated with glue, so the copper hook will not be corroded.
6. Long use life.

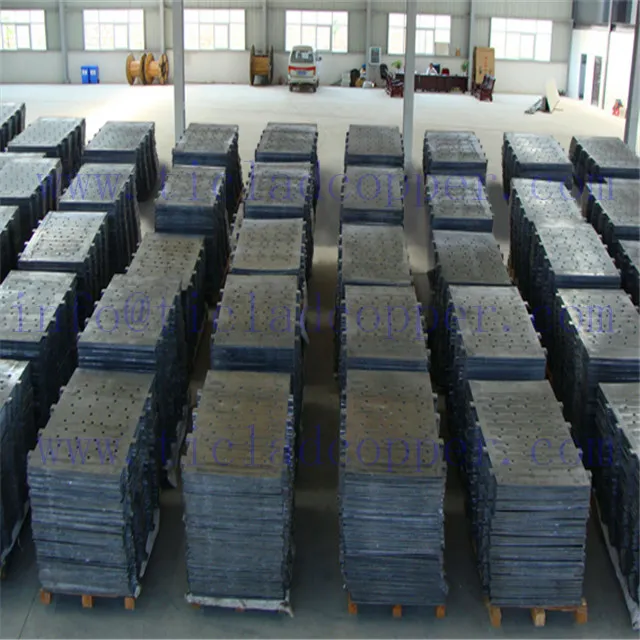

Lead anode plate for electrowinning/electrorefining/electrolysis
Lead anode plate for copper electrowinning/electrorefining/electrolysis
Lead anode plate for zinc electrowinning/electrorefining/electrolysis
Lead anode plate for manganese electrowinning/ electrorefining/electrolysis
Lead anode plate for nickel electrowinning/electrorefining/electrolysis
Lead anode plate for Chromium electrowinning/electrorefining/electrolysis
Pb alloy anode is widely used in Zinc, Copper, Nickel, Cobalt and Manganese EW industry for its inert property low production cost .
Pb alloy rolling plate, with uniform crystal structure, is better in anti-corrosion and mechanical performance stability.
The hanger bar which is certain mm thickness Pb cladding around Sn electro-plating on copper bar, has better anti-corrosion to acid mist during electro-winning.
Pb plate connects to hanger bar through two-side welding with Pb cladding, or plate plug-in welding. we also have the Ti-MMO anode. It has better mechanical strength, lower solubleness in the acid, lower resistance, high current with no deformation, maintainability and long-life. It's used to apply in the harsh working environment.
Lead anode plate advantages
High mechanical strength against warpage and creep(form stability), no casting defects and porosity.
Low oxygen over potential for oxygen evolution.
Quick and stable formation of hard, compact, and adherent protective corrosion layer(conditioning).
High corrosion resistance, higher resistance to initial conditioning, long service life..
Minimized producing cost.
Reduction in cell voltage, increase in current efficiency.
Production of high quality lead free metal cathode product.
No anode or cell cleaning required.
Elimination of cobalt addition required in Zn/Cu/Co/Mn electro-winning.
After assembly, flat smoothing blank surface, vertical to horizontal level, blank flatness error <= 0.2mm.
Lead anode plate applications
Permanent Stainless Steel/titanium Cathode Plates
Elegant is the most professional company in China to provide our clients with top quality Cathodes and Anodes for nonferrous metallurgy. In the past years, Elegant stainless steel/ titanium cathodes are widely used in domestic and overseas Copper&Nickel electrowinning plant for its excellent performance as below:
1. The connection area between Copper and S.S is considerable, thus contribute to a less lose of electric power.
2. High mechanical strength design of hanger bar to prevent scratching, sinking mark and bending.
3. Hanger bar designed with good heat resistance to avoid deformation or degenerate, hanger bar can resistance high temperature up to 700°C cause by short circuit.
4. The laser welding between S.S blank/ Titanium plate and hanger bar can help avoiding the welding gap, thus can maximum prevent welding corrosion. The average service lifetime of cathode is 10-15 years.
5. By powerful extrusion, the edge strip is deformation free with long lifetime and easy for maintenance.
6. The performance of edge clip bar was stable which can decrease the cost.
Cathode is widely used in Zinc, Copper, Nickel, Cobalt and Manganese EW/ER industry .Copper can be easily deposit on the stainless steel cathode surface and be stripped by auto-stripping machine. The use of stainless steel cathode can save a lot of time and human cost compared to starting sheet. It's an obbligato part in large scale and modernization Copper electro-refinning and Copper electro-winning plant.
Material
Blank:
material - 316L stainless steel plate, Gr 1 or Gr 2 Titanium plate;
Hanger bar:
Stainless steel cladding around copper bar(Cu-SS)
Copper electro-plating stainless steel bar(SS-Cu)
Triple layer (CS-Cu-SS)
Al cladding Copper ingot, welding to Al bar
Titanium clad copper bar (Ti- Cu)
Edge strip:
PP by mechanical process or extrusion
Advantages
High strength and anti-corrosion hanger bar
Advanced edge strip with round bar for fastening
Special surface polishing treatment to form a passive film
90° "v" shape groove at bottom of blank, Copper cathode
can be more easily stripped in the bottom
10~15 years service lifetime of blank, 1.5year of edge
strip (If Cl- < 40mg/L)
Double side full welding technology
Welding
Perfect welding technology (Double-side full laser welding) is used to connect stainless steel blank / Titanium plate with hanger bar. It does not use flux to connect, which is successful to avoid the weld seam defects and maximize preventing corrosion.
A hanger bar for a cathode plate and a method of producing a cathode for electrolytic recovery of metal. The hanger bar comprises a support element which is preferably stainless steel and hollow. An electrically conductive metal cladding is affixed the stainless steel bar by any appropriate mechanism, eg interference fit, welding, chemical or mechanical fastening or coextrusion or roll forming. Affixing the cladding to the stainless steel support element has significant advantages over conventional electroplating techniques including that a more precise engineering specification can be applied to the cladding thickness. This is important to maintain vertical alignment of the cathode plate in the electrolytic cell.Permanent Stainless Steel/titanium Cathode Plates
- Magnesium casting & Extruded Anode, Magnesium Ribbon anode
- Aluminum Anode
- Zinc anode, Zinc Ribbon Anode,
- High Silicon Cast-Iron Anode
- Epoxy Coated Steel Reinforcing Bar
- Ant-corrosion Tapes
Zinc alloy sacrificial anode
The cathodic protection method of zinc anode is to connect a metal or alloy that is more likely to lose electrons to protect steel equipment. For example: the protection of steel gates, some use this method. It is a more active metal, such as zinc, which is attached to the steel gate. In this way, when galvanic corrosion occurs, the metal that is more active than iron is corroded, and iron is protected. Usually, a certain amount of zinc blocks are installed at the stern of the ship and below the waterline of the hull to prevent the hull from corroding. This is the method used.
Product features: low self-solubility, high current efficiency, wide application range.
At present, electrochemical protection is not only used to protect steel equipment in sea water or rivers, but also to prevent corrosion of cables, petroleum pipelines, underground equipment, and chemical equipment. Aluminum alloy sacrificial anodes are suitable for cathodic protection of metal corrosion protection for ships, mechanical equipment, marine engineering and seaport facilities in seawater media, pipelines, cables and other facilities in sea mud, and soil media with low resistivity.
Precautions for use: 1. Keep the surface clean. 2. When using in the soil, the soil resistivity should be less than 15 ohm·m, and it is recommended to use it with a special packing package
Sacrificial zinc anode chemical compositions :
| element | Al | Cd | others | Zn | |||
| Fe | Cu | Pb | Si | ||||
| % | 0.3-0.6 | 0.05-0.12 | ≤ 0.005 | ≤ 0.005 | ≤ 0.006 | ≤ 0.125 | The balance |
Aluminum alloy sacrificial anode
Product features: light weight, high current efficiency, and low cost.
Scope of application: suitable for ships, marine engineering, seaport facilities, steel pile wharfs, submarine pipelines and circulating water in power plants in seawater media System, crude oil storage tank, water deposits, etc.
Precautions for use: 1. Keep the surface clean. 2. Avoid collisions with steel structures. 3. It is not recommended to use in the soil.
Aluminum sacrificial anode chemical compositions:
| Element | Zn | In | Cd | Sn | Mg | Si | Ti | others | Al | ||
| Si | Fe | Cu | |||||||||
| Al-Zn-In-Cd | 2.5-4.5 | 0.018-0.050 | 0.005-0.02 | - | - | - | - | ≤0.10 | ≤0.15 | ≤0.01 | The balance |
| Al-Zn-In -Sn | 2.2-5.2 | 0.020-0.045 | - | 0.018-0.035 | - | - | - | ≤0.10 | ≤0.15 | ≤0.01 | The balance |
| Al-Zn-In -Si | 5.5-7.0 | 0.025-0.035 | - | - | - | 0.10-0.15 | - | ≤0.10 | ≤0.15 | ≤0.01 | The balance |
| Al-Zn-In -Sn-Mg | 2.5-4.0 | 0.020-0.050 | - | 0.025-0.075 | 0.50-1.00 | - | - | ≤0.10 | ≤0.15 | ≤0.01 | The balance |
| Al-Zn-In -Mg-Ti | 4.0-7.0 | 0.020-0.050 | - | - | 0.50-1.50 | - | 0.01-0.08 | ≤0.10 | ≤0.15 | ≤0.01 | The balance |
Sacrificial High Potential Sacrificial Magnesium Anode
Sacrificial Magnesium Anode Specifications:
High Potential HP Magnesium anode are made from high-purity magnesium, they could produce a higher driving voltage than conventional magnesium anodes, so high potential magnesium anodes are suited for structures buried in soils with resistivities in excess of 2,000 ohm/cm.
We adopt special technology, the anodes have superior electrochemical properties, in practical experience, the actual measured driving potential is between -1.8V to -1.85V, thus provide most powerful protection to the targeted structure. The anodes are consumpted uniformly, thereof the anodes have a longer working life.
Our magnesium anode all manufactured and tested according to latest international standards, such as ASTM B843 and ASTM G97,It's available from both M1C( high Potential)or AZ63B(standard Potential)magnesium anode.
Sacrificial Magnesium Anode Application :
High Potential HP Magnesium anode fight corrosion effectively and economically, and are commonly used in marine environments, soil environment,etc..They protect a variety of steel structures in salt, brackish and fresh water, including: Buried Oil gas Pipelines, Storage tanks, Boats, Ballast tanks, Bulkheads, Pilings, Heat exchangers, etc.
Magnesium anodes corrode much more easily than the materials they are protecting, drawing the corrosion away from equipment.
Sacrificial Magnesium Anode chemical compositions:
| Grade | (%) | ||||||||
| element | Others,≤ | ||||||||
| Al | Zn | Mn | Mg | Fe | Cu | Ni | Si | Ca | |
| MGAZ63B | 5.3-6.7 | 2.5-3.5 | 0.15-0.60 | balance | 0.003 | 0.01 | 0.002 | 0.08 | --- |
| MGAZ31B | 2.5-3.5 | 0.60-1.40 | 0.20-1.00 | balance | 0.003 | 0.01 | 0.001 | 0.08 | 0.04 |
| MGM1C | ≤0.01 | --- | 0.50-1.30 | balance | 0.01 | 0.01 | 0.001 | 0.05 | --- |
| MG | ≤0.02 | ≤0.03 | ≤0.01 | ≤99.9 | 0.005 | 0.004 | 0.001 | 0.01 | - |
Lead tin alloy rod anode/ lead stibium antimony alloy anode/ Pb Sn Sb alloy anode/electrode Description :
Pb-tin alloy is used for the anode to form an insoluble anode. The replenishment of chromium in the chromium plating process is achieved by directly adding chromate to the plating solution. Unlike zinc plating, which requires anode dissolution to provide zinc ions, chromium plating does not require anode dissolution, which means that chromium plating requires insoluble anodes. Lead-tin alloy is used, and some antimony is sometimes added.
Lead tin alloy rod anode/ lead stibium antimony alloy anode/ Pb Sn Sb alloy anode/electrode application: Chrome plating; Electro-polishing
Lead tin alloy rod anode/ lead stibium antimony alloy anode/ Pb Sn Sb alloy anode/electrode features:
1. Dense internal structure, no cold barrier, shrinkage cavity, shrinkage porosity.
2. It has been extruded many times by special calendering equipment, which has high strength, is not easy to bend and deform, and at the same time improves the conductivity of the anode.
3. Due to the use of rolling production technology and the increase of tin content, its corrosion resistance has been improved, the surface is not easy to generate lead chromate and passivation, and the anode slag is less, making the plating solution cleaner.
4. The alloy composition is uniform and there is no segregation phenomenon, and the conductivity is uniform, which improves the uniformity of the chromium plating layer thickness.
5. The connection between the copper hook and the lead-tin rod is coated with glue, so the copper hook will not be corroded.
6. Long use life.
Lead anode plate for electrowinning/electrorefining/electrolysis
Lead anode plate for copper electrowinning/electrorefining/electrolysis
Lead anode plate for zinc electrowinning/electrorefining/electrolysis
Lead anode plate for manganese electrowinning/ electrorefining/electrolysis
Lead anode plate for nickel electrowinning/electrorefining/electrolysis
Lead anode plate for Chromium electrowinning/electrorefining/electrolysis
Pb alloy anode is widely used in Zinc, Copper, Nickel, Cobalt and Manganese EW industry for its inert property low production cost .
Pb alloy rolling plate, with uniform crystal structure, is better in anti-corrosion and mechanical performance stability.
The hanger bar which is certain mm thickness Pb cladding around Sn electro-plating on copper bar, has better anti-corrosion to acid mist during electro-winning.
Pb plate connects to hanger bar through two-side welding with Pb cladding, or plate plug-in welding. we also have the Ti-MMO anode. It has better mechanical strength, lower solubleness in the acid, lower resistance, high current with no deformation, maintainability and long-life. It's used to apply in the harsh working environment.
Lead anode plate advantages
High mechanical strength against warpage and creep(form stability), no casting defects and porosity.
Low oxygen over potential for oxygen evolution.
Quick and stable formation of hard, compact, and adherent protective corrosion layer(conditioning).
High corrosion resistance, higher resistance to initial conditioning, long service life..
Minimized producing cost.
Reduction in cell voltage, increase in current efficiency.
Production of high quality lead free metal cathode product.
No anode or cell cleaning required.
Elimination of cobalt addition required in Zn/Cu/Co/Mn electro-winning.
After assembly, flat smoothing blank surface, vertical to horizontal level, blank flatness error <= 0.2mm.
Lead anode plate applications
| Cu-EW | Zn-EW | Ni-EW | Cr-EW | Mn-EW |
| Pb-Ca-Sn Rolling Anode | Pb-Ca-Ag Rolling Anode | Pure Pb Rolling Anode | Pb-Sb Cast Anode | Pure Pb Cast Anode |
| Pb-Sb-(As,Cu,S) Cast Anode | Pb-Ag Rolling Anode | Pb-Sr-Sn Cast Anode | Pb-Ca-Sn Rolling Anode | Pb-Ag-(As,Cu) Cast Anode |
| Pb-Sb Cast Anode | Pb-Ca-Ag Cast Anode | Pb-Sb Cast Anode | Pb-Ag Cast Anode | Pb-Sb-Cu Cast Anode |
| Pb-Ca-Sn-Ag Rolling Anode | Pb-Ag Cast Anode | Pb-Ca-Sn Rolling Anode | Ti-MMO Mesh Anode | |
| Ti-MMO Mesh Anode | Ti-MMO Mesh Anode |
Permanent Stainless Steel/titanium Cathode Plates
Elegant is the most professional company in China to provide our clients with top quality Cathodes and Anodes for nonferrous metallurgy. In the past years, Elegant stainless steel/ titanium cathodes are widely used in domestic and overseas Copper&Nickel electrowinning plant for its excellent performance as below:
1. The connection area between Copper and S.S is considerable, thus contribute to a less lose of electric power.
2. High mechanical strength design of hanger bar to prevent scratching, sinking mark and bending.
3. Hanger bar designed with good heat resistance to avoid deformation or degenerate, hanger bar can resistance high temperature up to 700°C cause by short circuit.
4. The laser welding between S.S blank/ Titanium plate and hanger bar can help avoiding the welding gap, thus can maximum prevent welding corrosion. The average service lifetime of cathode is 10-15 years.
5. By powerful extrusion, the edge strip is deformation free with long lifetime and easy for maintenance.
6. The performance of edge clip bar was stable which can decrease the cost.
Cathode is widely used in Zinc, Copper, Nickel, Cobalt and Manganese EW/ER industry .Copper can be easily deposit on the stainless steel cathode surface and be stripped by auto-stripping machine. The use of stainless steel cathode can save a lot of time and human cost compared to starting sheet. It's an obbligato part in large scale and modernization Copper electro-refinning and Copper electro-winning plant.
Material
Blank:
material - 316L stainless steel plate, Gr 1 or Gr 2 Titanium plate;
Hanger bar:
Stainless steel cladding around copper bar(Cu-SS)
Copper electro-plating stainless steel bar(SS-Cu)
Triple layer (CS-Cu-SS)
Al cladding Copper ingot, welding to Al bar
Titanium clad copper bar (Ti- Cu)
Edge strip:
PP by mechanical process or extrusion
Advantages
High strength and anti-corrosion hanger bar
Advanced edge strip with round bar for fastening
Special surface polishing treatment to form a passive film
90° "v" shape groove at bottom of blank, Copper cathode
can be more easily stripped in the bottom
10~15 years service lifetime of blank, 1.5year of edge
strip (If Cl- < 40mg/L)
Double side full welding technology
Welding
Perfect welding technology (Double-side full laser welding) is used to connect stainless steel blank / Titanium plate with hanger bar. It does not use flux to connect, which is successful to avoid the weld seam defects and maximize preventing corrosion.
A hanger bar for a cathode plate and a method of producing a cathode for electrolytic recovery of metal. The hanger bar comprises a support element which is preferably stainless steel and hollow. An electrically conductive metal cladding is affixed the stainless steel bar by any appropriate mechanism, eg interference fit, welding, chemical or mechanical fastening or coextrusion or roll forming. Affixing the cladding to the stainless steel support element has significant advantages over conventional electroplating techniques including that a more precise engineering specification can be applied to the cladding thickness. This is important to maintain vertical alignment of the cathode plate in the electrolytic cell.Permanent Stainless Steel/titanium Cathode Plates
Related Category
Steel & Products
Steel Pipe & Tube
Steel Coil & Strip
Steel Sheet & Plate
Stainless Steel
Aluminum
Non-ferrous Metal & Products
Copper
Alloy
Tungsten
Titanium
Iron & Products
Send Inquiry
Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.
