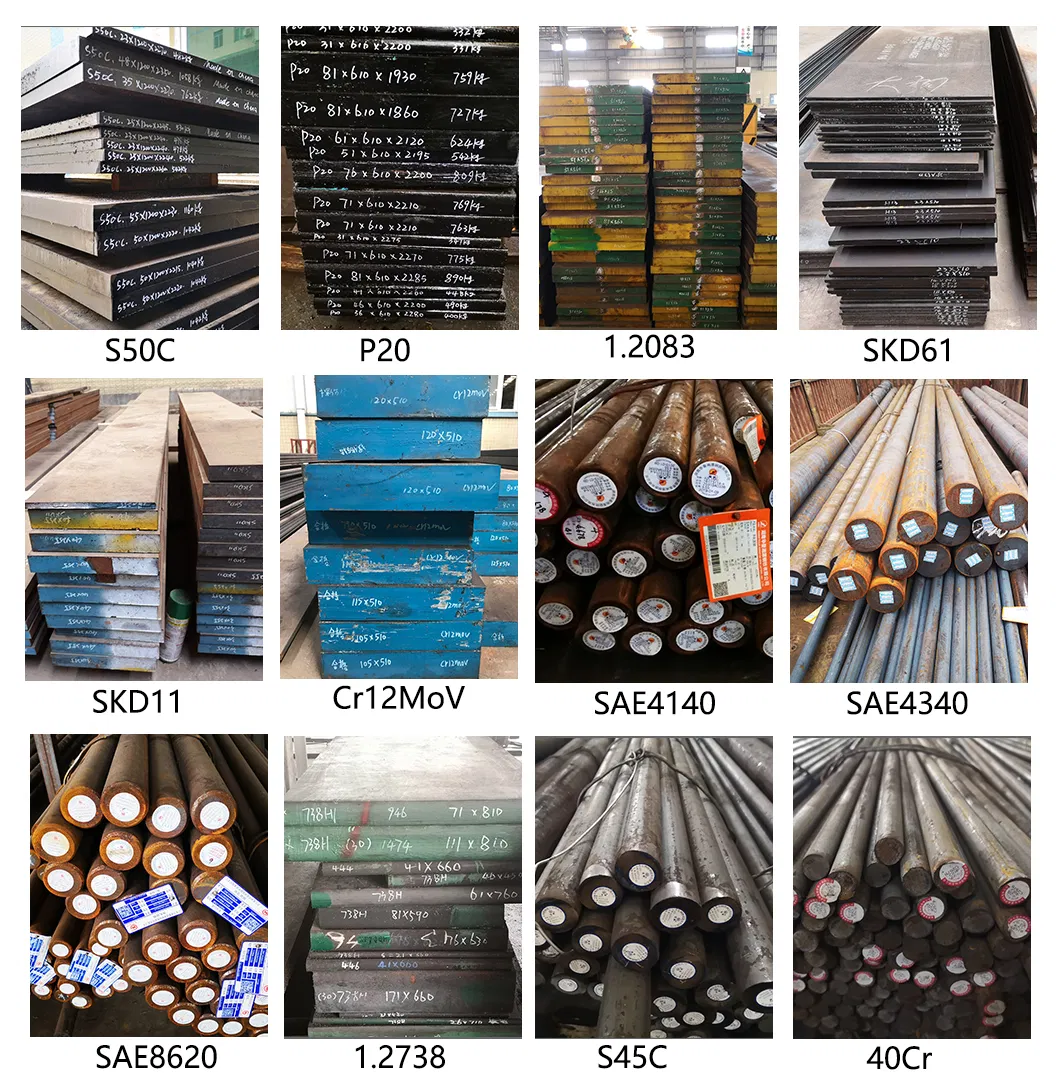

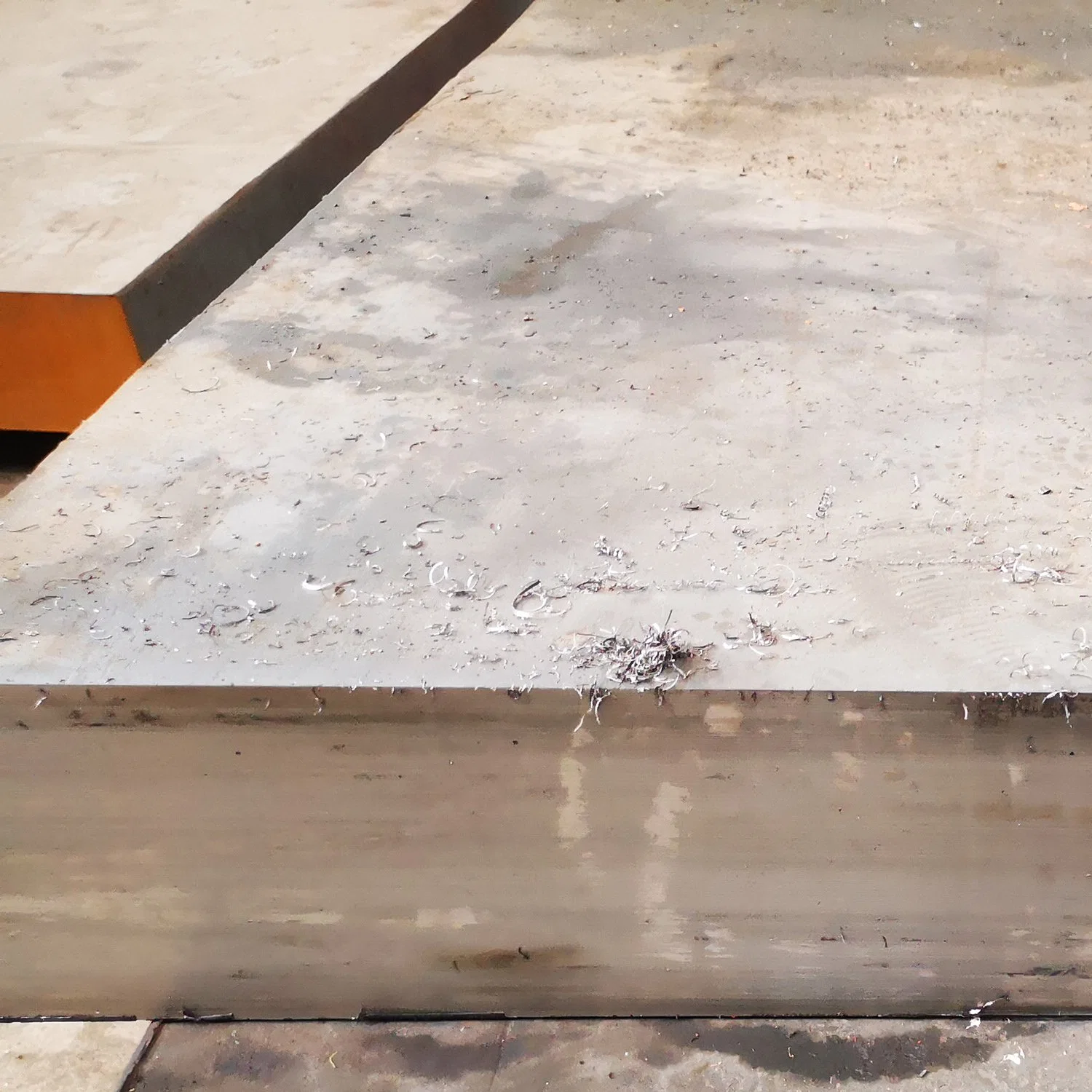

High Cr content of 1.2316 Mould Steel Plate Flat bar
High Cr content of 1.2316 S136 Mould Steel Plate & Flat barFeatures:A) Preliminary hard conditioning die mould steel;B) Excellent corrosion resistance and have abrasion resistance and toughness;C) Material hardness is uniform, have a superior polishing performance;Application:A) Highly stressed ......
Send Inquiry
Product Description
High Cr content of 1.2316 S136 Mould Steel Plate & Flat bar
Features:
A) Preliminary hard conditioning die mould steel;
B) Excellent corrosion resistance and have abrasion resistance and toughness;
C) Material hardness is uniform, have a superior polishing performance;
Application:
A) Highly stressed cutting and punching tools for thin sheets;
B) Stone processing tools and knives for paper and plastics,shear knives;
C) Low content of impurity content,stable production period;
Chemical composition (%)
Hardness: prehardened 32-35HRC
Heat Treatment:
Annealing:810 - 830 °C
Hardness after annealing:Max.230 HB
Stress relieving:Approx.650 °C
Hot forming:1050 - 850 °C
Hardening:970 - 990 °C
Quenching media:Oil, Vacuum
Hardness after quenching:52 - 56 HRC
Hardness after tempering:
Warehouse
Features:
A) Preliminary hard conditioning die mould steel;
B) Excellent corrosion resistance and have abrasion resistance and toughness;
C) Material hardness is uniform, have a superior polishing performance;
Application:
A) Highly stressed cutting and punching tools for thin sheets;
B) Stone processing tools and knives for paper and plastics,shear knives;
C) Low content of impurity content,stable production period;
Chemical composition (%)
| C | Si | Mn | Cr | P | S | Mo | Ni |
| 0.33-0.43 | ≤1.00 | ≤1.00 | 6.00-17.0 | 15.5-17 | ≤0.02 | 1.0-1.2 | 0.3 |
Hardness: prehardened 32-35HRC
Heat Treatment:
Annealing:810 - 830 °C
Hardness after annealing:Max.230 HB
Stress relieving:Approx.650 °C
Hot forming:1050 - 850 °C
Hardening:970 - 990 °C
Quenching media:Oil, Vacuum
Hardness after quenching:52 - 56 HRC
Hardness after tempering:
| Tempering °C | 100 | 200 | 300 | 400 |
| HRC | 54 | 52 | 52 | 52 |

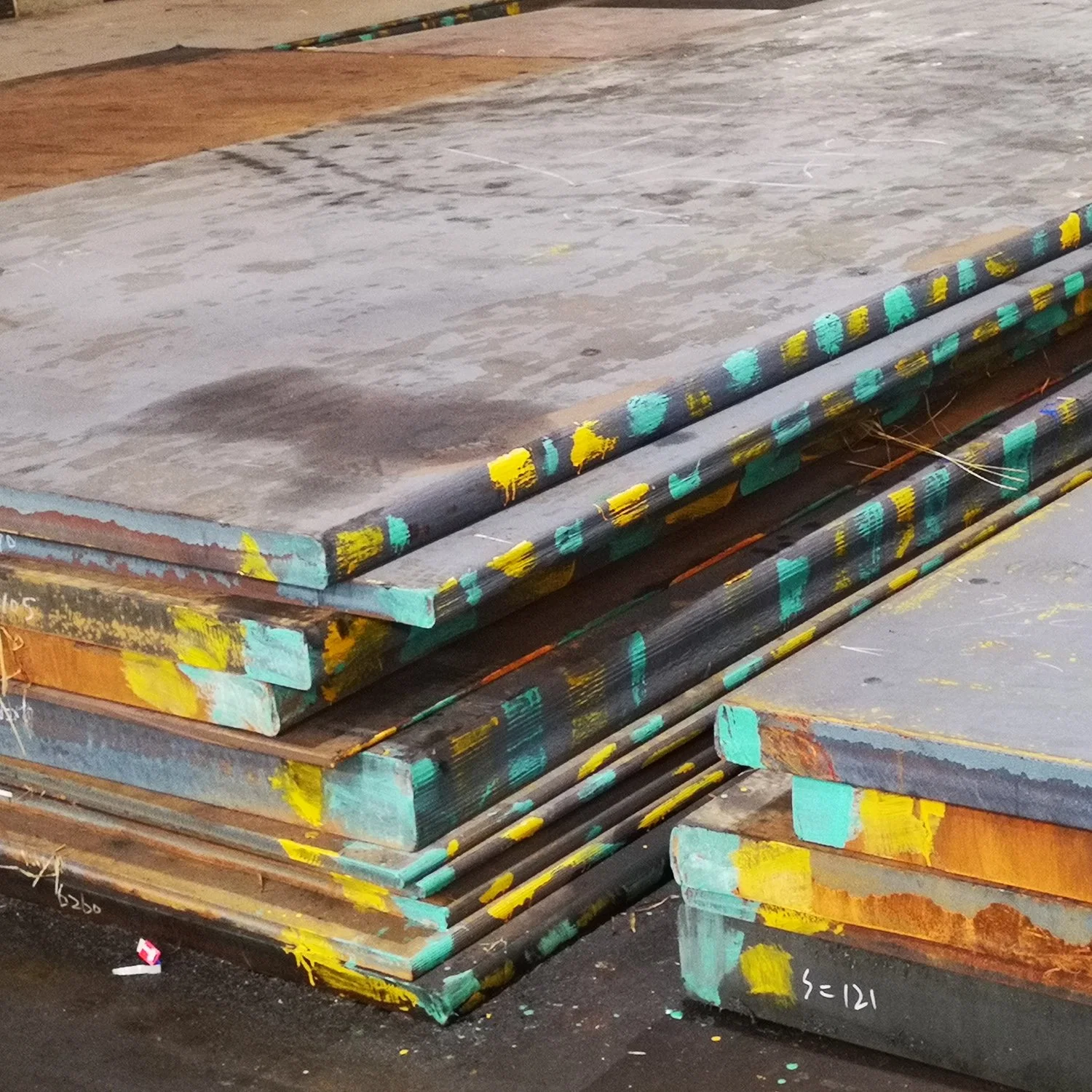

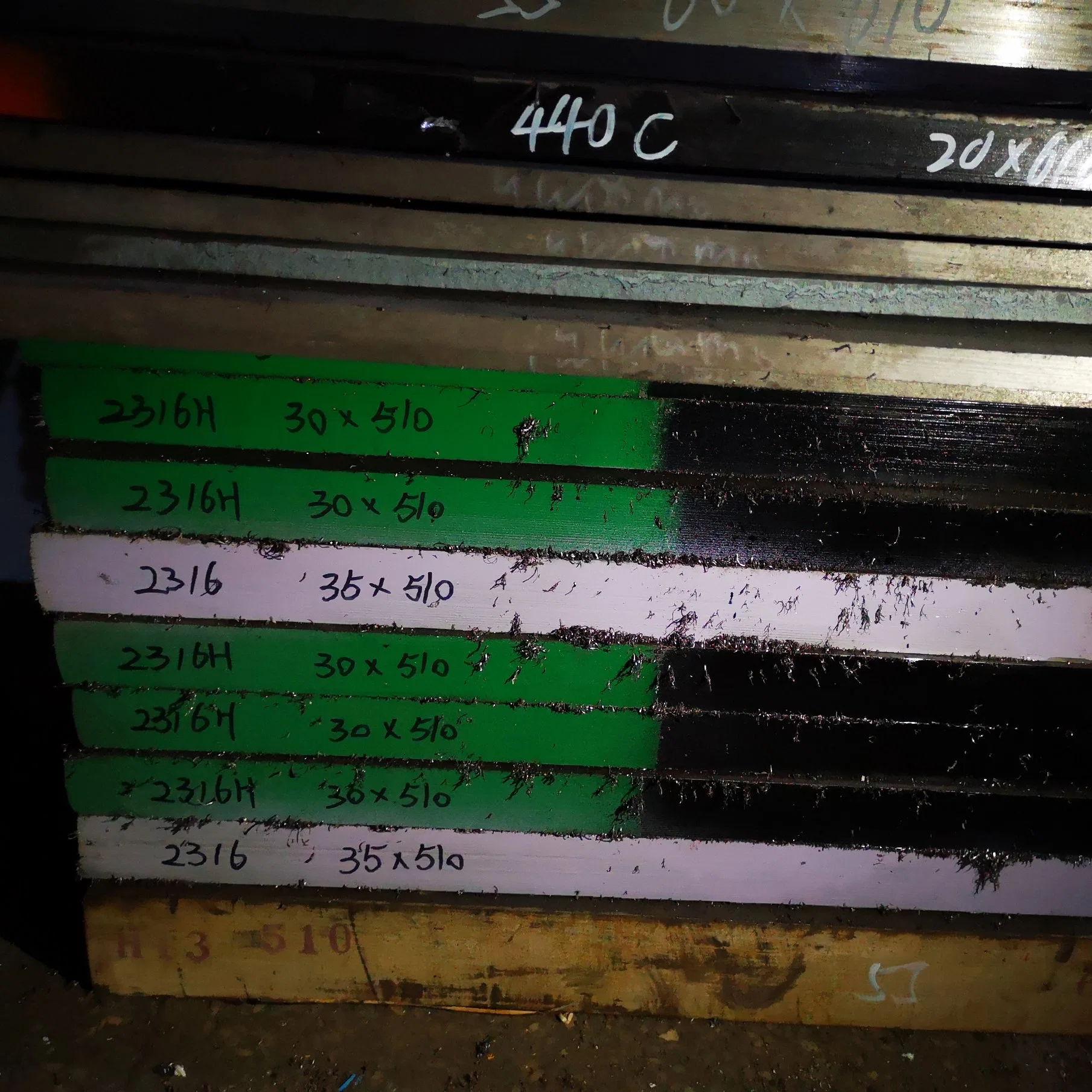

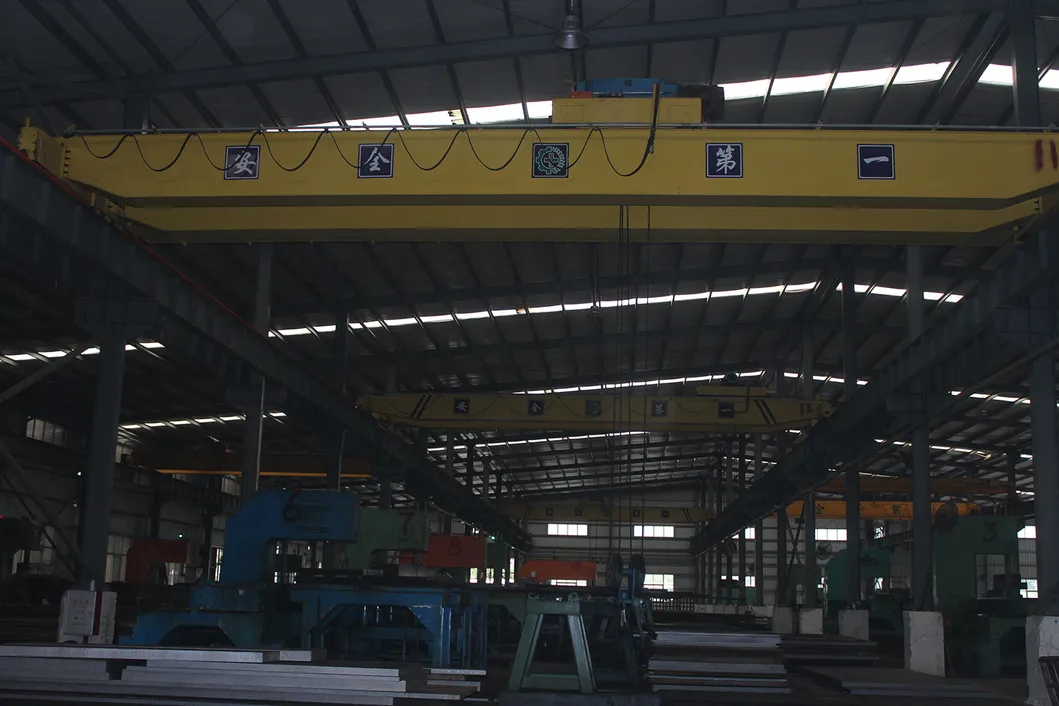

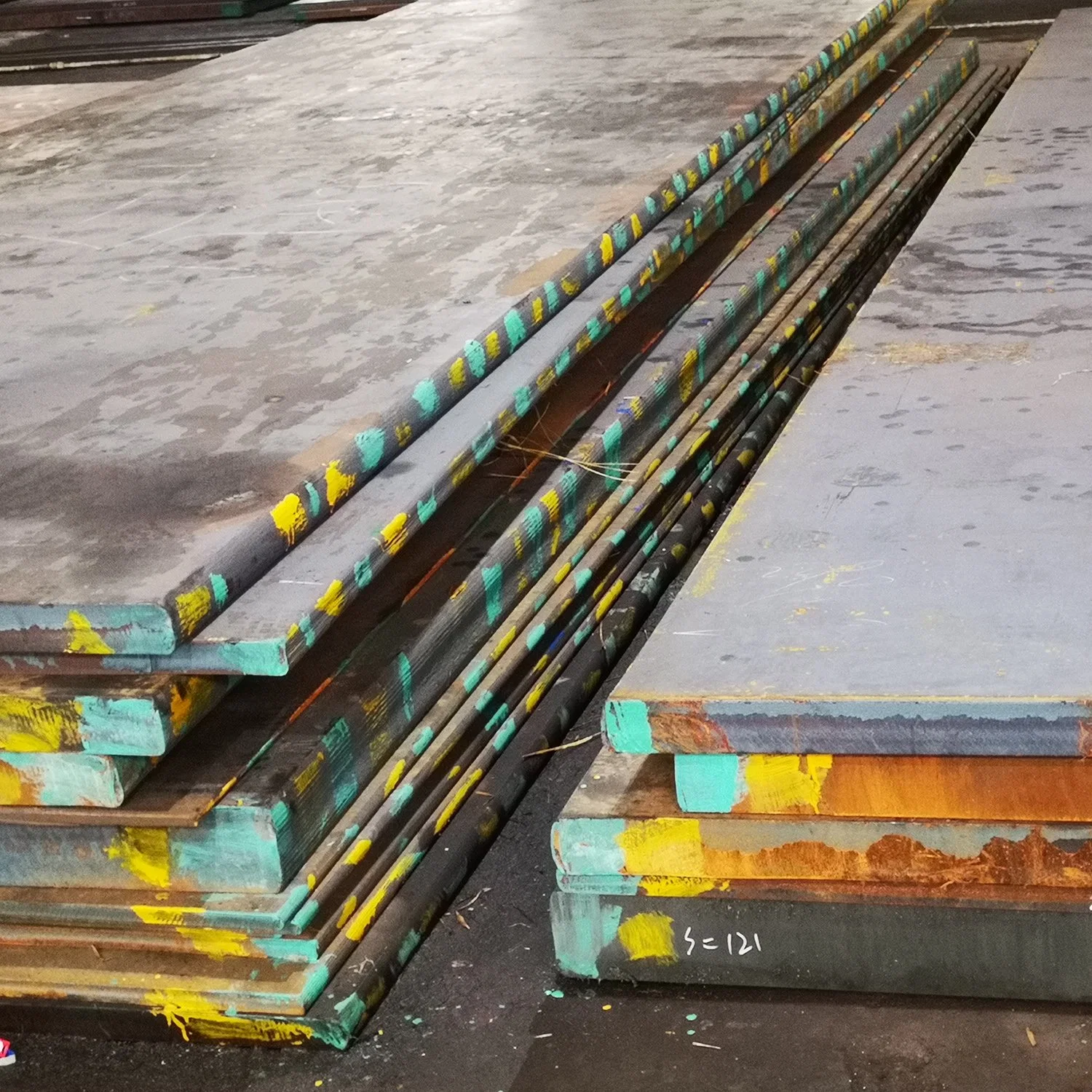

Warehouse

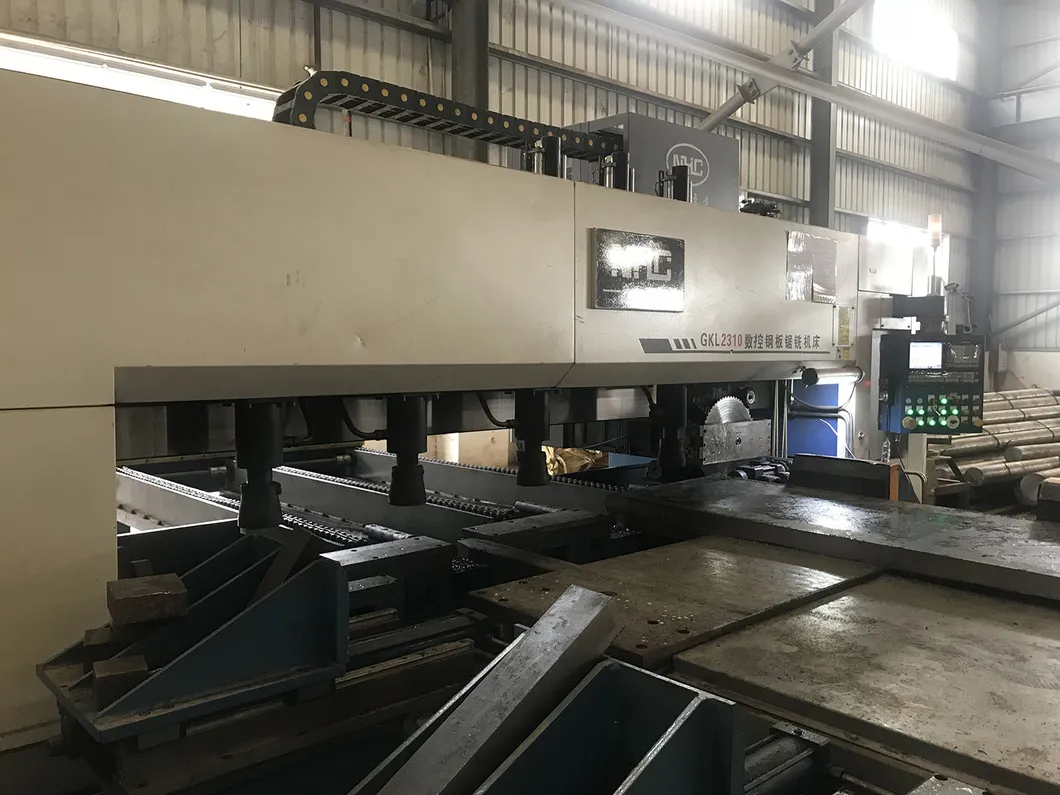

Processing

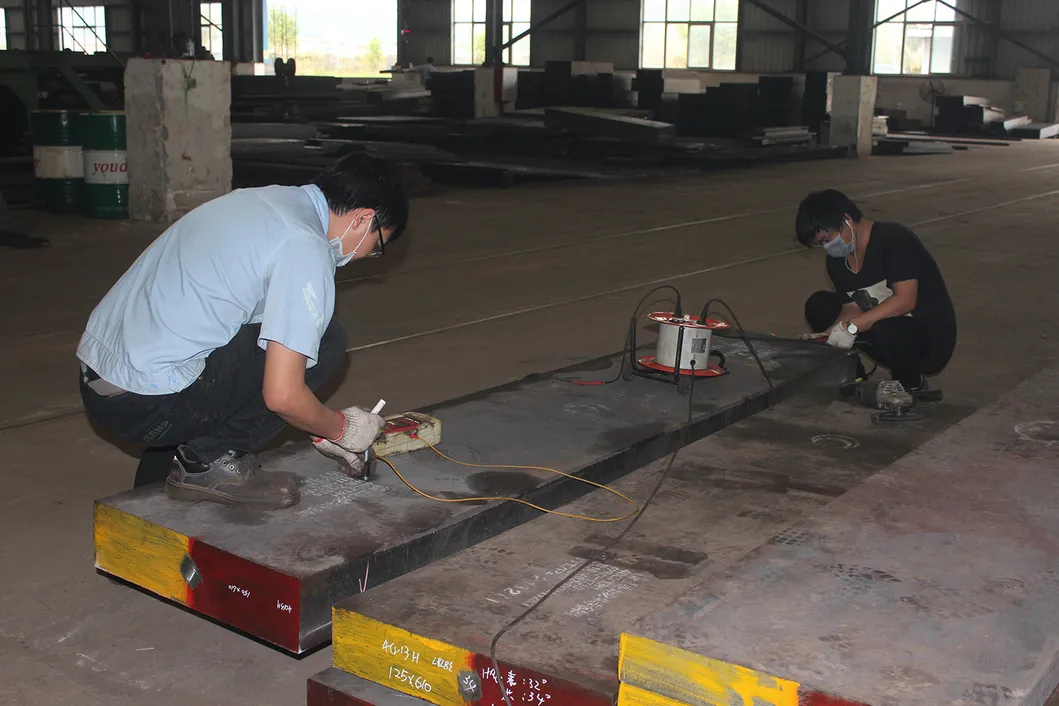

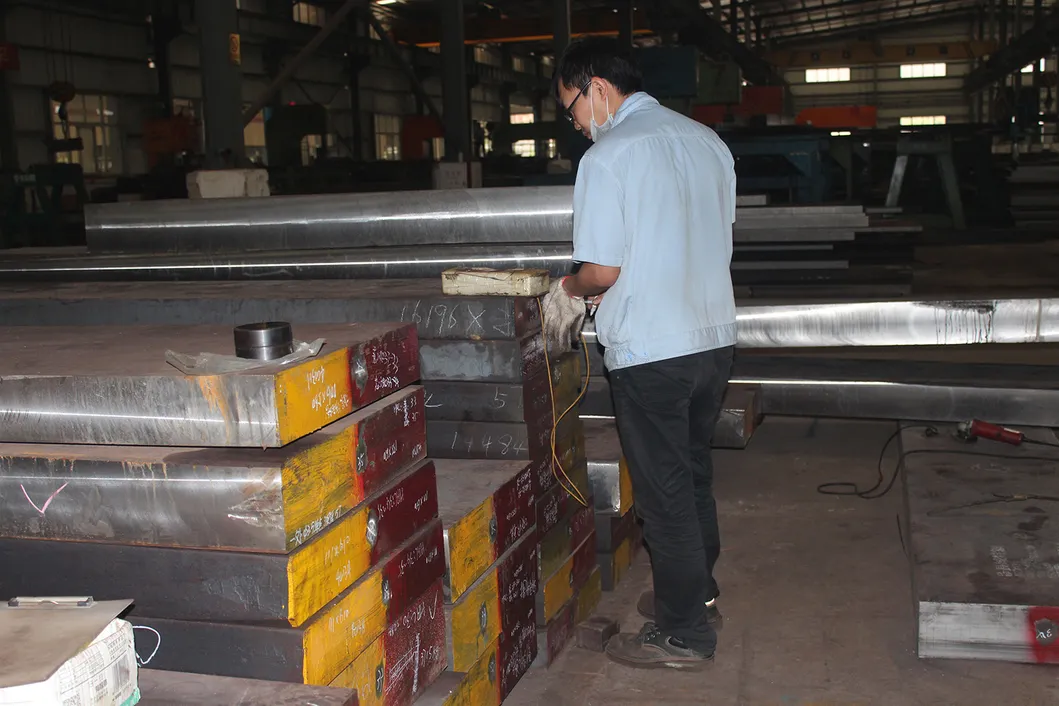

Strict Quality Control
