Product Description

Cold Rolled Steel Coils Cr Coil SPCC-SD

Product Description
thickness: 0.125mm-4.0mm;
Width: 650mm, 1000mm, 1220mm-1500mm;
Width Tolerance:+/-0.5mm;
Thickness Tolerance: +/-0.02mm;
Standard: JIS G3141, EN10130, etc;
Material/Grade: SPCC, SPCC/IB, SPCD, DC01, DC02-DC04, St12, St14, SAE1008/1010, etc.
Surface: SB & SD;
Inner Diameter: 508/610mm;
Coil Weight: 3-22 tons;
HS Code: 720916000/720917000;
Technique: Batch Annealed Cold Rolled(Five continuous rolliing processes);
Delivery Time: asap, about 7-30 Working days(depends on the specific order quantity);
Payment: L/C at sight, T/T;
Trade term: FOB, CFR, CIF;
MOQ: 25 tons per size;
Package: Seaworthy export package;

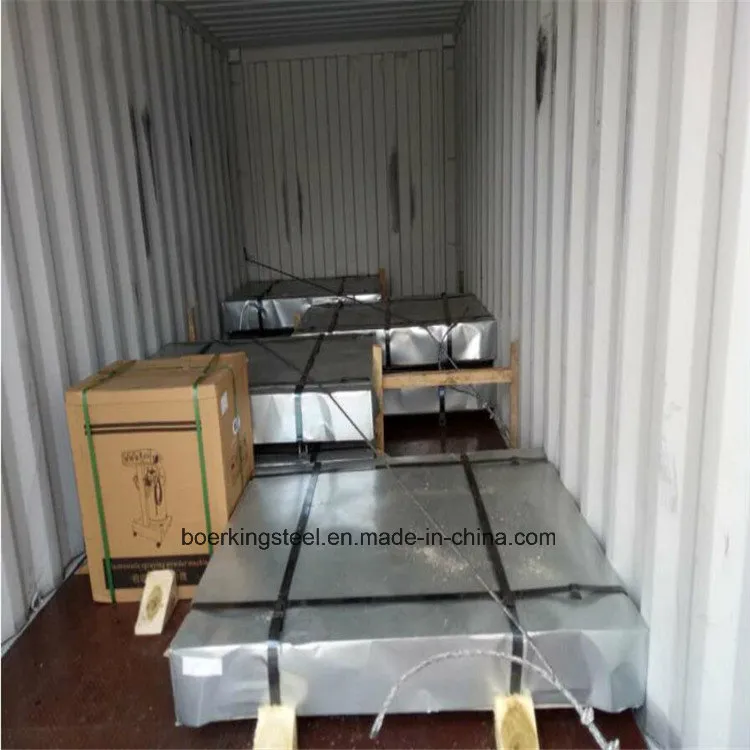

Package Details: export seaworthy packing,covered by waterproof paper,plastic film and steel plate,then fixed on the iron or wooden pallets by strapping strips.
Features: Formability ; paintability ; weldability excellent workability;
Usage/Application: Roofing, Terrace, Elevator, Fridge, Microwave Oven; Air-Conditioner, heating radiator, Washing Machine, Refrigerators, auto parts, doors, drum, windows frame, locker, cabinet, etc.

Chemical composition (Wt%):

Mark	C	Mn	P	S	Alta
DC01,SPCC	≤0.12	≤0.60	≤0.045	≤0.045	≥0.020
DC02,SPCD	≤0.10	≤0.45	≤0.035	≤0.035	≥0.020
DC03,SPCE	≤0.08	≤0.40	≤0.030	≤0.030	≥0.020
DC04,SPCF	≤0.06	≤0.35	≤0.025	≤0.025	≥0.015

Performance: Mainly adopts low carbon steel grades, which requires good cold bending and welding performance, as well as certain stamping performance.

Mechanical property:

Mark	Yield Strength(MPa)	Strength of Extension (MPa)	Elongation(%)
DC01	140-280	270-410	≥28
DC02	140-240	270-370	≥34
DC03	120-210	270-350	≥38
DC04	120-180	270-330	≥40
SPCC	130-300	270-410	--
SPCD	120-240	270-370	--
SPCE	120-210	270-350	--

Applications of Cold Rolled Steel Coil/Sheets:

Classification	Designation	Main applications
Commercial quality	SPCC SPCCT	Refrigerators, cabinets, power distribution baords and drums.
Drawing quality	SPCD	Automobile floor and roof panels.
Deep-drawing quality	SPCE SPCF	Automobile fenders and quarter panels
Extra deep-drawing quality	SPCG	Automobile internal panels and deep-drawn parts

Grades and sizes available of Cold Rolled Steel Coil/Sheets:

Classification	Standard	GB	ASTM	JIS	EN	DIN	ISO	Thickness(mm)	Width(mm)
Commercial Steel	Grades	DC01, SAE1008	CS	SPCC	DC01	ST12	CR1	0.3-2.0	400-1400
Drawing Steel		DC03	DS	SPCD	DC03	ST13	CR2	0.3-2.0	400-1400
		DC04	DDS	SPCE	DC04	ST14	CR3	0.3-2.0	400-1400
		DC05	EDDS	SPCF	DC05	ST15	CR4	0.3-2.0	400-1400
		DC06	EDDS+	SPCG	DC06	ST16	CR5	0.3-2.0	400-1400

. Material	SPCC;SPCD;SPCE; DC01;DC02;DC03; ST12/ST13/ST14,Q195,Q195L,AISI1018,AISI1020
2.Standard	ASTM ;BS;JIS;DIN;GB
3. Inner Diameter	508mm/610mm
4. Length	can be done as your requirements.
5. Thickness	0.13mm-4.0mm (W.T tolerance ±1%)
6.Width	Strip:20-600mm
7.Coil weight	1-3 tons
8.Surface	Oiled;Skin-passed;passivation
9.End	EC/EM
10.Technology	Cold rolled/annealing
11related products	Gi sheet
12Usage	1. common structural parts and parts for drawing in engineering machines 2. transportation machine construction machines, lifting machine, 3. agricultural machines, light and civil industrial, household appliance industries. 4. chemical equipments, drive casing pipe and light industrial civil industries.
