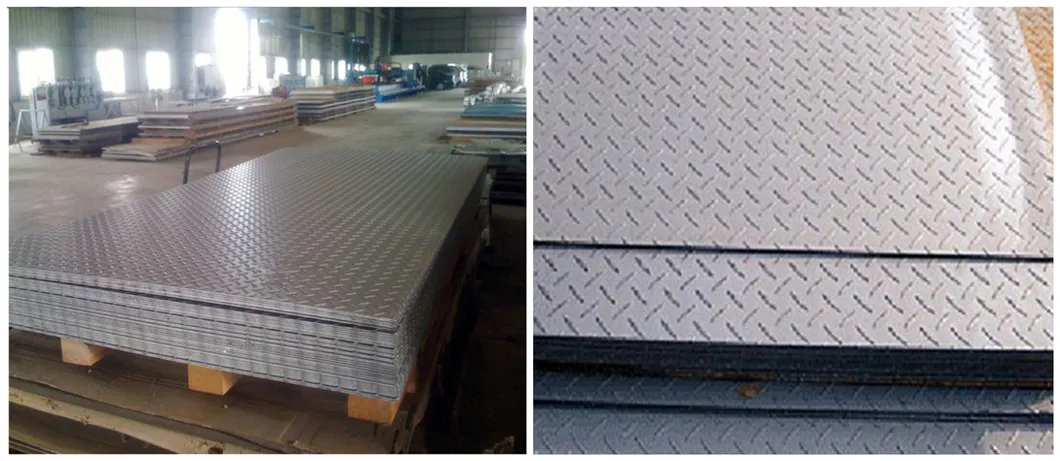

China Aluminium Chequered Sheet 1050 1060 5 Bars Aluminum Tread Checkered Plate

Product Description

We are one of the leading steel prodcuts manufacturer and distributor from China which have been engaging in the field sales for 15 years with 12 years export experience.

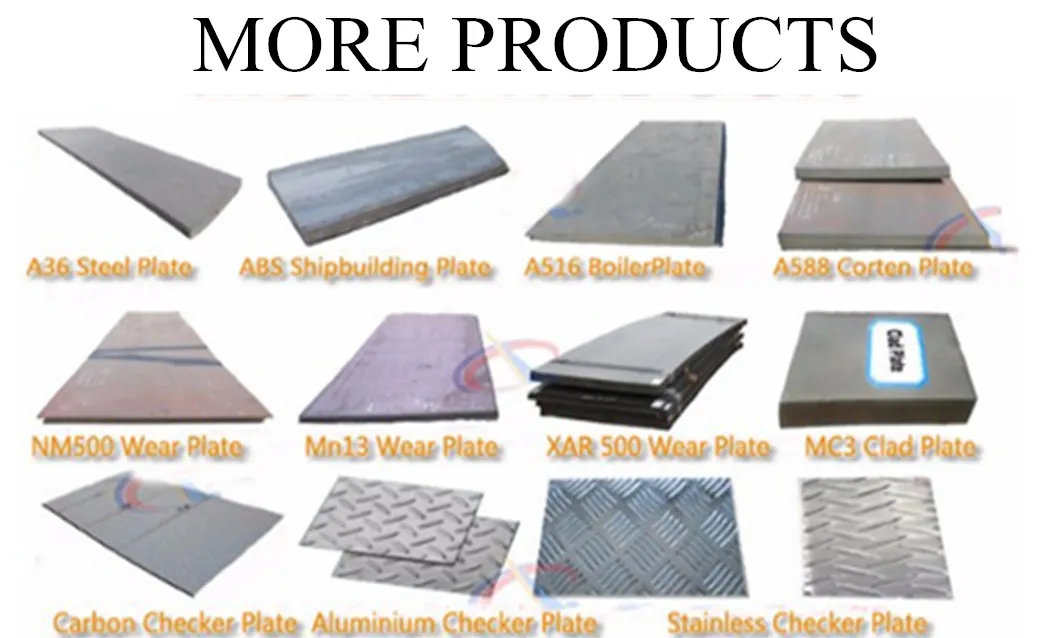

Our main products cover Corten Steel Plate,Wear Resistant Steel Plate,Alloy Steel Plate,Carbon Steel Plate,Shipping Steel Plate and Stainless Steel Plate etc...

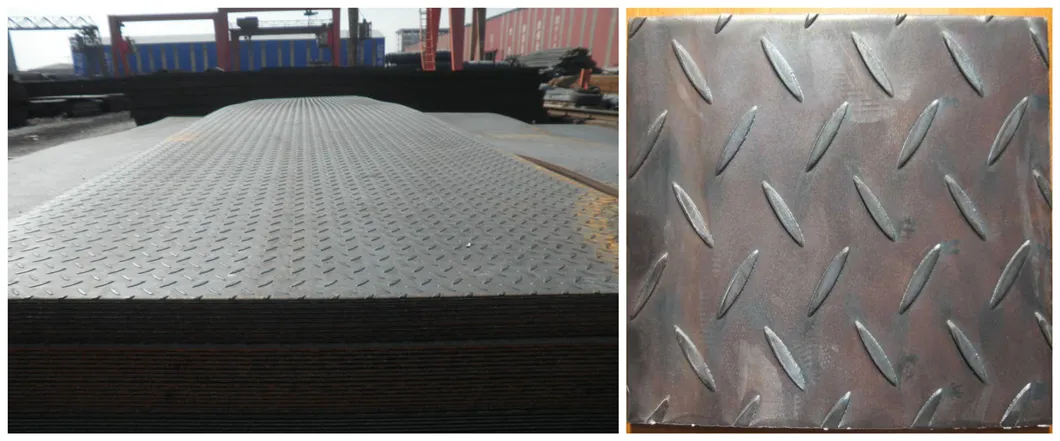

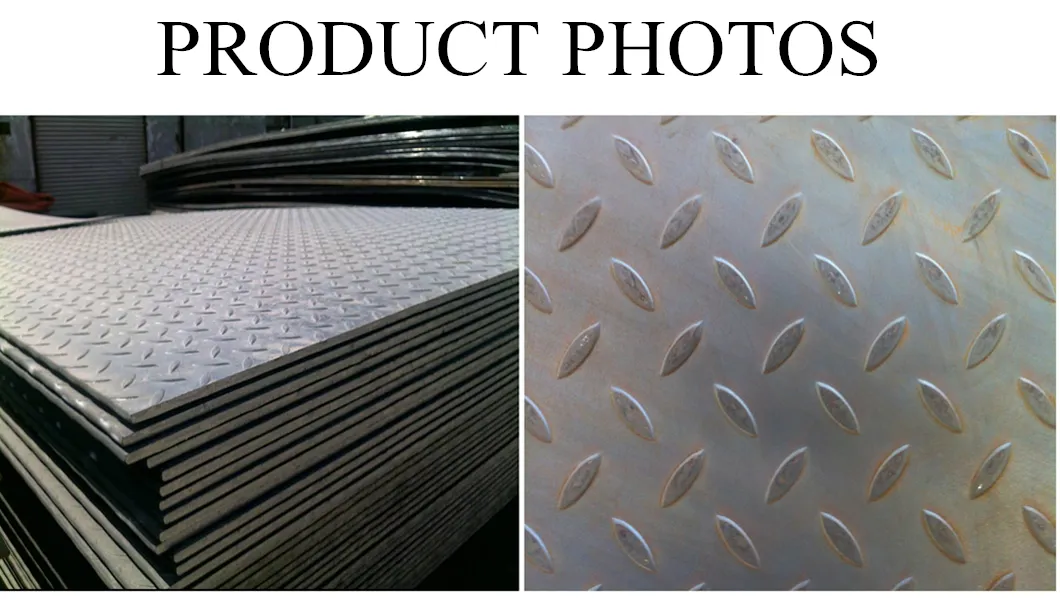

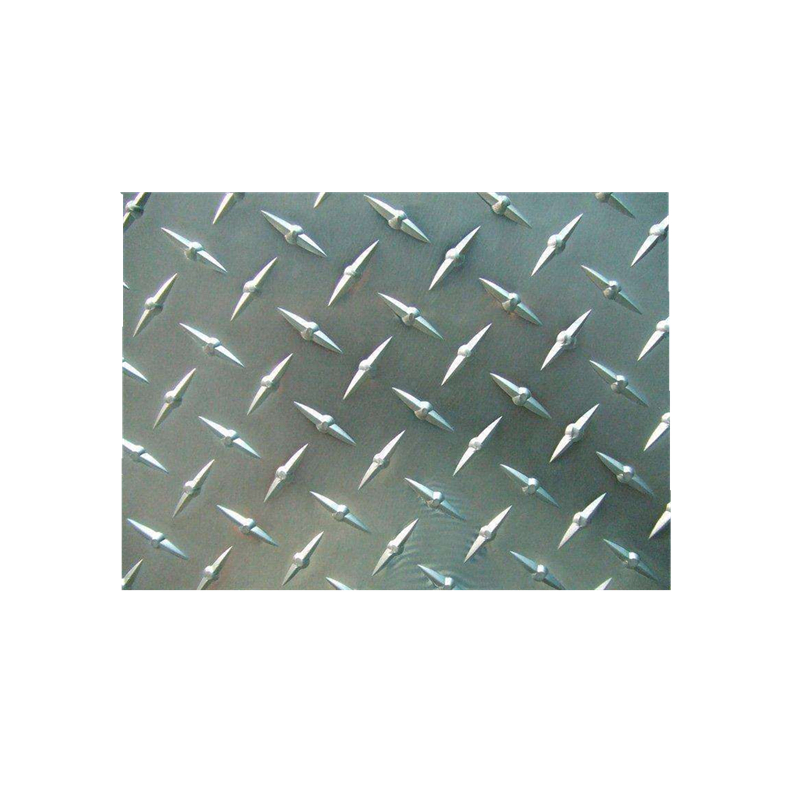

About the Checkered Steel Plate,we can produce the Diamond, Hyacinth Bean, Chrysanthemum,we can provide the product as your requirement.

Looking forward to establish a good relationship long tern bisiness with you!
Product Description
1.Aluminium tread plate /Alumum checker plate product details :

Aluminium tread plate /aluminum checker plate
Aluminium Alloy	Thickness (mm)	Width (mm)	Length (mm)	Temper
A1050,A1050,A1070,A1100	1.0-10mm	800-1900	1000-8000	O,H12,H14,H16,H22,H24,H26
A3003,A3004,A3105	1.0-10mm	800-1900	1000-8000	O,H12,H14,H16,,H22,H24,H26
A5052,A5005,A5083,A5754	1.0-10mm	800-1900	1000-8000	O,H12,H14,H34,H32,H36,H111,H112
Material process	CC AND DC
Customerize size	standard size :1000x2000mm/1200x2400/1220x2440/1250x2500/1500x3000mm
	Size can be produced as per clients requirement

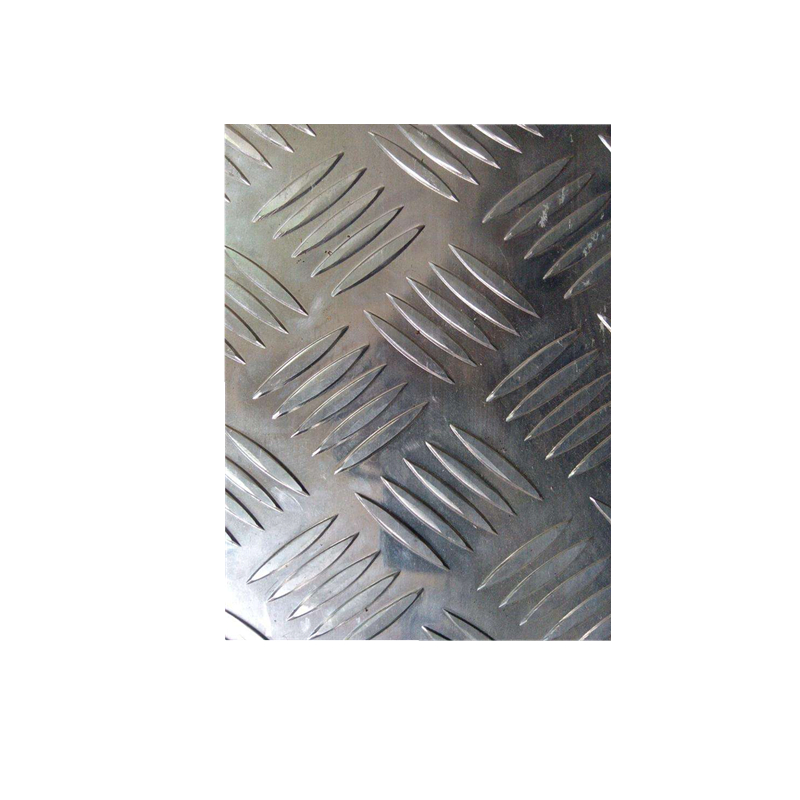

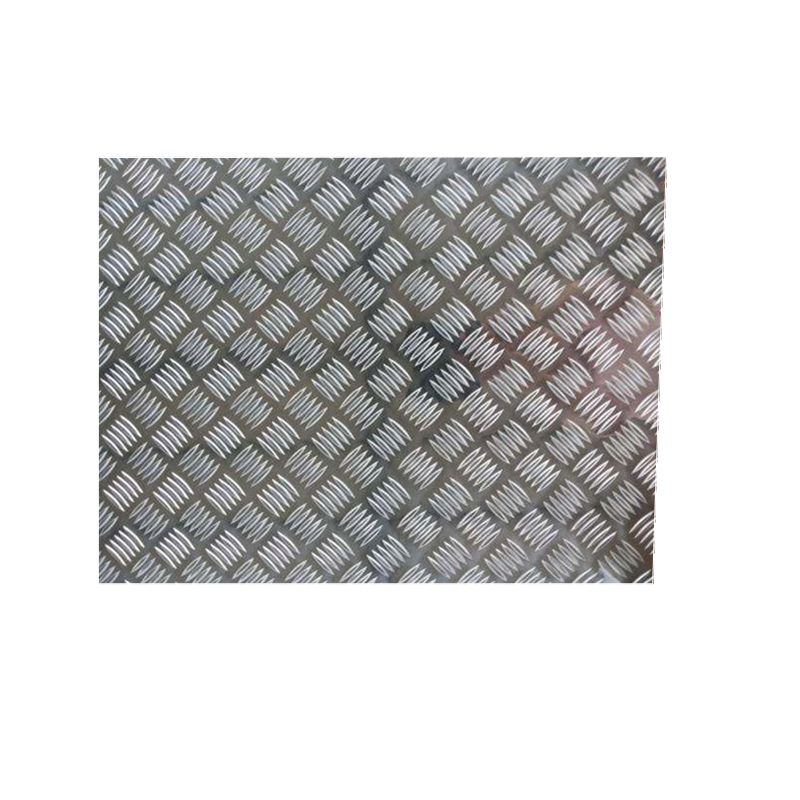

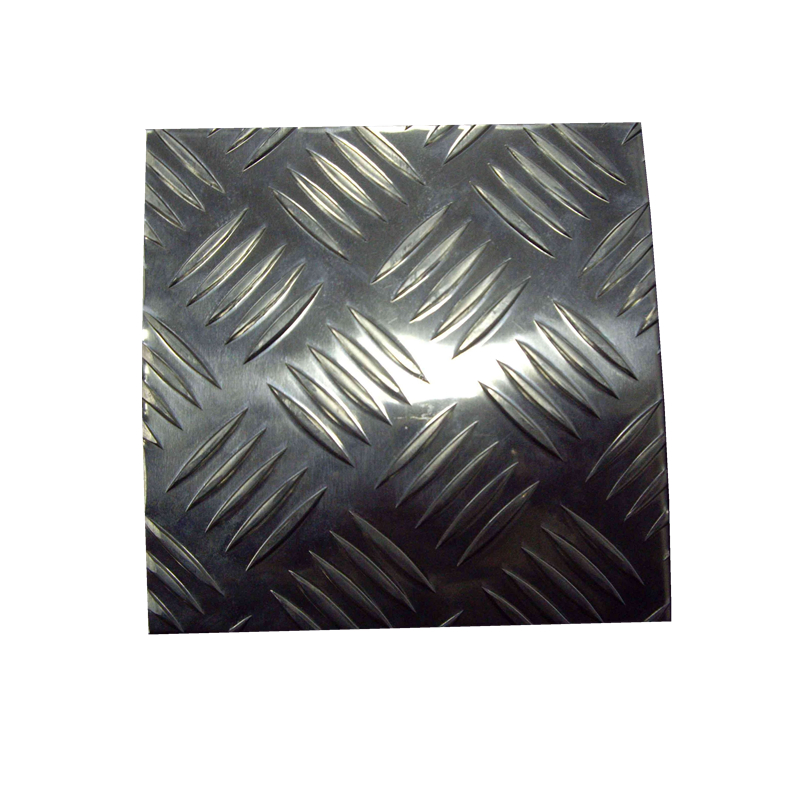

Surface	Mill finish,bright finish( five bar /two bar / one bar ) ,Anodizing,black coated
Tread plate form	sheet or coils as per customer requirement
Bar height	over 0.80mm
Quality Standard	ASTM B209,EN573-1
MOQ per size	2 tons3
Payment Terms	TT OR LC OR DP at sight
Delivery time	Within 25 days after receipt the lc or deposit
Material Quality	Tension levelled ,flat ,Free of defects like oil stain,Roll Marks,Waves,Dents
	scratches etc ,A+++ quality, production process passed sgs and bv inspection
Application	anti-slipping floor, tool box ,decoration ,truck body ,etc

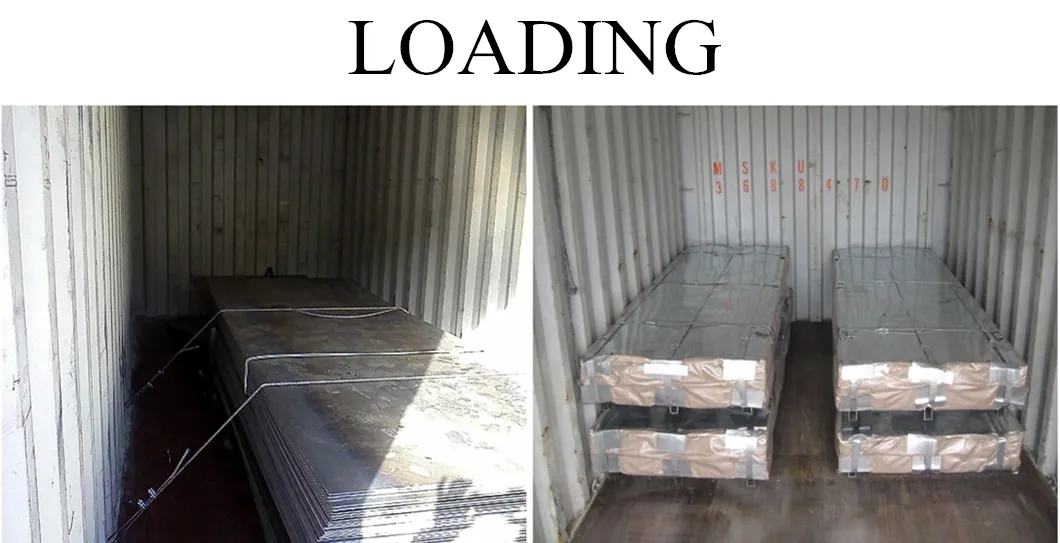

Packing	Standard export worthy wooden pallets,and standard packing is about 2 tons/pallet
	Pallet weight also can be as per client's requirement

2.Production Standard:as per international standard ASTM OR EN standard
All chemical compostion ,mechanical property ,size tolerance ,flat tolerance etc
Strictly as per ASTM OR EN standard .
Chemical Composition :

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn		Ti	Other		Al
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn		Ti	Single	Total	Al
1060	0.25	0.35	0.05	0.03	0.03	_	_	0.05	V:0.05	0.03	0.03	_	99.6
1050	0.25	0.4	0.05	0.05	0.05	_	_	0.05	V:0.05	0.03	0.03	_	99.5
1100	Si+Fe:0.95		0.05~0.40	0.05	_	_	_	0.1	_	_	0.05	0.15	99
1200	Si+Fe:1.00		0.05	0.05		_	_	0.1	_	0.05	0.05	0.15	99
3003	0.6	0.7	0.05~0.20	1.0~1.5	_	_	_	0.1		_	0.05	0.15	R
3004	0.3	0.7	0.25	1.0~1.5	0.8~1.3	_	_	0.25		_	0.05	0.15	R
3005	0.6	0.7	0.3	1.0~1.5	0.20~0.6	0.1	_	0.25		0.1	0.05	0.15	R
3105	0.6	0.7	0.3	0.30~0.8	0.20~0.8	0.2	_	0.4		0.1	0.05	0.15	R
5005	0.3	0.7	0.2	0.2	0.50~1.1	0.1	_	0.25	_	_	0.05	0.15	R
5052	0.25	0.4	0.1	0.1	2.2~2.8	0.15~0.35	_	0.1	_	_	0.05	0.15	R
5083	0.4	0.4	0.1	0.40~1.0	4.0~4.9	0.05~0.25	_	0.25	_	0.15	0.05	0.15	R
5086	0.4	0.5	0.1	0.20~0.7	3.5~4.5	0.05~0.25	_	0.25	_	0.15	0.05	0.15	R
