Home > Products > Steel Sheet & Plate > 760/ 820 /840/900mm Building Material Galvanized Color Corrugated PPGI Sheet
760/ 820 /840/900mm Building Material Galvanized Color Corrugated PPGI Sheet

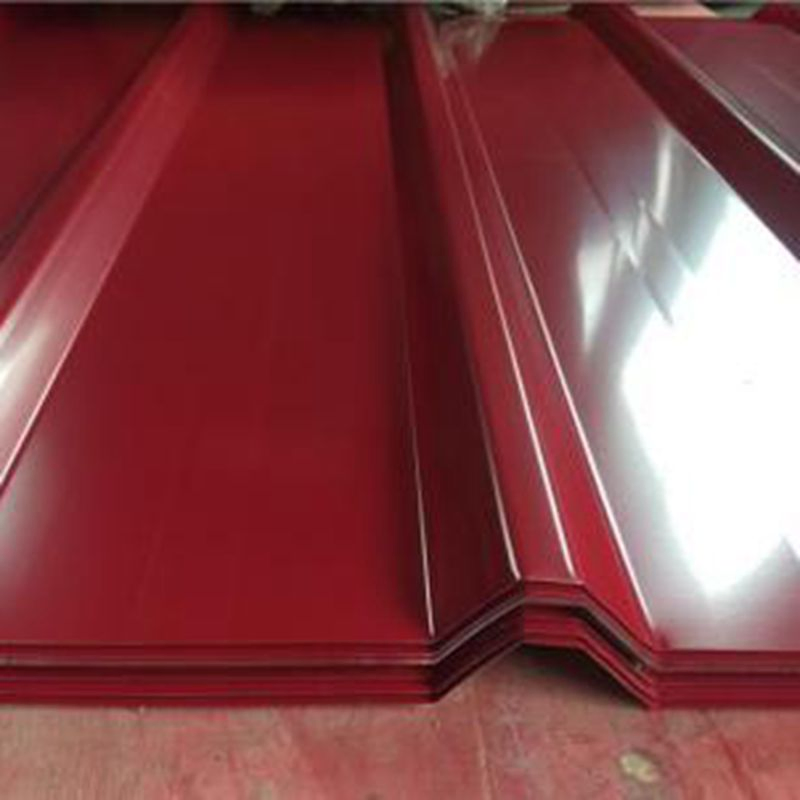

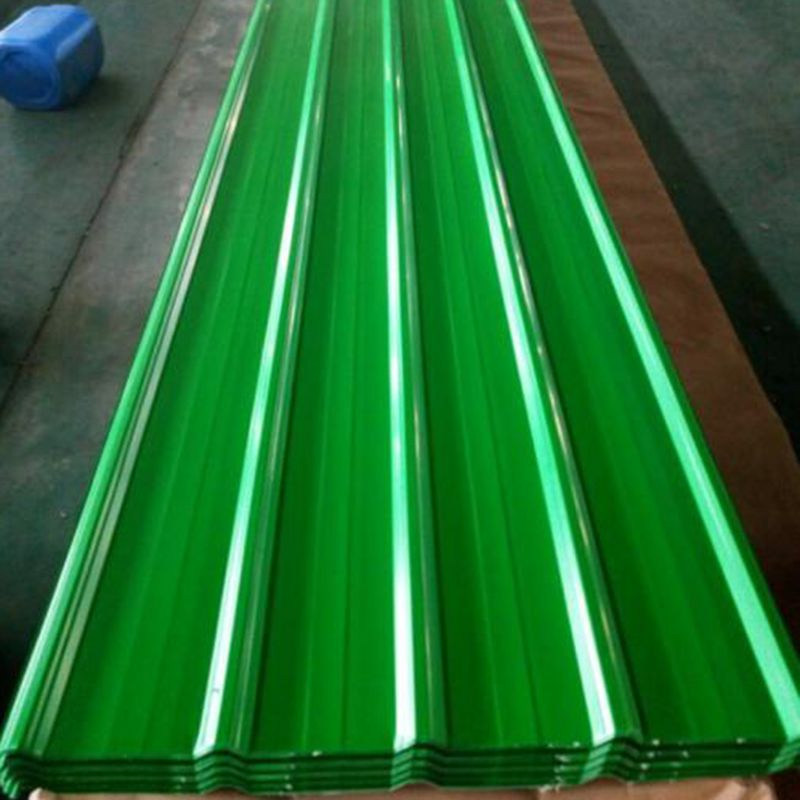

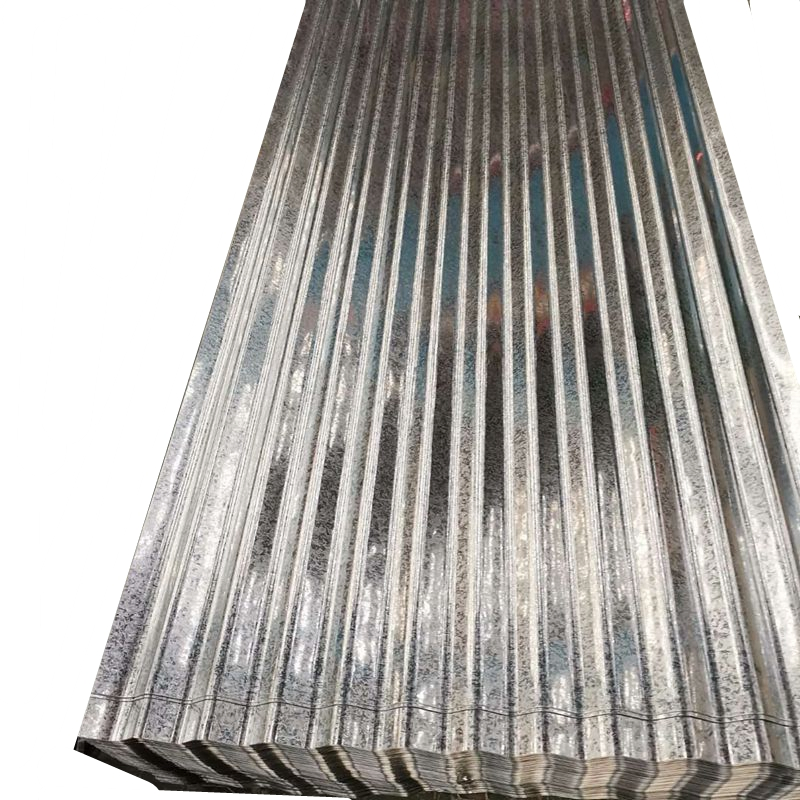

Corrugated Sheet The corrugated sheet is also called a embossed sheet. It is rolled and cold-formed into various wave-shaped profiled sheets by color-coated steel sheets and galvanized sheets. It is suitable for industrial and civil buildings, warehouses, special buildings, and large spans. Roo......
Send Inquiry
Product Description
Corrugated Sheet
The corrugated sheet is also called a embossed sheet. It is rolled and cold-formed into various wave-shaped profiled sheets by color-coated steel sheets and galvanized sheets. It is suitable for industrial and civil buildings, warehouses, special buildings, and large spans. Roofing, wall and interior and exterior wall decoration of steel structure houses. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, anti-seismic, fireproof, rainproof, long life and maintenance-free. It has been widely used.
Product Description
1. Effective Width 760/820/840/900mm Galvanized Color Corrugated Sheet for Building Material
2. Material Grade:
Q195,Q215,Q235,Q275, and so on.
3.Standard: ASTM BS JIS NF DIN GB AISI
4.Thickness:0.2-1.0mm
5.Effective Width:420/470/608/760/820/840/900/950mm,or other width as the customers' requirements.
6.Length:2000/2438/3000/5000/5800mm,or other length as the customers' requirements.
7.Process: cold rolled;
8.Surface:galvanized; coated;
Product Range
We have
1)Folding by the amount of alloying elements, divided into
Low alloy steel (alloying element total less than 5%) sheet/plate/coil/roll;
Medium alloy steel (alloying elements total 5% -10%) sheet/plate/coil/roll;
High alloy steel (alloying elements total more than 10%). sheet/plate/coil/roll;
2)Folding according to the main alloy elements contained, divided into
Chrome steel (Cr-Fe-C) sheet/plate/coil/roll;
Cr-Ni-Fe-C sheet/plate/coil/roll;
Manganese steel (Mn-Fe-C) sheet/plate/coil/roll;
Silicon-manganese steel (Si-Mn-Fe-C) sheet/plate/coil/roll;
3)Folding by classification
Alloy structural steel sheet/plate/coil/roll;
Alloy tool steel sheet/plate/coil/roll;
Special performance steel sheet/plate/coil/roll;
For the process,
We have cold rolled/ hot rolled/ forged.
For the cold rolled steel sheet/plate, the thickness we have 0.1mm-8mm
For the hot rolled steel sheet/plate, the thickness we have 0.35-200mm
Applications for industrial :
(1) The appearance is novel and novel, the color is rich, the decoration is strong, the combination is flexible and changeable, and the expression can be different.
(2) Light weight (6~10kg/m²) High strength (yield strength 250~550MPa), good skin stiffness and good waterproof performance of waterproof agent;
(3) High quality of factory products
(4) Convenient construction and installation, reducing the workload of installation and transportation, and shortening the construction period;
(5) The profiled steel plate is an environmentally-friendly building material that can be recycled and used to promote the application of the profiled steel plate in line with the policy of sustainable development of the national economy;
(6) The price of the monomer material is relatively high, and the durability is poor compared with the concrete or masonry enclosing material.
Packing
Standard export packing, or as the customers' requirement.
Why choose us?
Our company established in 2004.More than 10 years of development,we become the leader in north China market in metal material products.We have more than 1000 tons of perennial stock.
What is our customer base?
Our customers are located in more than 80 countries and regions around the world,especially in the Middle East,Southeast Asia,South America,North America,Australia,Eastern Europe,Nordic has long-term stability of customers.
What is our advantage?
We have high quality products and professional services. Our products after SGS,BV,ISO certification. Our salesman has more than five years of experience.
What is the delivery time?
If we have stock, usually the delivery time is about 10-20 working days. If your products need to be produced, the delivery time is about 30 working days or 45 working days, or according to the factory arrangement.
The corrugated sheet is also called a embossed sheet. It is rolled and cold-formed into various wave-shaped profiled sheets by color-coated steel sheets and galvanized sheets. It is suitable for industrial and civil buildings, warehouses, special buildings, and large spans. Roofing, wall and interior and exterior wall decoration of steel structure houses. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, anti-seismic, fireproof, rainproof, long life and maintenance-free. It has been widely used.
Product Description
1. Effective Width 760/820/840/900mm Galvanized Color Corrugated Sheet for Building Material
2. Material Grade:
Q195,Q215,Q235,Q275, and so on.
3.Standard: ASTM BS JIS NF DIN GB AISI
4.Thickness:0.2-1.0mm
5.Effective Width:420/470/608/760/820/840/900/950mm,or other width as the customers' requirements.
6.Length:2000/2438/3000/5000/5800mm,or other length as the customers' requirements.
7.Process: cold rolled;
8.Surface:galvanized; coated;
Product Range
We have
1)Folding by the amount of alloying elements, divided into
Low alloy steel (alloying element total less than 5%) sheet/plate/coil/roll;
Medium alloy steel (alloying elements total 5% -10%) sheet/plate/coil/roll;
High alloy steel (alloying elements total more than 10%). sheet/plate/coil/roll;
2)Folding according to the main alloy elements contained, divided into
Chrome steel (Cr-Fe-C) sheet/plate/coil/roll;
Cr-Ni-Fe-C sheet/plate/coil/roll;
Manganese steel (Mn-Fe-C) sheet/plate/coil/roll;
Silicon-manganese steel (Si-Mn-Fe-C) sheet/plate/coil/roll;
3)Folding by classification
Alloy structural steel sheet/plate/coil/roll;
Alloy tool steel sheet/plate/coil/roll;
Special performance steel sheet/plate/coil/roll;
For the process,
We have cold rolled/ hot rolled/ forged.
For the cold rolled steel sheet/plate, the thickness we have 0.1mm-8mm
For the hot rolled steel sheet/plate, the thickness we have 0.35-200mm
Applications for industrial :
(1) The appearance is novel and novel, the color is rich, the decoration is strong, the combination is flexible and changeable, and the expression can be different.
(2) Light weight (6~10kg/m²) High strength (yield strength 250~550MPa), good skin stiffness and good waterproof performance of waterproof agent;
(3) High quality of factory products
(4) Convenient construction and installation, reducing the workload of installation and transportation, and shortening the construction period;
(5) The profiled steel plate is an environmentally-friendly building material that can be recycled and used to promote the application of the profiled steel plate in line with the policy of sustainable development of the national economy;
(6) The price of the monomer material is relatively high, and the durability is poor compared with the concrete or masonry enclosing material.
Packing
Standard export packing, or as the customers' requirement.
Why choose us?
Our company established in 2004.More than 10 years of development,we become the leader in north China market in metal material products.We have more than 1000 tons of perennial stock.
What is our customer base?
Our customers are located in more than 80 countries and regions around the world,especially in the Middle East,Southeast Asia,South America,North America,Australia,Eastern Europe,Nordic has long-term stability of customers.
What is our advantage?
We have high quality products and professional services. Our products after SGS,BV,ISO certification. Our salesman has more than five years of experience.
What is the delivery time?
If we have stock, usually the delivery time is about 10-20 working days. If your products need to be produced, the delivery time is about 30 working days or 45 working days, or according to the factory arrangement.
| Grade | China | USA | UK | Japan | France | Germany | |
| GB | ГОСТ | ASTM | BS | JIS | NF | DIN | |
| 08F | 08КП | 1006 | 040A04 | S09CK | C10 | ||
| Carbon | 08 | 08 | 1008 | 045M10 | S9CK | C10 | |
| 10F | 1010 | 040A10 | XC10 | ||||
| 10 | 10 | 1010,1012 | 045M10 | S10C | XC10 | C10,CK10 | |
| 15 | 15 | 1015 | 095M15 | S15C | XC12 | C15,CK15 | |
| Construction | 20 | 20 | 1020 | 050A20 | S20C | XC18 | C22,CK22 |
| 25 | 25 | 1025 | S25C | CK25 | |||
| 30 | 30 | 1030 | 060A30 | S30C | XC32 | ||
| 35 | 35 | 1035 | 060A35 | S35C | XC38TS | C35,CK35 | |
| 40 | 40 | 1040 | 080A40 | S40C | XC38H1 | ||
| Steel | 45 | 45 | 1045 | 080M46 | S45C | XC45 | C45,CK45 |
| 50 | 50 | 1050 | 060A52 | S50C | XC48TS | CK53 | |
| 55 | 55 | 1055 | 070M55 | S55C | XC55 | ||
| 60 | 60 | 1060 | 080A62 | S58C | XC55 | C60,CK60 | |
| 15Mn | 15Г | 1016,1115 | 080A17 | SB46 | XC12 | 14Mn4 | |
| 20Mn | 20Г | 1021,1022 | 080A20 | XC18 | |||
| 30Mn | 30Г | 1030,1033 | 080A32 | S30C | XC32 | ||
| 40Mn | 40Г | 1036,1040 | 080A40 | S40C | 40M5 | 40Mn4 | |
| 45Mn | 45Г | 1043,1045 | 080A47 | S45C | |||
| 50Mn | 50Г | 1050,1052 | 030A52 | S53C | XC48 | ||
| 080M50 | |||||||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| 20Mn2 | 20Г2 | 1320,1321 | 150M19 | SMn420 | 20Mn5 | ||
| 30Mn2 | 30Г2 | 1330 | 150M28 | SMn433H | 32M5 | 30Mn5 | |
| 35Mn2 | 35Г2 | 1335 | 150M36 | SMn438(H) | 35M5 | 36Mn5 | |
| 40Mn2 | 40Г2 | 1340 | SMn443 | 40M5 | |||
| 45Mn2 | 45Г2 | 1345 | SMn443 | 46Mn7 | |||
| 50Mn2 | 50Г2 | ~55M5 | |||||
| Alloy | 20MnV | 20MnV6 | |||||
| 35SiMn | 35CГ | En46 | 37MnSi5 | ||||
| 42SiMn | 35CГ | En46 | 46MnSi4 | ||||
| 40B | TS14B35 | ||||||
| 45B | 50B46H | ||||||
| 40MnB | 50B40 | ||||||
| 45MnB | 50B44 | ||||||
| Construction | 15Cr | 15X | 5115 | 523M15 | SCr415(H) | 12C3 | 15Cr3 |
| 20Cr | 20X | 5120 | 527A19 | SCr420H | 18C3 | 20Cr4 | |
| 30Cr | 30X | 5130 | 530A30 | SCr430 | 28Cr4 | ||
| 35Cr | 35X | 5132 | 530A36 | SCr430(H) | 32C4 | 34Cr4 | |
| 40Cr | 40X | 5140 | 520M40 | SCr440 | 42C4 | 41Cr4 | |
| 45Cr | 45X | 5145,5147 | 534A99 | SCr445 | 45C4 | ||
| 38CrSi | 38XC | ||||||
| 12CrMo | 12XM | 620CR.B | 12CD4 | 13CrMo44 | |||
| 15CrMo | 15XM | A-387Cr . B | 1653 | STC42 | 12CD4 | 16CrMo44 | |
| STT42 | |||||||
| Steel | STB42 | ||||||
| 20CrMo | 20XM | 4119,4118 | CDS12 | SCT42 | 18CD4 | 20CrMo44 | |
| CDS110 | STT42 | ||||||
| STB42 | |||||||
| 25CrMo | 4125 | En20A | 25CD4 | 25CrMo4 | |||
| 30CrMo | 30XM | 4130 | 1717COS110 | SCM420 | 30CD4 | ||
| 42CrMo | 4140 | 708A42 | 42CD4 | 42CrMo4 | |||
| 708M40 | |||||||
| 35CrMo | 35XM | 4135 | 708A37 | SCM3 | 35CD4 | 34CrMo4 | |
| 12CrMoV | 12XMΦ | ||||||
| 12Cr1MoV | 12X1MΦ | 13CrMoV42 | |||||
| 25Cr2Mo1VA | 25X2M1ΦA | ||||||
| 20CrV | 20XΦ | 6120 | 22CrV4 | ||||
| 40CrV | 40XΦA | 6140 | 42CrV6 | ||||
| 50CrVA | 50XΦA | 6150 | 735A30 | SUP10 | 50CV4 | 50CrV4 | |
| 15CrMn | 15XГ,18XГ | ||||||
| 20CrMn | 20XГCA | 5152 | 527A60 | SUP9 | |||
| 30CrMnSiA | 30XГCA | ||||||
| 40CrNi | 40XH | 3140H | 640M40 | SNC236 | 40NiCr6 | ||
| 20CrNi3A | 20XH3A | 3316 | 20NC11 | 20NiCr14 | |||
| 30CrNi3A | 30XH3A | 3325 | 653M31 | SNC631H | 28NiCr10 | ||
| 3330 | SNC631 | ||||||
| 20MnMoB | 80B20 | ||||||
| 38CrMoAlA | 38XMIOA | 905M39 | SACM645 | 40CAD6.12 | 41CrAlMo07 | ||
| 40CrNiMoA | 40XHMA | 4340 | 871M40 | SNCM439 | 40NiCrMo22 | ||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| 60 | 60 | 1060 | 080A62 | S58C | XC55 | C60 | |
| 85 | 85 | C1085 | 080A86 | SUP3 | |||
| Spring | 1084 | ||||||
| 65Mn | 65Г | 1566 | |||||
| Steel | 55Si2Mn | 55C2Г | 9255 | 250A53 | SUP6 | 55S6 | 55Si7 |
| 60Si2MnA | 60C2ГA | 9260 | 250A61 | SUP7 | 61S7 | 65Si7 | |
| 9260H | |||||||
| 50CrVA | 50XΦA | 6150 | 735A50 | SUP10 | 50CV4 | 50CrV4 | |
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| GCr9 | ШX9 | E51100 | SUJ1 | 100C5 | 105Cr4 | ||
| Bearing | 51100 | ||||||
| GCr9SiMn | SUJ3 | ||||||
| Steel | GCr15 | ШX15 | E52100 | 534A99 | SUJ2 | 100C6 | 100Cr6 |
| 52100 | |||||||
| GCr15SiMn | ШX15CГ | 100CrMn6 | |||||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| Y12 | A12 | C1109 | SUM12 | ||||
| Free | Y15 | B1113 | 220M07 | SUM22 | 10S20 | ||
| Cutting | Y20 | A20 | C1120 | SUM32 | 20F2 | 22S20 | |
| Steel | Y30 | A30 | C1130 | SUM42 | 35S20 | ||
| Y40Mn | A40Г | C1144 | 225M36 | 45MF2 | 40S20 | ||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| ZGMn13 | 116Г13Ю | SCMnH11 | Z120M12 | X120Mn12 | |||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| T7 | y7 | W1-7 | SK7,SK6 | C70W1 | |||
| Carbon | T8 | y8 | SK6,SK5 | ||||
| T8A | y8A | W1-0.8C | 1104Y175 | C80W1 | |||
| Tool | T8Mn | y8Г | SK5 | ||||
| T10 | y10 | W1-1.0C | D1 | SK3 | |||
| Steel | T12 | y12 | W1-1.2C | D1 | SK2 | Y2 120 | C125W |
| T12A | y12A | W1-1.2C | XC 120 | C125W2 | |||
| T13 | y13 | SK1 | Y2 140 | C135W | |||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| 8MnSi | C75W3 | ||||||
| 9SiCr | 9XC | BH21 | 90CrSi5 | ||||
| Cr2 | X | L3 | 100Cr6 | ||||
| Alloy | Cr06 | 13X | W5 | SKS8 | 140Cr3 | ||
| 9Cr2 | 9X | L | 100Cr6 | ||||
| W | B1 | F1 | BF1 | SK21 | 120W4 | ||
| Tool | Cr12 | X12 | D3 | BD3 | SKD1 | Z200C12 | X210Cr12 |
| Cr12MoV | X12M | D2 | BD2 | SKD11 | Z200C12 | X165CrMoV46 | |
| 9Mn2V | 9Г2Φ | 02 | 80M80 | 90MnV8 | |||
| Steel | 9CrWMn | 9XBГ | 01 | SKS3 | 80M8 | ||
| CrWMn | XBГ | 07 | SKS31 | 105WC13 | 105WCr6 | ||
| 3Cr2W8V | 3X2B8Φ | H21 | BH21 | SKD5 | X30WC9V | X30WCrV93 | |
| 5CrMnMo | 5XГM | SKT5 | 40CrMnMo7 | ||||
| 5CrNiMo | 5XHM | L6 | SKT4 | 55NCDV7 | 55NiCrMoV6 | ||
| 4Cr5MoSiV | 4X5MΦC | H11 | BH11 | SKD61 | Z38CDV5 | X38CrMoV51 | |
| 4CrW2Si | 4XB2C | SKS41 | 40WCDS35-12 | 35WCrV7 | |||
| 5CrW2Si | 5XB2C | S1 | BSi | 45WCrV7 | |||
| Grade | GB | ГОСТ | ASTM | BS | JIS | NF | DIN |
| W18Cr4V | P18 | T1 | BT1 | SKH2 | Z80WCV | S18-0-1 | |
| High | 18-04-01 | ||||||
| W6Mo5Cr4V2 | P6M3 | N2 | BM2 | SKH9 | Z85WDCV | S6-5-2 | |
| Speed | 06-05-04-02 | ||||||
| W18Cr4VCo5 | P18K5Φ2 | T4 | BT4 | SKH3 | Z80WKCV | S18-1-2-5 | |
| Steel | 18-05-04-01 | ||||||
| W2Mo9Cr4VCo8 | M42 | BM42 | Z110DKCWV | S2-10-1-8 | |||
| 09-08-04-02-01 |
