Wc20 Polished Pure Tungsten Electrode in 99.95% Purity Tungsten TIG Welding Rod Wc20 Tungsten Electrode (WP WL WT WY)

Product Description

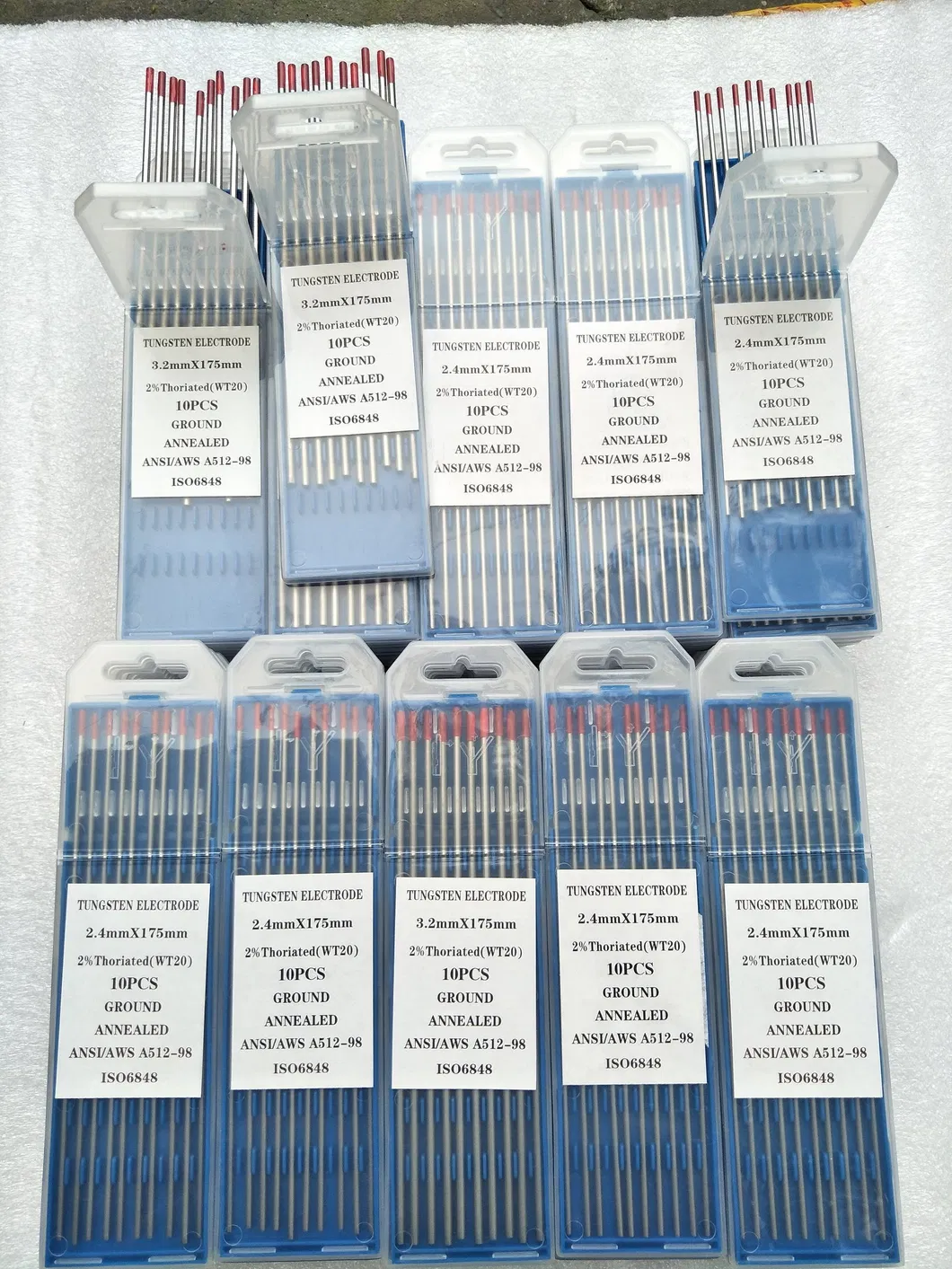

WT20 thoriated tungsten TIG Welding Electrode
Polished pure tungsten electrode in 99.95% purity
Available sizes: (10pcs in one plastic packing)
1.0mmX150mm, 1.0mmX175mm
1.6mmX150mm, 1.6mmX175mm
2.0mmX150mm, 2.0mmX175mm
2.4mmX150mm, 2.4mmX175mm
3.0mmX150mm, 3.0mmX175mm
3.2mmX150mm, 3.2mmX175mm
We have many kinds of tungsten electrode type:
Pure tungsten electrodes-WP(marked green color)
Thoriated tungsten electrodes- WT10(marked yellow color)
WT20(marked red color)
WT30(marked purple color)
WT40(marked orange color)
Lanthanum tungsten electrodes-WL10(marked black color)
WL15(marked gold color)
WL20(marked sky blue color)
Cerium tungsten electrodes- WC20(marked gray color)
Yttrium tungsten electrodes- WY20(marked blue color)
Zirconiated tungsten electrodes- WZ3(marked brown color)
WZ8(marked white color)

WT electrodes product: Thoriated tungsten electrode:
Grade: WT10 WT20 WT3 WT40
Size: diameter 1.0, 1.2 ,1.6, 2.0, 2.4, 3.0, 3.2, 4.0, etc. (dia1/8′′, dia3/32′′, dia1/16′′, etc)
Length: 150mm, 175mm, 800-1100mm, etc.
Surface: polished, ground, black.
Tungsten electrode appearance: the surface is smooth and straight, no defects Wc20 Polished Pure Tungsten Electrode in 99.95% Purity Tungsten TIG Welding Rod Wc20 Tungsten Electrode (WP WL WT WY)

Wc20 Polished Pure Tungsten Electrode in 99.95% Purity Tungsten TIG Welding Rod Wc20 Tungsten Electrode (WP WL WT WY)

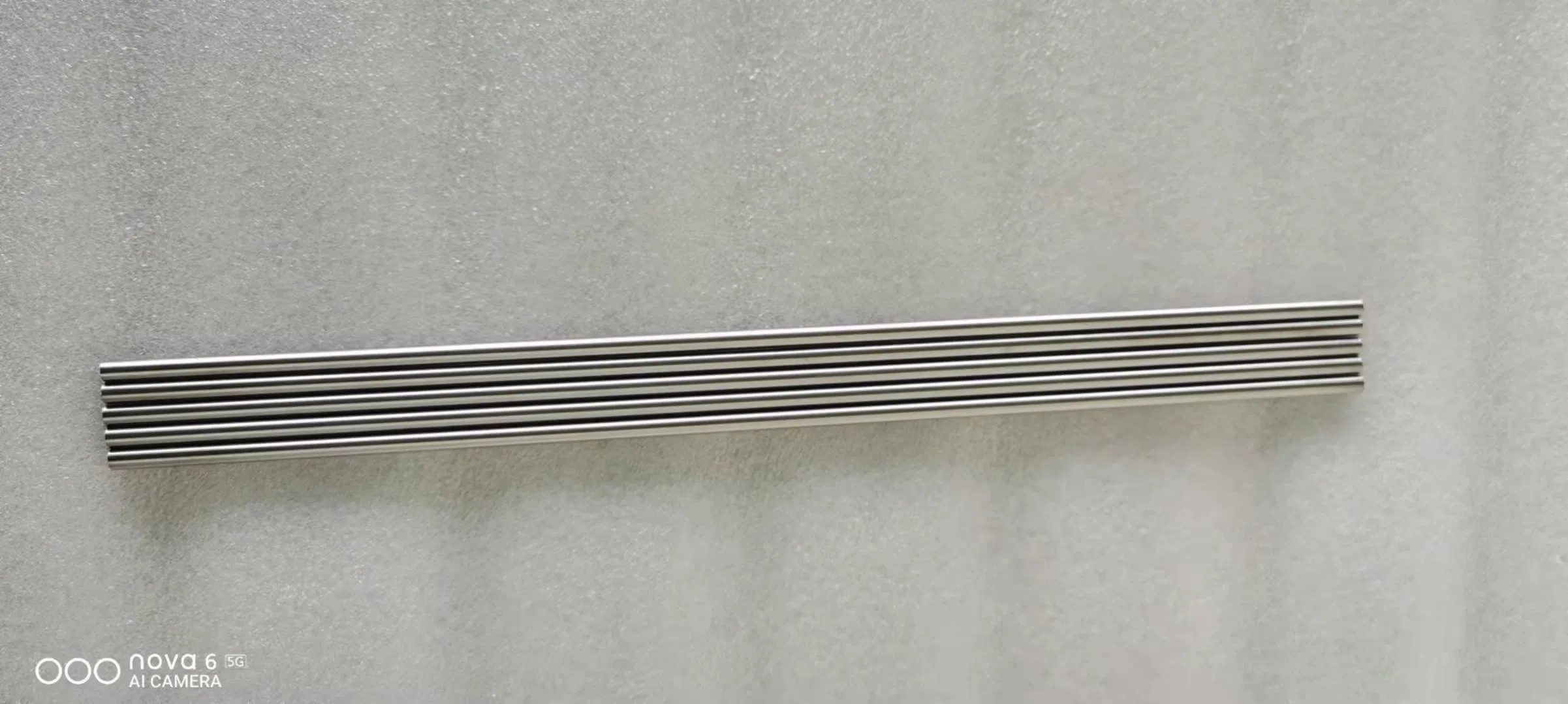

1. Pure tungsten rod Specification:
Surface:Black, ground and polished
Purity:W≥99.95%
Density:≥19.2g/cm3,
Surface roughness:<1.6
Dia:2.5-120mm
Standard: ASTM&GB

Tungsten copper alloy rod Specification:
Material: W50-90Cu10-50
Density: 11.85g/cm3-16.75g/cm3
Product standard: GB8320-87
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu alloy sheet size: diameter(3-100mm)*L<500mm

2. Pure tungsten/molybdenum rod surface finish:
Black: surface is as swaged or as drawn, retaining a ciating of processing lubricants and oxides.
Cleaned: Surface is chemically cleaned to removed all lubricants and oxides.
Ground: Surface is centerless to ground to remove all coating and to achieve precise diameter control.

3. Pure tungsten rod dimension:

Tungsten Content	Type	Diameter (mm)	Dia.Tolerance (mm)	Length (mm)	L tolerance (mm)
99.95%	Sintering rod	40-100	±3	500max	±5
99.95%	Froged rod	20-80	±2	800max	±5
99.95%	Ground rod	2-60	±0.1	600max	±1

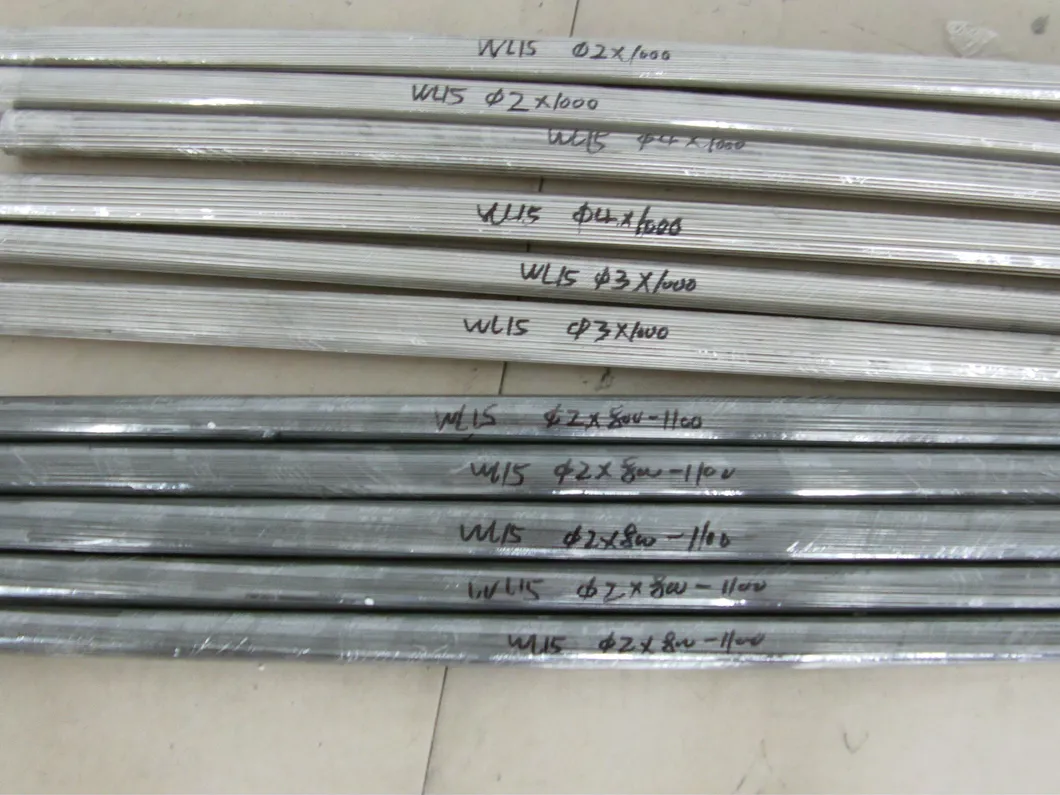

Tungsten rods available size:
Forged rods size: Diameter(2-100mm)*Length<2500mm
Strainghtened rods after drawn diameter 0.8-3.2mm

4. Chemical composition

Content of Tungsten	Content of all other elements	Content of each element
≥99.95%	≤0.05%	≤0.01%

5. Application & Features
  Used as electrodes in the field of rare earth metal industry;
  For producing electric light source parts and electric vacuum components;
  Used in electric boosting glass kiln electrode;
  Suitable for producing ion implantation parts;
  For producing heating elements and refractory parts in high teperature furnaces;
  Very good interlaminar strength at strong thermal and mechanical loadings
6. More information about us:
We promise you -- The advantage of us:
1) products quality, with many years of producing experience
2) low price in the market, and factory direct sales.
3) the whole production line from powder to finished products, top and steady quality assured
4) good packing for safe exprot delivery, and fast manufacturing time
5) fast delivery and best after-sale service.
Wc20 Polished Pure Tungsten Electrode in 99.95% Purity Tungsten TIG Welding Rod Wc20 Tungsten Electrode (WP WL WT WY)
