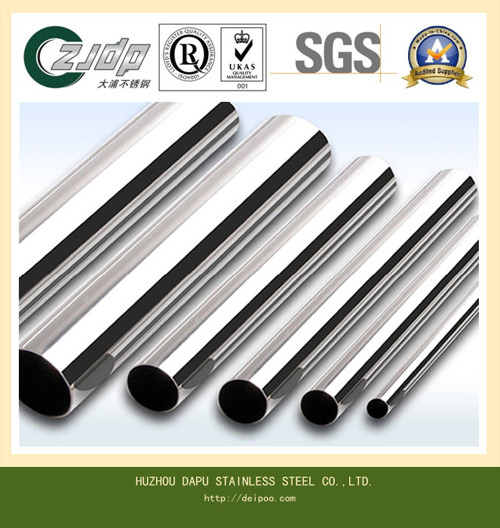

China Seamless Stainless Steel Pipe with Diameter Sch10/Sch40/Sch80

Product Description

Exquisite technology,Premium Quality are the reason to choose DAPU!

Products details:

Name	Stainless Steel Seamless & Welded Tube &Pipe
Items	Square tubes, round tubes, oval pipes, special shaped pipes, empaistic pipes, fittings
Standard	ASTM GB, EN, JIS, DIN, AISI..
Material Grade	201: Ni 0.8%~1%
	202: Ni 3.5%~4.5%
	304: Ni 8%, Cr 18%
	316: Ni 10%, Cr 18%
	316L: Ni10%~14%
	430: Cr16%~18%
Outer Diameter	9.53mm--159mm
Thickness	0.3mm - 3.0mm
Length	6m or as customers' request
Tolerance	a) Outer Diameter: +/- 0.2mm
	b) Thickness: +/- 0.02mm
	c) Length: +/- 5mm
Surface	180G, 240G, 320G Satin / Hairline 400G, 600G Mirror finish
Application	handrail,railing, staircase, weldmesh screen,door,window, balcony,fence,bench,furniture,etc
Test	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Chemical Composition of Material	Material Composition	201	202	304	316L	430
	C	≤0.15	≤0.15	≤0.08	≤0.035	≤0.12
	Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
	Mn	5.5-7.5	7.5-10	≤2.00	≤2.00	≤1.00
	P	≤0.06	≤0.06	≤0.045	≤0.045	≤0.040
	S	≤0.03	≤0.03	≤0.030	≤0.030	≤0.030
	Cr	13-15	14-17	18-20	16-18	16-18
	Ni	0.7-1.1	3.5-4.5	8-10.5	10-14
	Mo				2.0-3.0
Mechanical Property	Material Item		201	202	304	316
	Tensile Strength		≥535	≥520	≥520	≥520
	Yield Strength		≥245	≥205	≥205	≥205
	Extension		≥30%	≥30%	≥35%	≥35%
	Hardness (HV)		<105	<100	<90	<90

Our Advantage

(1): High quality stainless steel tube with reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.

We are professional manufacturer of stainless steel products, including stainless steel decorative pipes,industrial stainless welded pipes, special-shaped pipes, stainless steel
sheet and etc. Main materials are: 304,304L,316,316L,321,317L,347H,S31803,2205,904L and so on.

Surface Finish :

Surface finish	Characteristics and application
No.2B	The surface brightness and flatness of no2B is better than no2D. then through a special surface treatment to improve its mechanical properties,No2B could nearly satisfy comprehensive uses.
No.3	Polished with abrasive belt of git#100-#200, have better brightness with discontinuous coarse stria, used as inner and external ornaments for building, electrical appliances and kitchen utensils etc.
No.4	Polished with abrasive belt of grit #150-#180,have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtub buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc.
HL	Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks, mainly used as buildings ornaments elevators, door of building, frontal plate etc.
BA	Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror, kitchen apparatus, ornament etc.
8K	The product have excellent brightness and prefer reflexivity can to be the mirror.

Products:
we are professinal in producing Stainless steel seamless pipe and welded pipe, and we also supply other stainless steel products: stainless steel fitting, flange, plate, coil, bar, and others.

Certificate:
ISO9001-2000 , PED, SGS and
the Manufacture License of Special Equipment People's Republic of China.

Production capacity :
The company's annual production capacity is 15000 tons stainless steel welded pipe, and 8000 Tons seamless stainless steel Pipe.

Inspector equipment:
The company has a professional testing center, with advanced testing equipment at home and abroad: eddy current flaw detector, ultrasonic flaw detector, direct-reading spectrometer , X-ray detector ,pressure unit, universal pressure test apparatus, and crystal physics and chemistry equipment. In strict line with GB, ASTM(ASME),EN,DIN,JIS and other international standards pipe respectively
