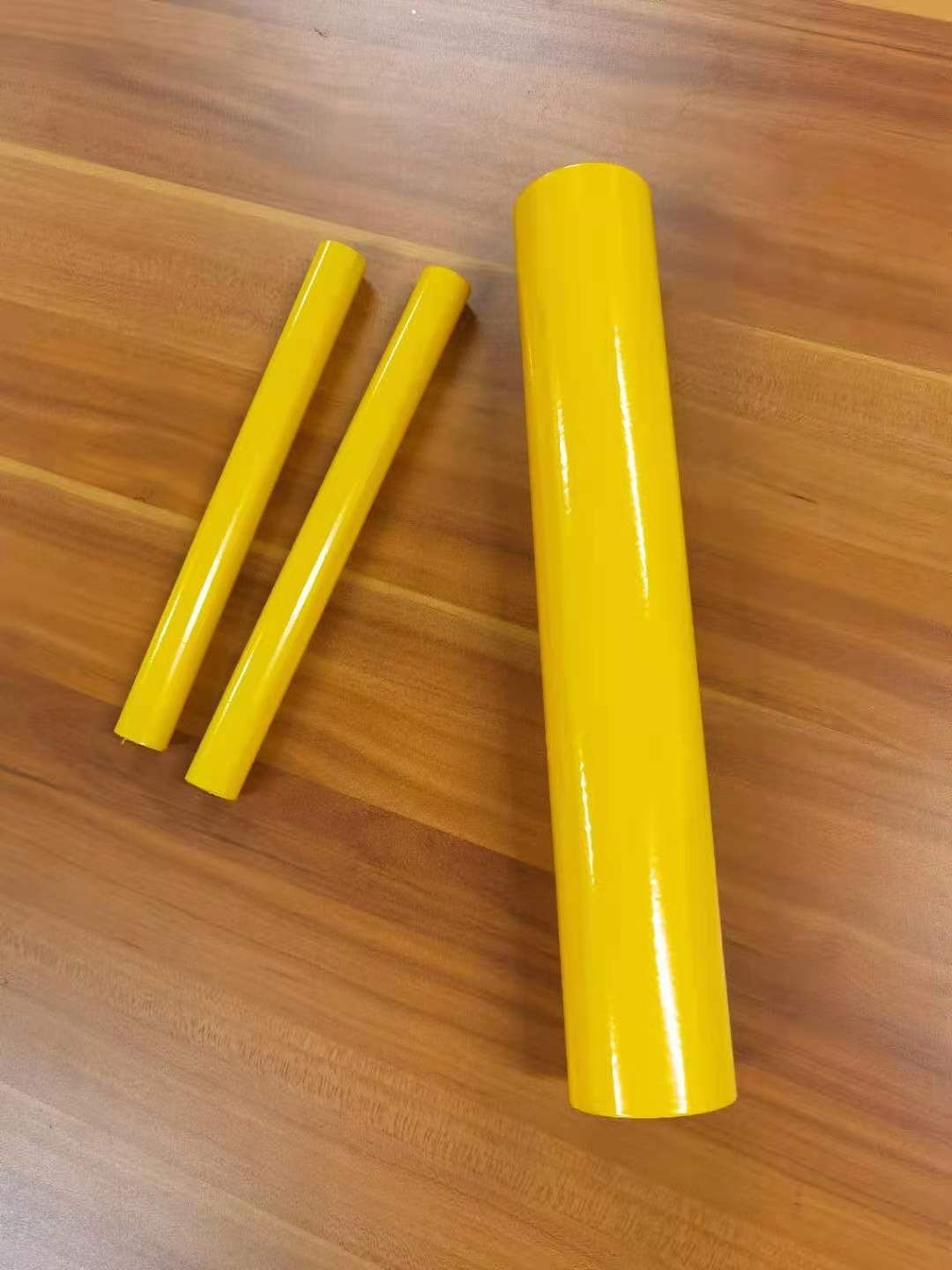

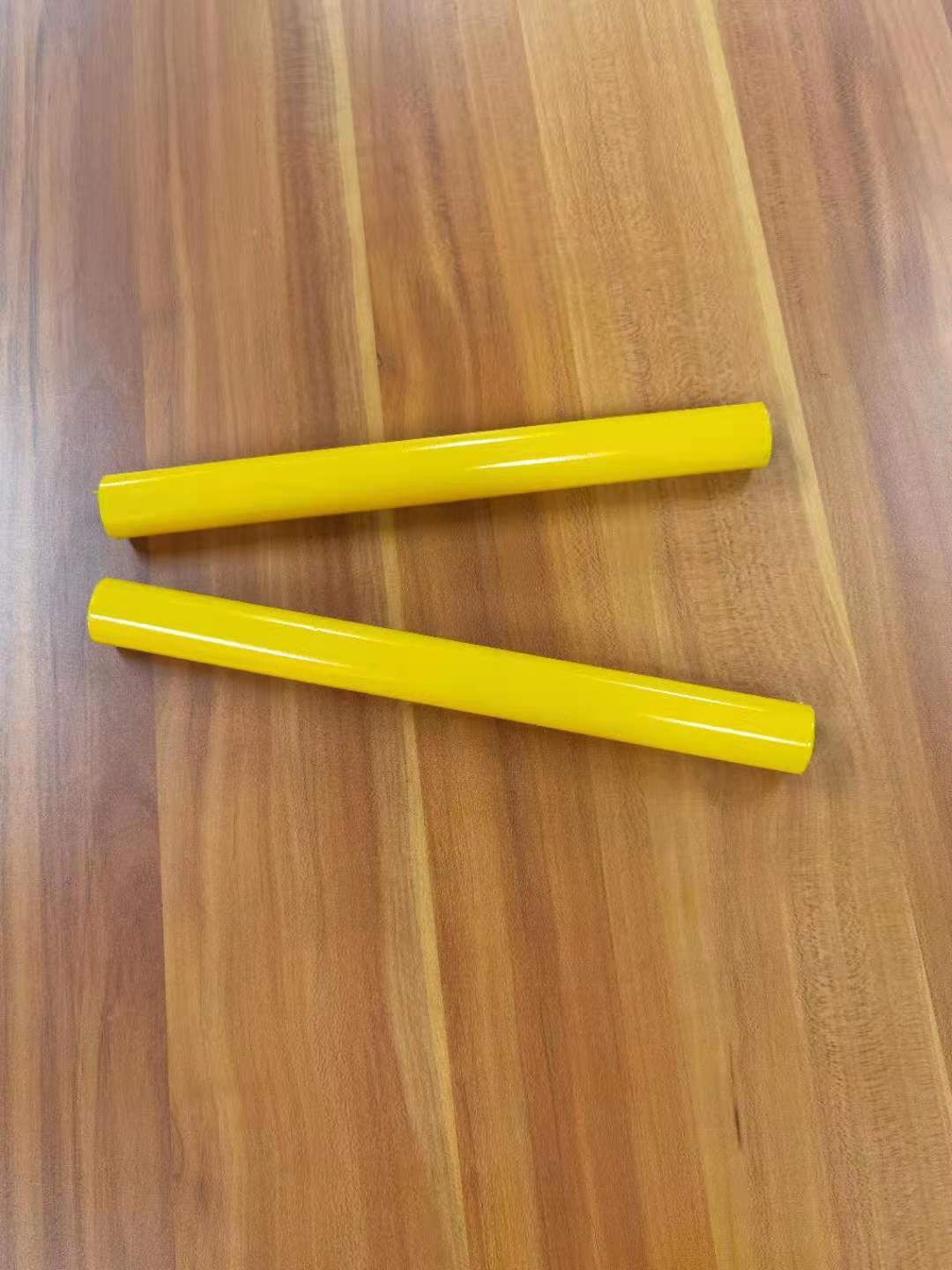

PVC Powder Coated Conduit Pipe
PVC Powder Coated Steel Tube 20mm-100mm available1. Standard: UL797 ANSI C80.3 UL Listed No.E469551 2. Material: STEEL GB/T 700: Q195/ ISO: HR2(σs195)/ OCT: CT1K/ JIS: SS330(SS34)(σs205)/ DIN: St33/ BS: 040A10/ NF: A33 3. Size: 1/2'', 3/4'', 1'', 1-1/4'......
Send Inquiry
Product Description
PVC Powder Coated Steel Tube
20mm-100mm available
1. Standard: UL797 ANSI C80.3 UL Listed No.E469551
2. Material: STEEL GB/T 700: Q195/ ISO: HR2(σs195)/ OCT: CT1K/ JIS: SS330(SS34)(σs205)/ DIN: St33/ BS: 040A10/ NF: A33
3. Size: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'',2-1/2",3",3-1/2",4"
4. Thickness: Standard & Thin both available.
5. Length: Normally is 10Inch/3050MM or required by the clients
6. Surface finish: Pre galvanized(Apply to Indoor use) & Hot Dip Galvanized(Apply to outdoor use)
7. Others required by the clients
8. MOQ: 20" Container.
9. Supply Ability:300-500Ton per month.
10. Payment:L/C,T/T
Exterior Construction
EMT is is made from high-grade rolled steel, and the surface is coated with a clear zinc chromate. The coating helps prevent corrosion in outdoor installations or harsh climatic conditions. The EMT is easily cut and bent to fit most any application.
Applications
EMT is approved for installation in both indoor and outdoor environments. The conduit can be left exposed or concealed within a wall or other structure. EMT is also approved for hazardous locations and all types of climatic conditions.
EMT/IMC & Rigid Conduit Available
Surface finished: Pre-Galvanized
Electrical Metallic Tubing(EMT)-is commonly used instead of galvanized rigid conduit(GRC),as it is less costly
and lighter than IMC/Rigid Conduit.
We also manufacture wall thickness and length according to client's requirement.
Standard size of EMT tube for the following:
Specifications
Most EMT is produced in compliance with the ANSI C80.3 code. While EMT meets general guidelines and requirements, there are various local codes and amendments that govern electrical work and the components involved. You should always consult local codes prior to beginning a project.
Item Code & Dimension:
| Characteristics & Diamention | LISTED | |||||||||
| FILE #.: E469551 | ||||||||||
| TRADE SIZE | ITEM No. | OUTSIDE DIAMETER | STANDARD | THIN WALL | QUANTITY | QUANTITY | GAL. | WEIGHT UL | ||
| US | METRIC | MIN | MAX | THICKNESS | THICK NONE UL | PER BUNDLE | PER LIFT | THICK | PER 3.05M | |
| 1/2" | 16.00 | RL-E460 | 17.88mm | 17.93mm | 1.07±0.05mm | 0.85mm | 10*10ft | 100*10ft | 40 micron | ±1.35kg |
| 3/4" | 21.00 | RL-E461 | 23.36mm | 23.42mm | 1.25±0.05mm | 0.90mm | 10*10ft | 100*10ft | 40 micron | ±2.08kg |
| 1" | 27.00 | RL-E462 | 19.49mm | 29.54mm | 1.45±0.05mm | 1.00mm | 10*10ft | 100*10ft | 40 micron | ±3.07kg |
| 1-1/4" | 35.00 | RL-E463 | 38.30mm | 38.35mm | 1.65±0.05mm | 1.25mm | 5*10ft | 50*10ft | 40 micron | ±4.55kg |
| 1-1/2" | 41.00 | RL-E464 | 44.15mm | 44.20mm | 1.65±0.05mm | 1.25mm | 5*10ft | 50*10ft | 40 micron | ±5.28kg |
| 2" | 53.00 | RL-E465 | 55.75mm | 55.80mm | 1.65±0.05mm | 1.25mm | 5*10ft | 30*10ft | 40 micron | ±6.72kg |
| 2-1/2" | 63.00 | RL-E466 | 72.98mm | 73.03mm | 1.83±0.05mm | 1.60mm | 1*10ft | 30*10ft | 40 micron | ±9.79kg |
| 3" | 78.00 | RL-E467 | 88.30mm | 88.90mm | 1.83±0.05mm | 1.60mm | 1*10ft | 20*10ft | 40 micron | ±11.98kg |
| 3-1/2" | 91.00 | RL-E468 | 101.00mm | 101.60mm | 2.11±0.05mm | 1.80mm | 1*10ft | 10*10ft | 40 micron | ±15.78kg |
| 4" | 103.00 | RL-E469 | 114.20mm | 114.30mm | 2.11±0.05mm | 1.80mm | 1*10ft | 10*10ft | 40 micron | ±17.81kg |

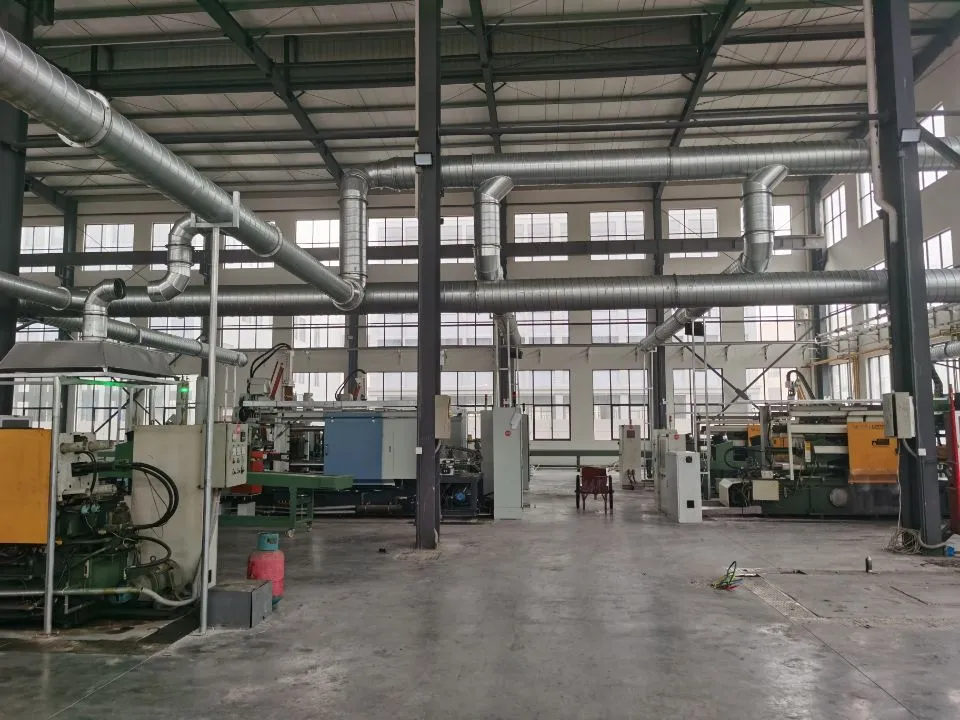

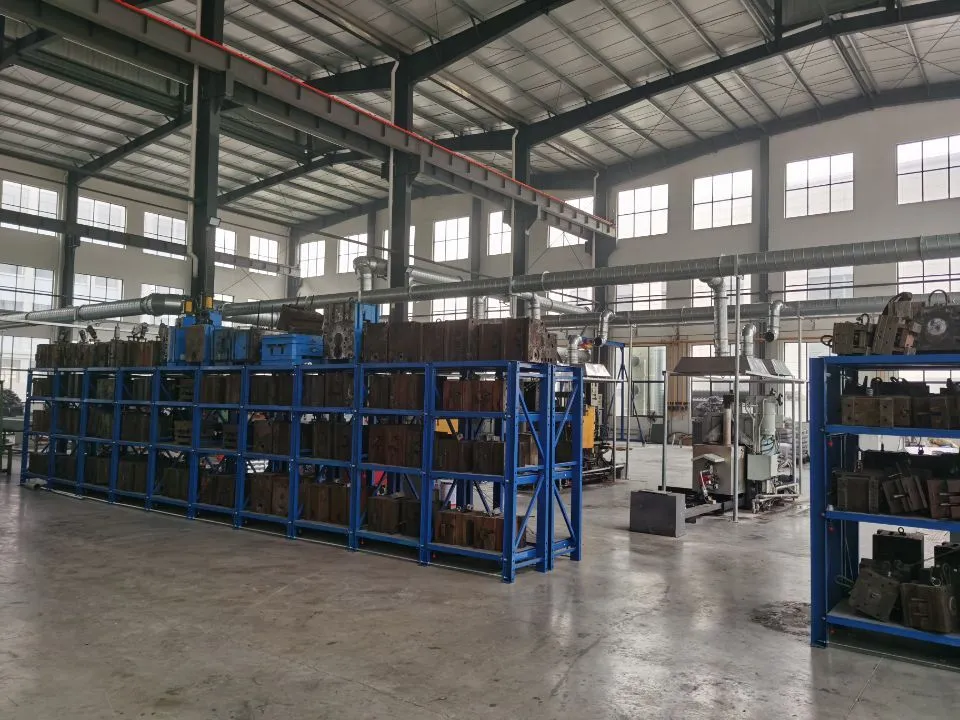

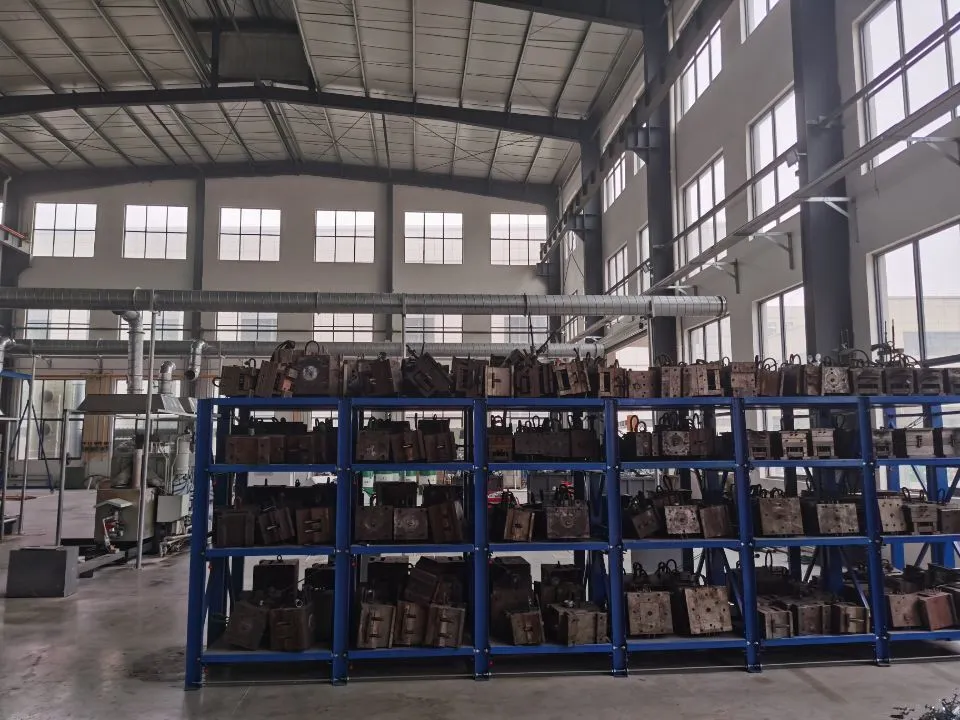

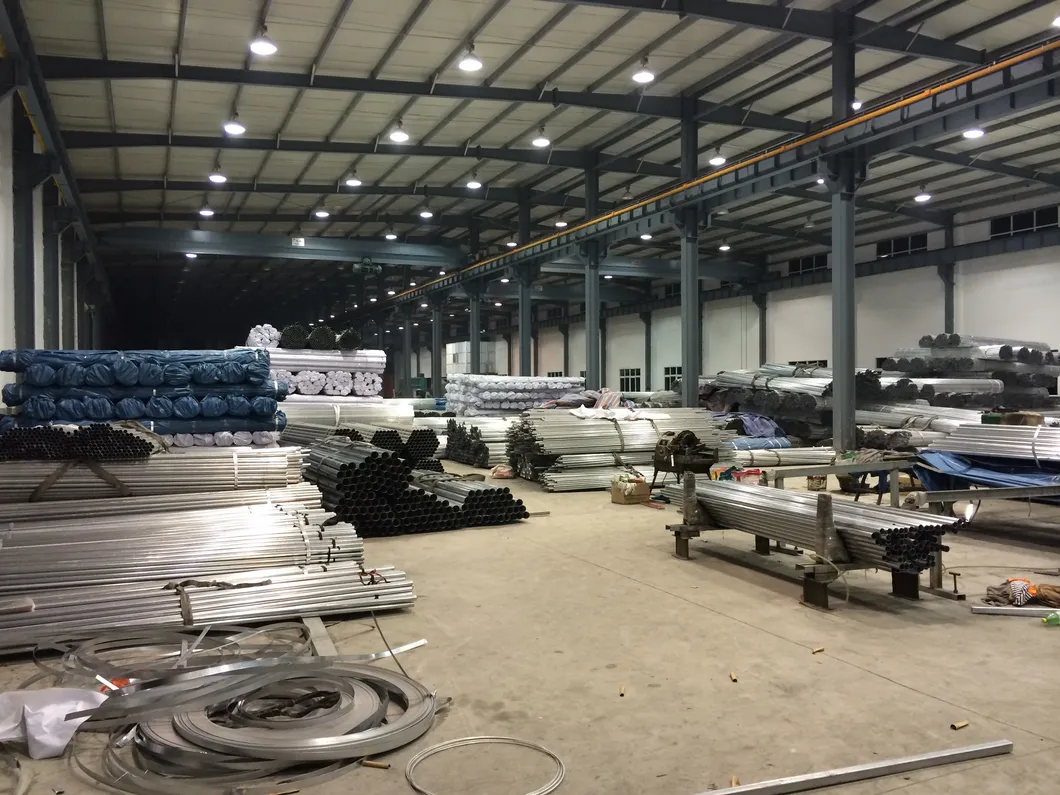

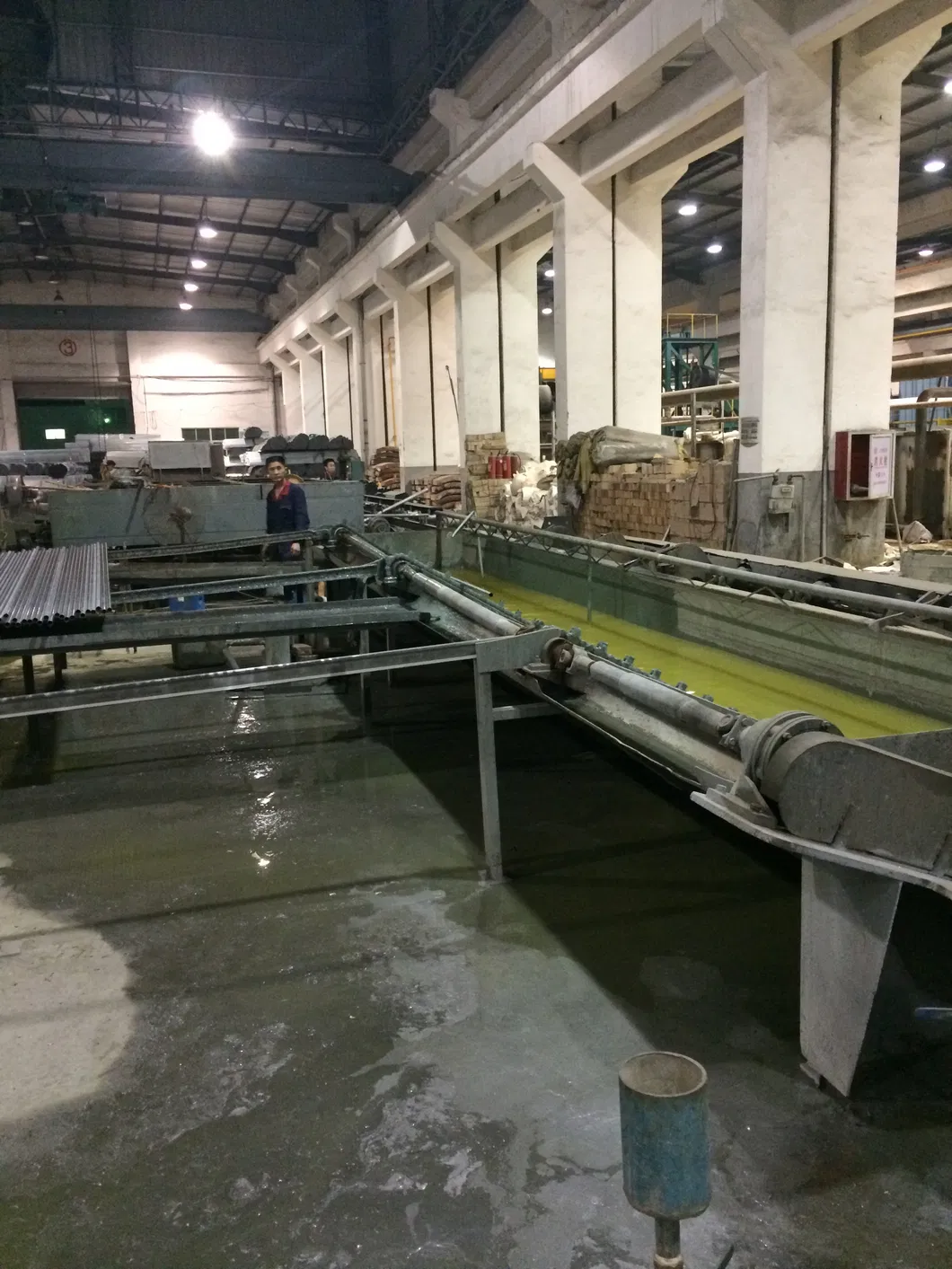

Factory Overview:
