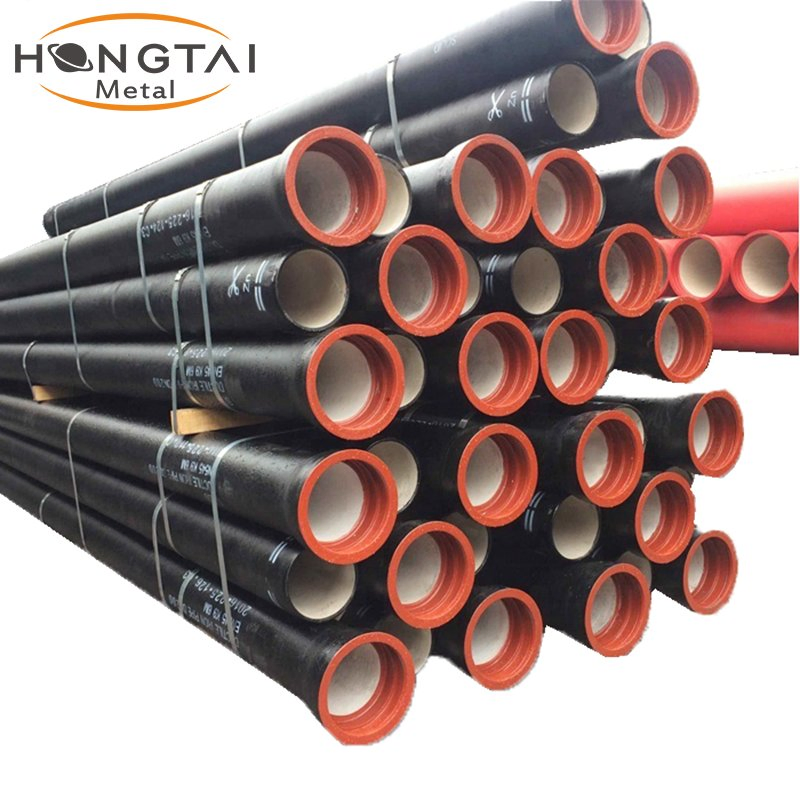

ISO2531, En545, En598 Bitumen Coated Ductile Cast Iron Pipes
Product Description NameDuctile iron water supply pipeMaterialC, Si, Mn, P, S, MgLength6m or customizedColorBlack AdvantageAnti-corrosion; Various types; Anti-infiltration; Anti-aging; Good duralbilityProcessingpitch coated outside, Cement mortar lining1.Standard:ISO2531,EN545,EN598,ANSI/AWWA,C151/A......
Send Inquiry
Product Description
Name | Ductile iron water supply pipe |
Material | C, Si, Mn, P, S, Mg |
Length | 6m or customized |
Color | Black |
Advantage | Anti-corrosion; Various types; Anti-infiltration; Anti-aging; Good duralbility |
Processing | pitch coated outside, Cement mortar lining |
1.Standard:ISO2531,EN545,EN598,ANSI/AWWA,C151/A21
2.Effective Length:6m/5.7m
3.Internal Lining :Ordinary Portland Cement ,Sulphate resistant cement ,High-aluminal Cement.
4.External coating:Zinc Primer Plus Bitumen or Expoxy Paiting
5. Shipment: By bulk ship or 20'/40' containr
6. Rubber: NBR, SBR, EPDM according to ISO4633/EN681.1
| DN(mm) | DE(mm) | THICKNESS OF WALL(mm) | WEIGHT OF SOCKET(kg) | TOTAL WEIGHT(kg) | ||||
| K8 | K9 | K10 | 3.4 | K8 | K9 | K10 | ||
| 80 | 98 | 6.0 | 6.0 | 6.0 | 4.3 | 77.0 | 77.0 | 77.0 |
| 100 | 118 | 6.0 | 6.0 | 6.0 | 5.7 | 93.7 | 95.0 | 95.0 |
| 125 | 144 | 6.0 | 6.0 | 6.0 | 7.1 | 119.0 | 119.0 | 121.0 |
| 150 | 170 | 6.0 | 6.O | 6.0 | 10.3 | 138.0 | 144.0 | 144.0 |
| 200 | 222 | 6.0 | 6.3 | 6.4 | 18.9 | 183.0 | 194.0 | 194.0 |
| 300 | 326 | 6.4 | 7.2 | 8.0 | 23.7 | 290.0 | 323.0 | 357.0 |
| 350 | 378 | 6.8 | 7.7 | 8.5 | 29.5 | 359.0 | 403.0 | 441.0 |
| 400 | 429 | 7,2 | 8.1 | 9.0 | 38.3 | 433.0 | 482.0 | 532.0 |
| 450 | 480 | 7.6 | 8.6 | 9.5 | 42.8 | 515.0 | 577.0 | 632.0 |
| 500 | 532 | 8.0 | 9.0 | 10.0 | 59.3 | 600.0 | 669.0 | 736.0 |
| 600 | 635 | 8.8 | 9.9 | 11.0 | 79.1 | 791.0 | 882.0 | 971.0 |
| 700 | 738 | 9.6 | 10.8 | 12.0 | 102.6 | 1009.0 | 1123.0 | 1237.0 |
| 800 | 842 | 10.4 | 11.7 | 13.0 | 129 | 1255.0 | 1394.0 | 1537.0 |
| 900 | 945 | 11.2 | 12.6 | 14.0 | 161.3 | 1521.0 | 1690.0 | 1863.0 |
| 1000 | 1048 | 12.0 | 13.5 | 15.0 | 237.7 | 1811.0 | 2017.0 | 2221.0 |

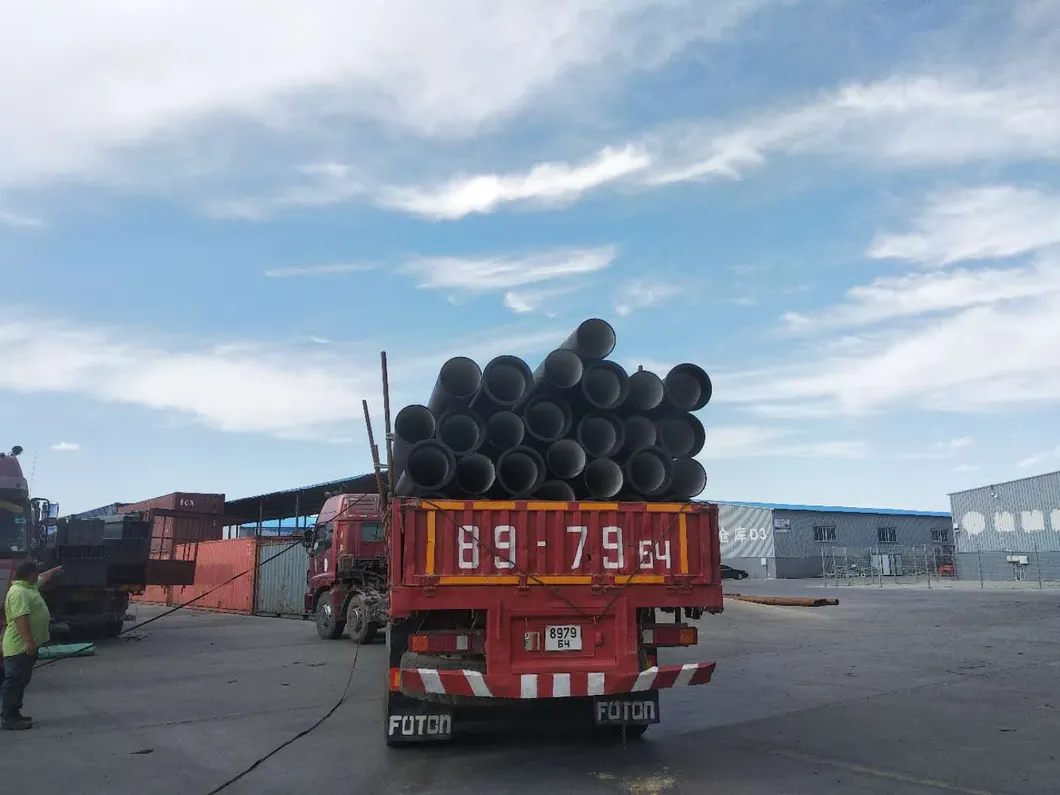

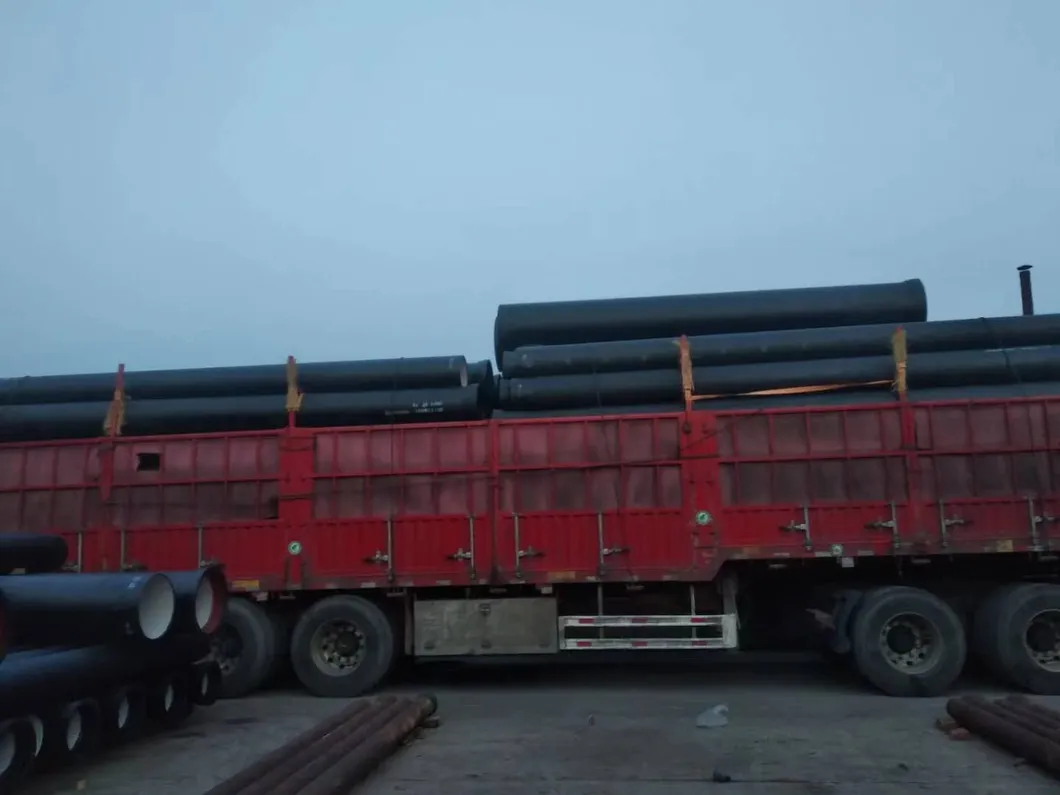

Packing and shipping
1.Export sea worthy package + water proof paper + wooden pallet
2.Max Loading 26.5mt for each 20Gp container
3.Safe loading and fixing Professional teams
4.Professional shipping line
Delivery:5-7 days after confirming the order or according to your order quantity
Port of shipment:shanghai
Remark: Insurance is all risk and accept the third party test.

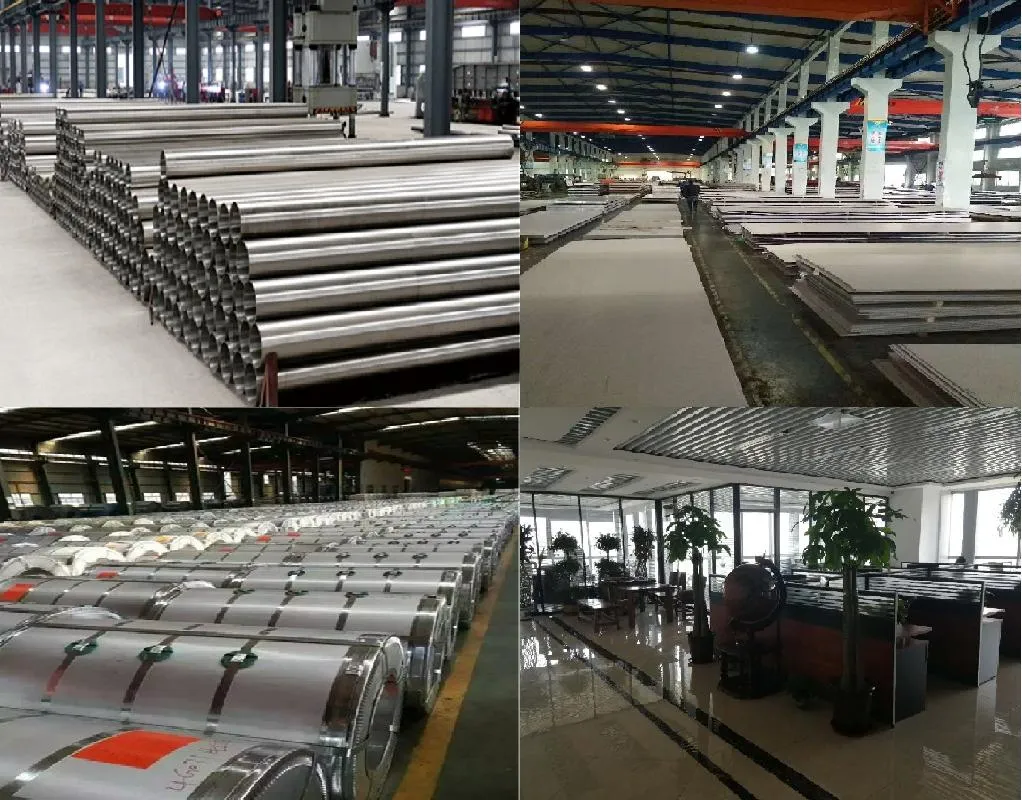

million yuan. It is a specialized steel sales company integrating domestic trade and foreign trade.
The company's products include stainless steel, seamless pipe, color coated plate, galvanized sheet, aluminized sheet, aluminum
sheet, copper sheet and other profiles, building materials, pipe series. Products are widely used in chemical, pharmaceutical,
electric power, railway, automotive, paper and construction engineering. The company has long-term close trade relations with
Shandong Iron and Steel, Tangshan Iron and Steel, Handan Iron and Steel, Jinxi Iron and Steel and other well-known domestic steel
companies.
The company has advanced wms, crm management system to ensure that our customers in the product consulting, procurement, ordering,
use in the whole process without worry! Over the years, our company has won the trust of our customers with high-quality products,
first-class service and ultra-low price. With the favor, our products are spread all over the country! Thanks to the support of
new and old customers, Hongqiao people will work harder and enterprising, and return more customers with better and more efficient
services!
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4:What is the advantage about your company?
A4:Our company has professional team and professional production line.
Q5: The logo and the color can be customized?
A5: Yes, we welcome you to sample custom
Q6: Any other good service your company can provide?
A6:Yes,we can provide good after-sale and fast delivery.
