DIN2391 E355 En10297 E355 E325 E275 E235 E470 16mn Seamless Steel Pipe

Product Description

Congratulations you find us the best supplier ↓
We do care:
--Good Quality
--On-time Delivery
--Competitive Price
--Efficient After Service

Why you choose us?
1. more than 20 years experiences in steel business
2. good quality
3. competitive price
4. meet your needs via reprocessing
5. excellent service
6. short delivery time
7. long mutual beneficial business cooperation

Product description

Product Name	DIN 2391 E355 EN10297 E355 E325 16mn Seamless Steel Pipe
Size	OD	3/4"--48
	Thickness	3mm-45mm
	Length	SRL,DRL,5.8M,11.8M
Steel Material	ASTM A53/A106,API 5L,EN10216,DN162ASTM A179 A192 A210
Steel Grade	Grade A,Grade B,Grade C,X42,X52.S235JRH,S355,P265 ect.

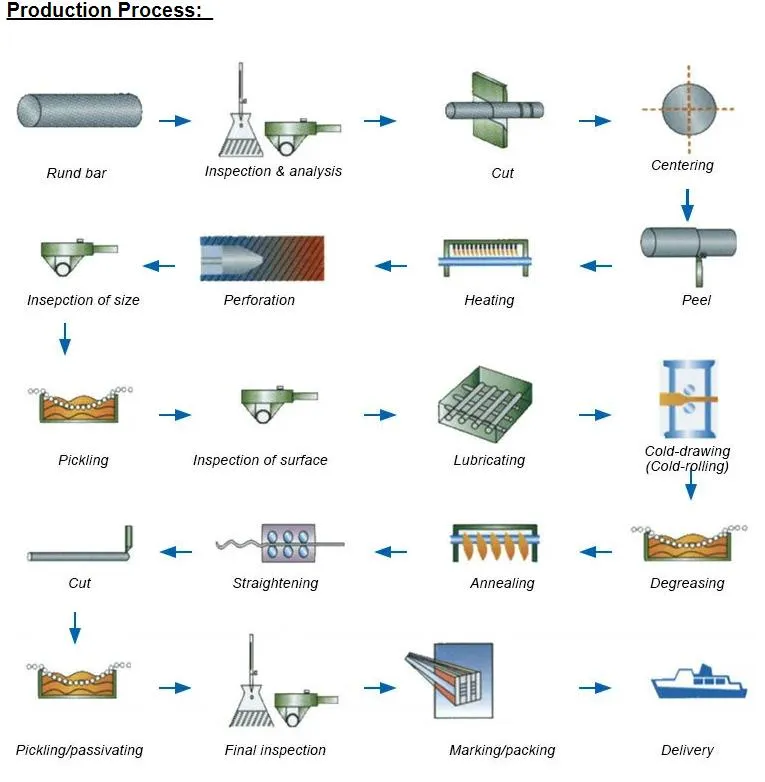

Process	Hot rolled/hot expansion/cold drawn/cold rolled
Usage	High temperature service
Surface	Bared Black Painting, Galvanized,Coating
Proctor	Plastic cap
Package	Bundles, Bulk
Inspection	With Hydraulic Testing, Ultrasonic testing or X-ray Test
Certificate	ISO9001;2000
Date of Delivery	Less Than 15/20/25/30/40/50/60 Days According To The Quantity
Payment:	L/C or T/T
Port of Shipment	Xingang,China

Standard: API5L PSL 1 & PSL 2 Steel Grade:GrB to X70 Size and OD: 1/2"-152"(21.3mm-3800mm) Wall Thickness: SCH10... STD,SCH40,SCH80...SCH160,XS,XXS.
Standard	Steel Grade	Chemical Components								Machanical Property
Standard	Steel Grade	C	Mn	Cr	Mo	P	S	Ni	Cu	Tensile Strength (Mpa)	Yield Strength(Mpa)
API Spec 5L PLS1	B	≤0.28	≤1.20	≤0.50	≤0.15	≤0.030	≤0.030	≤0.50	≤0.50	≥415	≥245
	X42	≤0.28	≤1.30	≤0.50	≤0.15	≤0.030	≤0.030	≤0.50	≤0.50	≥415	≥290
	X46	≤0.28	≤1.40	≤0.50	≤0.15	≤0.030	≤0.030	≤0.50	≤0.50	≥435	≥320
	X52	≤0.28	≤1.40	≤0.50	≤0.15	≤0.030	≤0.030	≤0.50	≤0.50	≥460	≥360
	X56	≤0.28	≤1.40	≤0.50	≤0.15	≤0.030	≤0.030	≤0.50	≤0.50	≥490	≥390
	X60	≤0.28	≤1.40	≤0.50	≤0.15	≤0.030	≤0.030	≤0.50	≤0.50	≥520	≥415
	X65	≤0.28	≤1.40	≤0.50	≤0.15	≤0.030	≤0.030	≤0.50	≤0.50	≥535	≥450
	X70	≤0.28	≤1.40	≤0.50	≤0.15	≤0.030	≤0.030	≤0.50	≤0.50	≥570	≥485

Standard	Steel Grade	Chemical Components								Machanical Property
Standard	Steel Grade	C	Mn	Cr	Mo	P	S	Ni	Cu	Tensile Strength (Mpa)	Yield Strength(Mpa)
API Spec 5L PLS2	BN	≤0.24	≤1.20	≤0.30	≤0.15	0.025	0.015	≤0.30	≤0.50	415-655	245-450
	X42N	≤0.24	≤1.20	≤0.30	≤0.15	0.025	0.015	≤0.30	≤0.50	415-655	290-495
	X46N	≤0.24	≤1.40	≤0.30	≤0.15	0.025	0.015	≤0.30	≤0.50	435-655	320-525
	X52N	≤0.24	≤1.40	≤0.30	≤0.15	0.025	0.015	≤0.30	≤0.50	460-760	360-530
	X56N	≤0.24	≤1.40	≤0.30	≤0.15	0.025	0.015	≤0.30	≤0.50	490-760	390-545
	X60N	≤0.24	≤1.40	≤0.50	≤0.50	0.025	0.015	≤0.50	≤0.50	520-760	415-565
	X65Q	≤0.18	≤1.70	≤0.50	≤0.50	0.025	0.015	≤0.50	≤0.50	535-760	450-600
	X70Q	≤0.18	≤1.80	≤0.50	≤0.50	0.025	0.015	≤0.50	≤0.50	570-760	485-635

ASTM A53 /A106 Chemical Components and Machanical Property

Standard

Steel Grade

Chemical Components

Machanical Property

C

Mn

P

S

Cu

Ni

Cr

Mo

V

Tensile Strength (Mpa)

Yield Strength(Mpa)

Elongation (Mpa)

ASTM A53

A

≤0.25

≤0.95

≤0.05

≤0.045

≤0.40

≤0.15

≤0.08

≥330

≥205

≥29.5

B

≤0.30

≤1.20

≤0.05

≤0.045

≤0.40

≤0.15

≤0.08

≥415

≥240

≥29.5

Standard

Steel Grade

Chemical Components

Machanical Property

C

Si

Mn

P

S

Cu ,Ni

Cr

Mo

V

Tensile Strength (Mpa)

Yield Strength(Mpa)

Elongation (Mpa)

ASTM A106

B

≤0.30

≥0.10

0.29-1.06

≤0.035

≤0.40

≤0.15

≤0.08

≥415

≥240

≥30

C

≤0.35

≥0.10

0.29-1.06

≤0.035

≤0.40

≤0.15

≤0.08

≥485

≥275

≥30

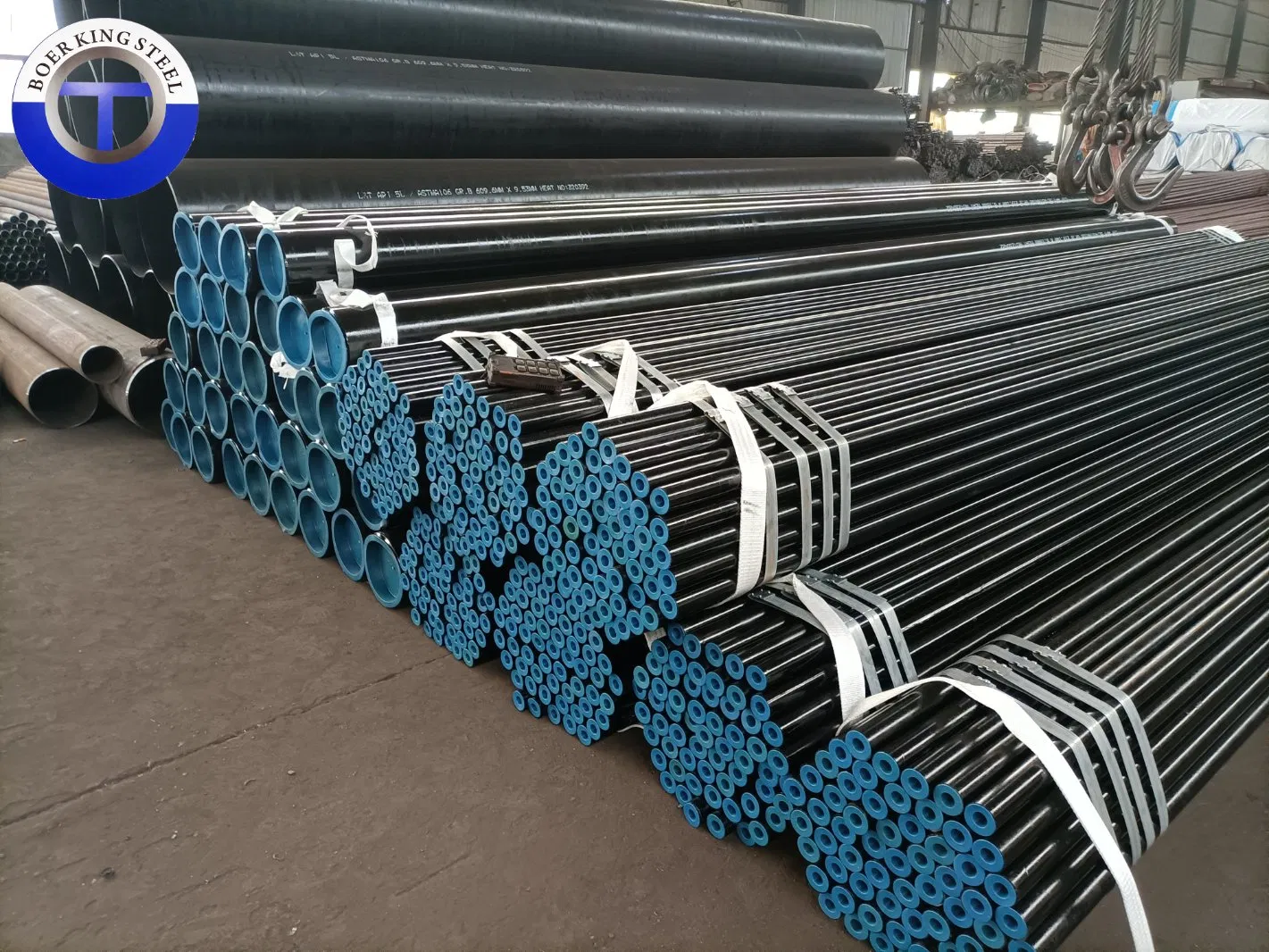

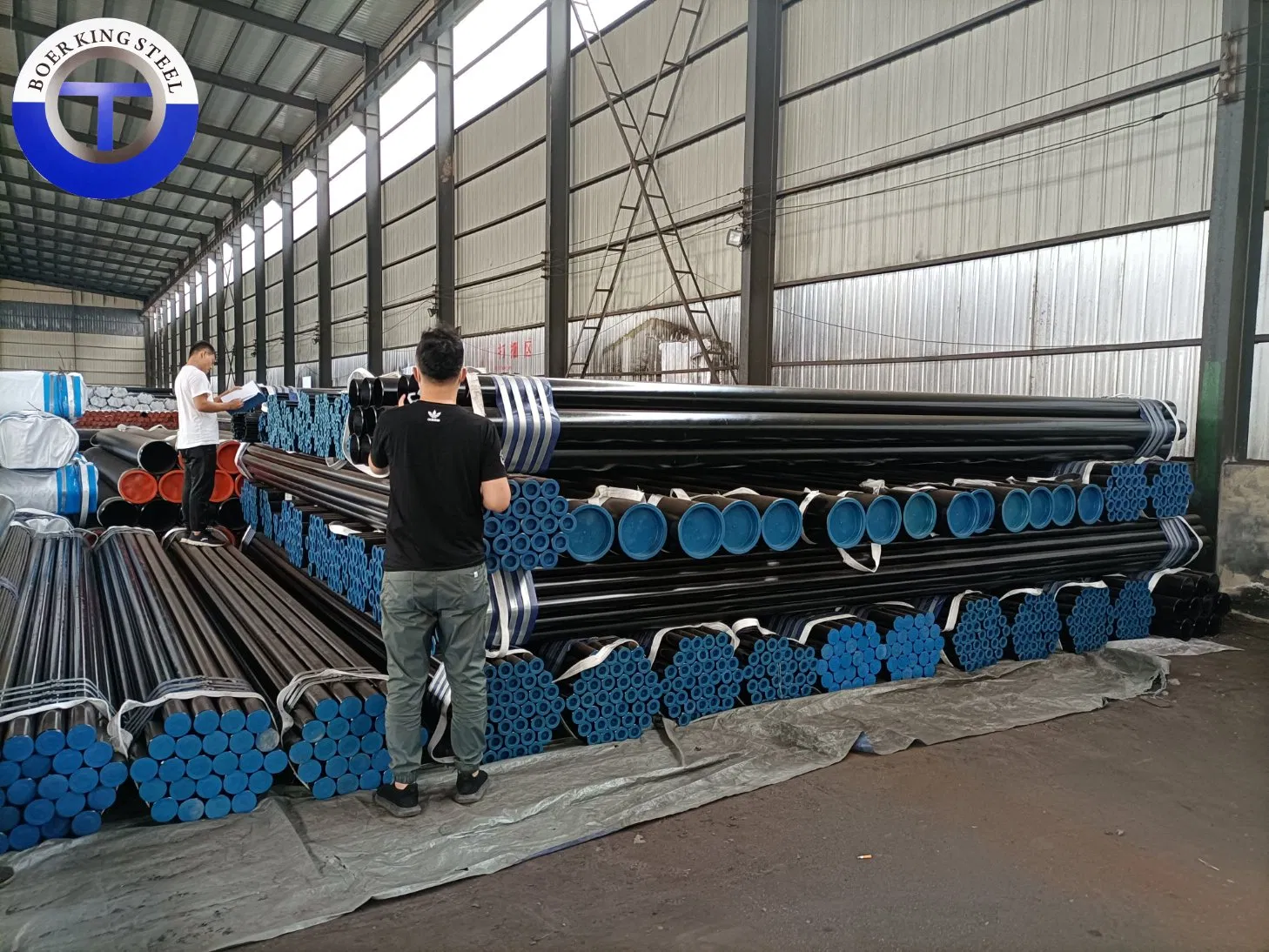

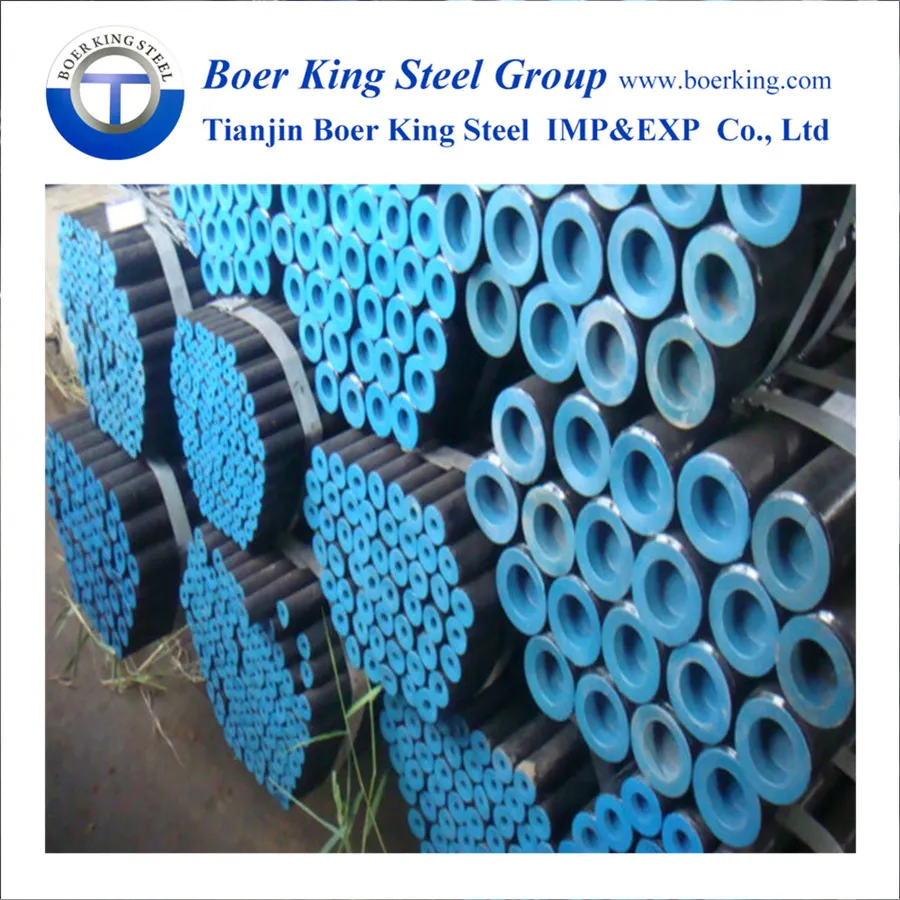

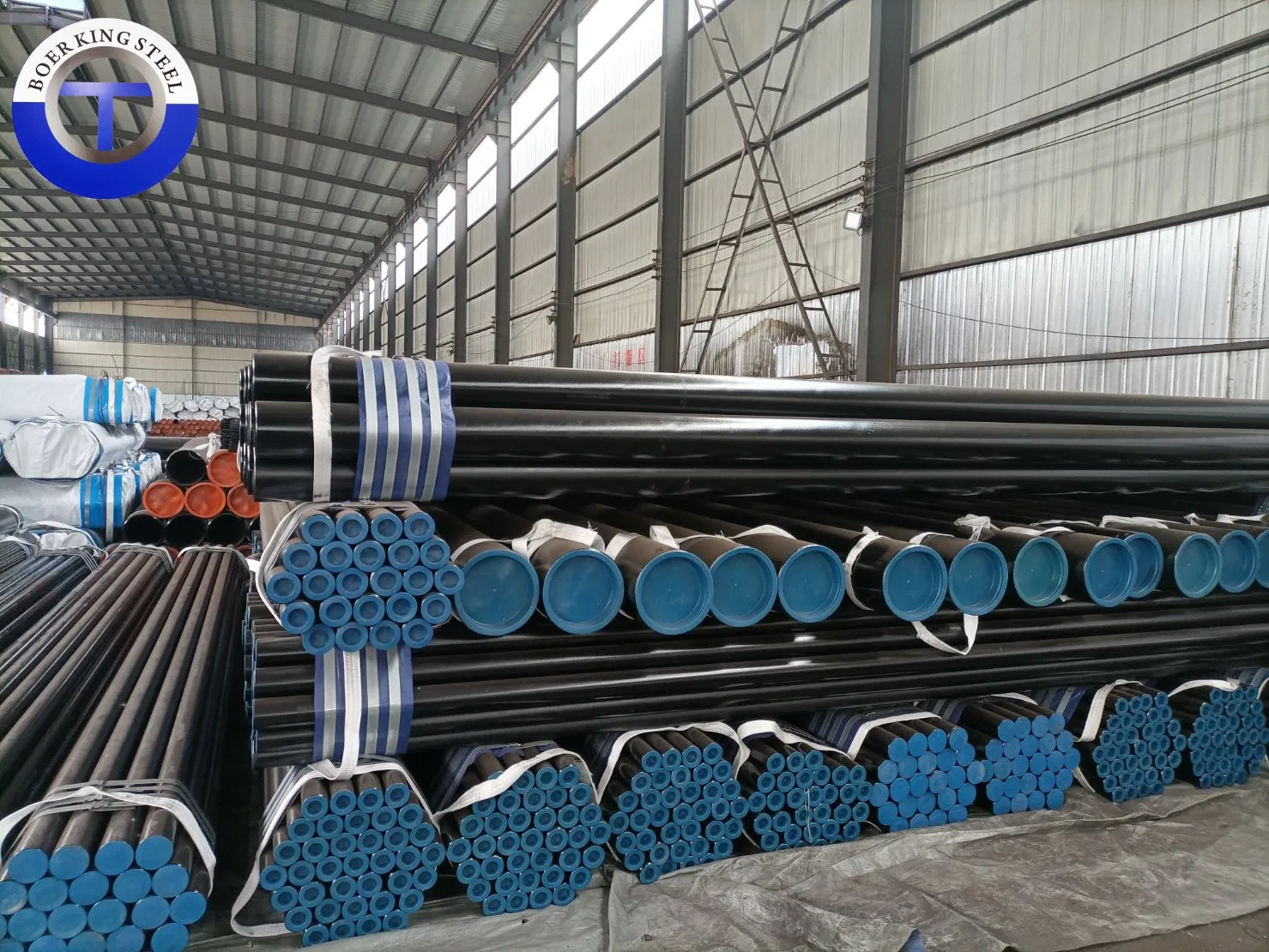

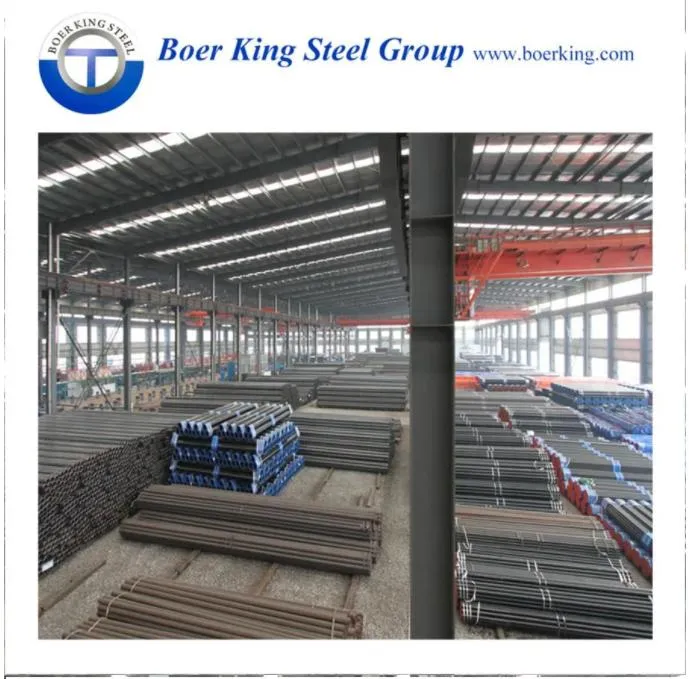

Products display

DIN2391 E355 En10297 E355 E325 E275 E235 E470 16mn Seamless Steel Pipe

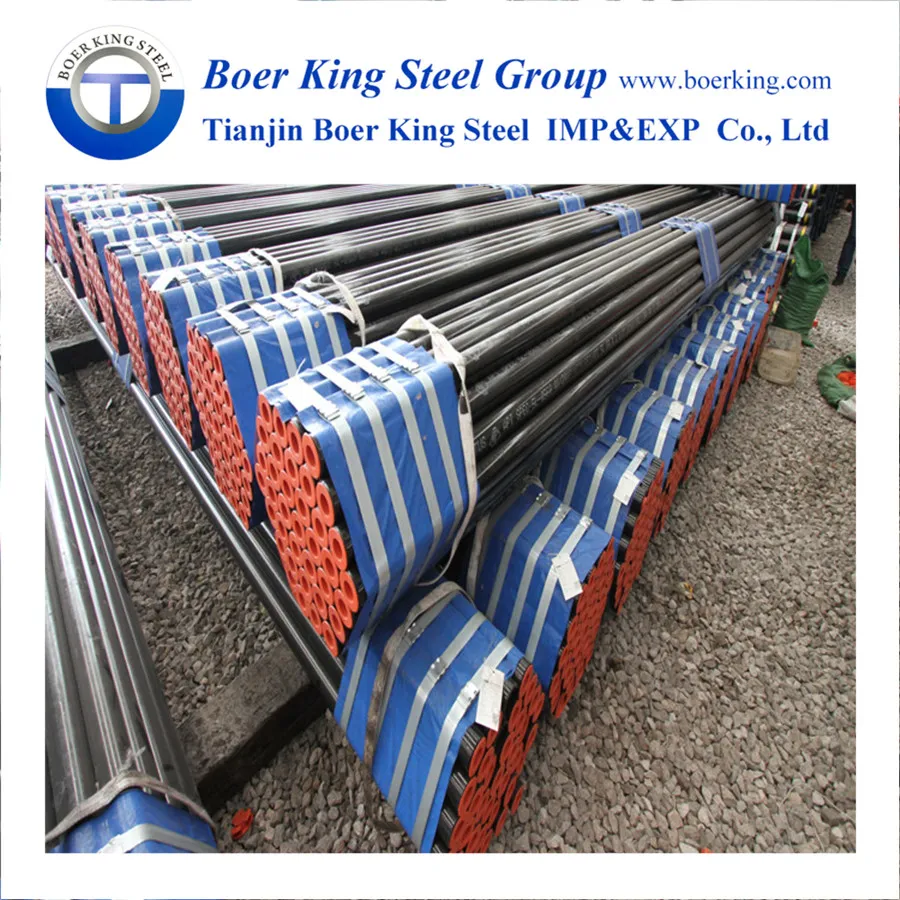

Packing and shipping

DIN2391 E355 En10297 E355 E325 E275 E235 E470 16mn Seamless Steel Pipe

Company information

Tianjin Boer King Steel is a professional trading company and has been in steel industry for more than 15years, specializing in seamless steel pipe,oil casing/drill pipe, galvanized steel pipe, stainless steel pipe,ERW/SSAW/LSAW/ welded pipe.

Also we sale hot and cold rolled steel coils,steel plates,galvanized steel coils, all kinds of profiles like H-beam, Angel bar,C profile etc.

We have established long term cooperations with several famous steel manufactures all over the world, and we can offer you best quality products with competitive price which will give you an edge over your competitors.

Besides, we offer best service all the time.We will do our best to satisfy you needs for the products. Our products have been sold in many countries and areas of the world including South America, Iran, Kenya, Israel etc, and our export volume reaches 160,000tons per year.

We execute quality gurantee system ISO 9001,2008 strictly and all certicates and the third party inspection like MTC,API,ABS,ISO9001,SGS BV etc. will be provided as client's requirements.

DIN2391 E355 En10297 E355 E325 E275 E235 E470 16mn Seamless Steel Pipe
