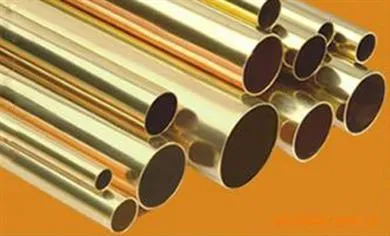

DIN 1785 Cuzn28sn Admiralty Brass Tubes, CZ111 Uns C44300 Brass Tube Heat Exchanger
DIN 1785 CuZn28SN Admiralty Brass Tubes, Cz111 Uns C44300 Brass Tube heat exchanger Specifications C44300 Heat exchanger brass tube/copper pipe 1)Outer Diameter: 2mm-300mm 2) Wall thickness:0.5 - 80 mmUNS No.C44300 - BSI ......
Send Inquiry
Product Description
DIN 1785 CuZn28SN Admiralty Brass Tubes, Cz111 Uns C44300 Brass Tube heat exchanger
Specifications
C44300 Heat exchanger brass tube/copper pipe
1)Outer Diameter: 2mm-300mm
2) Wall thickness:0.5 - 80 mm
Specifications
C44300 Heat exchanger brass tube/copper pipe
1)Outer Diameter: 2mm-300mm
2) Wall thickness:0.5 - 80 mm
UNS No. | C44300 - BSI No. CZ111 ISO Name CuZn28Sn1 |
| Chemical Comp. (%) | Cu 70 ~ 73 / Sn 0.9 ~ 1.2 / Pb 0.07 / Fe 0.06 max / Zn rem / As 0.02 ~ 0.06 |
| ASTM Spec. | B 111, B 395 |
| ASME Spec. | SB 111, SB 395 |
| Applications | Condenser, Evaporator and Heat Exchanger tubes; Distiller tubing. |
| Temper | O61 Annealed |
Properties * | Metric | English |
| Density | 8.53 g/cc | 0.308 lb/in³ |
| Tensile Strength, min. | 310 MPa | 45 ksi |
| Yield Strength, min. | 105 MPa | 15 ksi |
| CTE, linear | 20.2 10-6/°C @ 20.0 - 300 °C | 11.2 10-6/°F @ 70.0 - 570 °F |
| Specific Heat Capacity | 0.09 cal/g-°C @ 20ºC | 0.09 BTU/lb-°F @ 70ºF |
| Thermal Conductivity | 109 W/m-K @ 20.0 °C | 64 BTU/ft2/ft/h/°F @ 70.0 °F |
| Melting Point | 899 ~ 938 °C | 1650 ~ 1720 °F |
