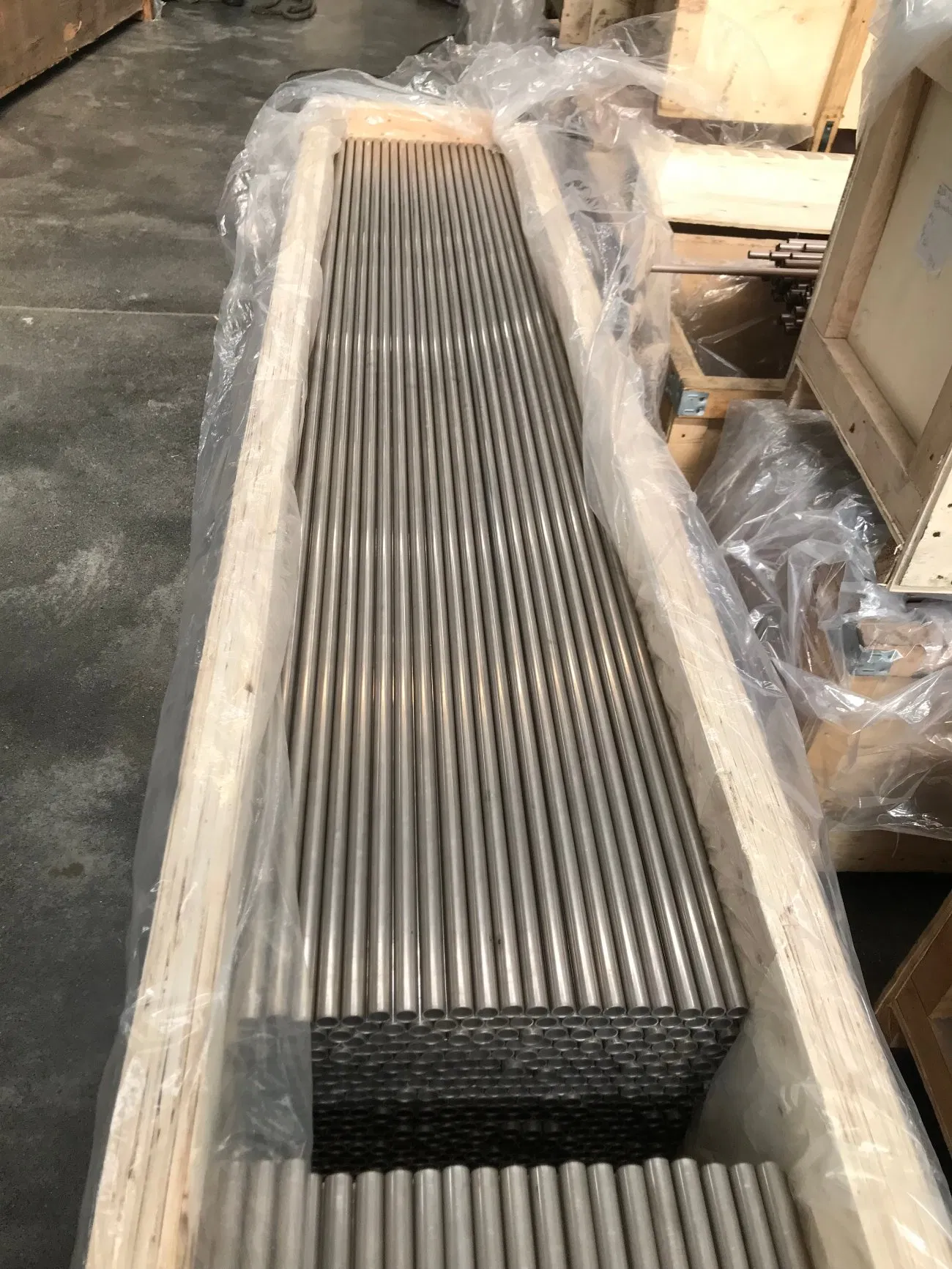

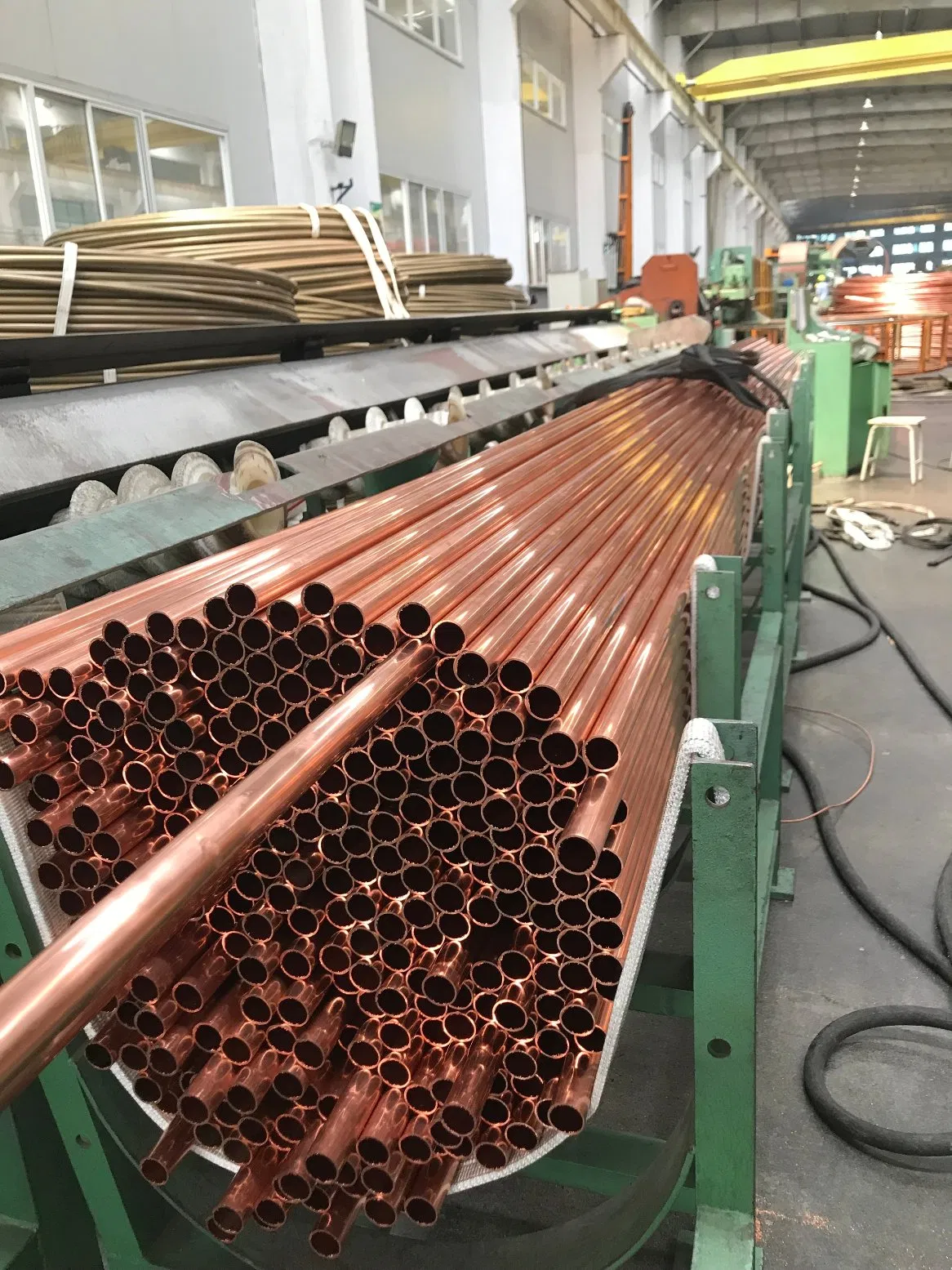

CuNi 90/10 70/30 C70600 Seamless Copper Nickel Tube
Copper-Nickel Alloy tube:1)Up to GB/T8890/ASTM B111/JIS H3300/BS EN12451 standards and so on.2)Material designation: BFe10-1-1 / C70600 / C7060X / CuNi10Fe1Mn / CuNi9010 / Cu90Ni10 and BFe30-1-1 / C71500 / CuNi30Mn1Fe / CuNi7030 / Cu70Ni30 or other alloyMaterial Brand of Copper-Nickel Alloy tube:Gra......
Send Inquiry
Product Description
Copper-Nickel Alloy tube:
1)Up to GB/T8890/ASTM B111/JIS H3300/BS EN12451 standards and so on.
2)Material designation: BFe10-1-1 / C70600 / C7060X / CuNi10Fe1Mn / CuNi9010 / Cu90Ni10 and BFe30-1-1 / C71500 / CuNi30Mn1Fe / CuNi7030 / Cu70Ni30 or other alloy
Material Brand of Copper-Nickel Alloy tube:
3)Tubes temper: All tempers are available (Goods supply state: Annealed condition)
4)Dimensions: Outer diameter:5-419mm, Wall thickness: 0.5-10mm or according to the buyers' requirements, and also length and tolerance subject to the buyer's decisions.
5) Tubes in good straightness, with clean surface of both inside and outside

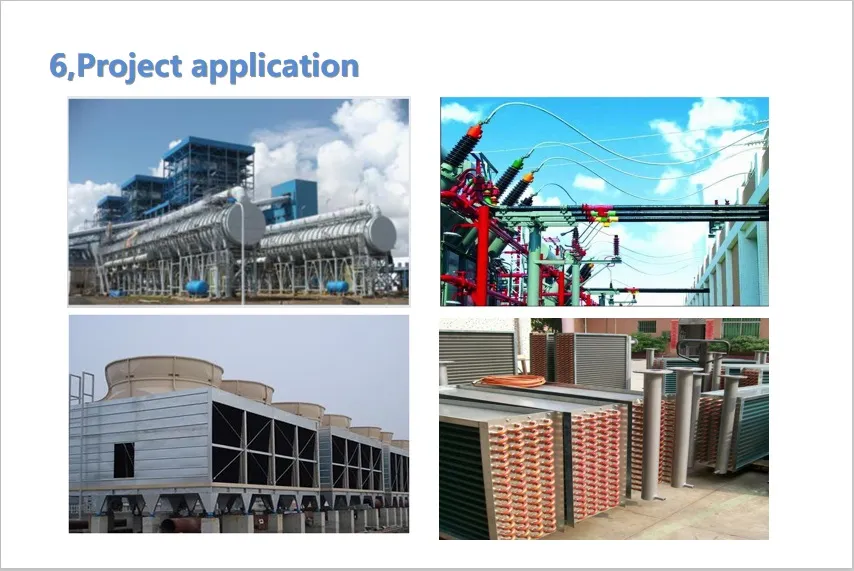

6)Application range: Copper-Nickel Alloy tube for condenser and heat-exchangers, Water Evaporators, Boiler Blowdown Heat Exchangers, air coolers, Gland Steam Condensers, Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After Coolers, Ferrules, Oil Well Pump Liner, Distiller , Marine Industry , and Nuclear Power etc.
C70600 Copper Nickel "90/10"ASTM B151, MIL C15726F, SAE J461, SAE J463C70600 (C706) & C71500 (C715), Copper nickel offers excellent corrosion resistance, especially in marine salt water environments. The main, wrought copper-nickel alloys chosen for sea water service contain 10 or 30 percent nickel. They also have important additions of iron and manganese which are necessary to maintain good corrosion resistance.Typical Uses for C706 Copper Nickel "90/10":AUTOMOTIVE: Power Steering Tube, Brake Lines
CONSUMER: Screw Lamp Bases
INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators
MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses
PLUMBING: FlangesSizes Available From Hehong Precision(New Huahong Copper)TUBE&PIPE: 1/4" - 16" diameter , 6.35mm - 419mm diameter for seamless.
Bar:8-90,100,168mm diameter.
Copper-nickel UNS C70600 has a copper content of not less than 88.6%.
Tabulated below are the mechanical properties of UNS C70600 tubes as a function of heat treatment.
The chemical composition of UNS C70600 copper alloy is outlined in the following table.
Equivalent materials to UNS C70600 copper alloy are given in the table below.
FAQ
Q: How many days can you deliver after confirmed the order?
A: For stock: within 5-7 days;
For customized product: around 30 days;
For special sizes: subject to negotiation.
Q: How does your company do quality control?
A: ISO 9001:2015 certified;
Product certificate as per EN10204 3.1 or 3.2 as per customer's request.
Q: Can I have a factory-visit?
A: Surely. All customers are welcome to visit us in China.
Q: Can I have a trial order?
A: Of course, it is an honor for us to have the opportunity to show our quality and service.
1)Up to GB/T8890/ASTM B111/JIS H3300/BS EN12451 standards and so on.
2)Material designation: BFe10-1-1 / C70600 / C7060X / CuNi10Fe1Mn / CuNi9010 / Cu90Ni10 and BFe30-1-1 / C71500 / CuNi30Mn1Fe / CuNi7030 / Cu70Ni30 or other alloy

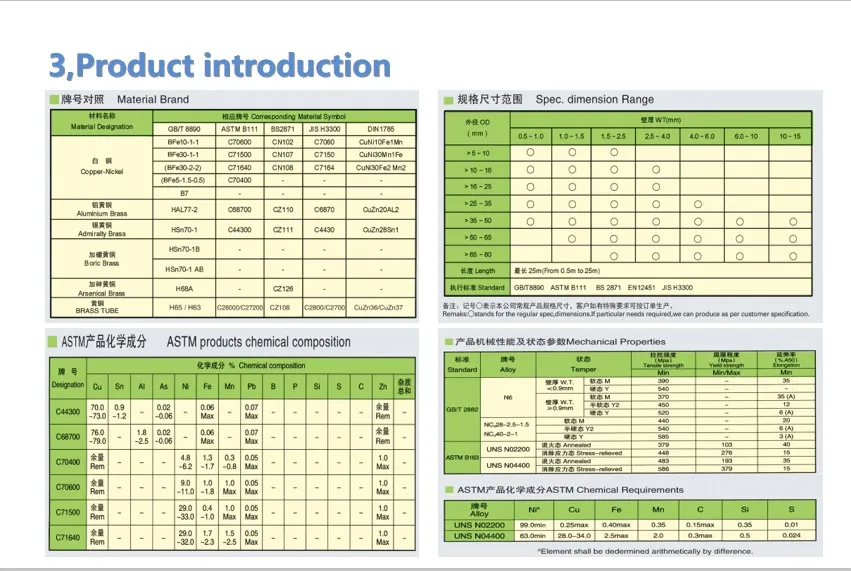

Material Brand of Copper-Nickel Alloy tube:
| Grade | USA | U.K | Germany | Japan |
| China BG | ASTM | BS | DIN | JIS H |
| BFe10-1-1 | C70600 | CN102 | CuNi10Fe1Mn | C7060 |
| BFe30-1-1 | C71500 | CN107 | CuNi30Mn1Fe | C7150 |
4)Dimensions: Outer diameter:5-419mm, Wall thickness: 0.5-10mm or according to the buyers' requirements, and also length and tolerance subject to the buyer's decisions.
5) Tubes in good straightness, with clean surface of both inside and outside
6)Application range: Copper-Nickel Alloy tube for condenser and heat-exchangers, Water Evaporators, Boiler Blowdown Heat Exchangers, air coolers, Gland Steam Condensers, Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After Coolers, Ferrules, Oil Well Pump Liner, Distiller , Marine Industry , and Nuclear Power etc.
C70600 Copper Nickel "90/10"ASTM B151, MIL C15726F, SAE J461, SAE J463C70600 (C706) & C71500 (C715), Copper nickel offers excellent corrosion resistance, especially in marine salt water environments. The main, wrought copper-nickel alloys chosen for sea water service contain 10 or 30 percent nickel. They also have important additions of iron and manganese which are necessary to maintain good corrosion resistance.Typical Uses for C706 Copper Nickel "90/10":AUTOMOTIVE: Power Steering Tube, Brake Lines
CONSUMER: Screw Lamp Bases
INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators
MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses
PLUMBING: FlangesSizes Available From Hehong Precision(New Huahong Copper)TUBE&PIPE: 1/4" - 16" diameter , 6.35mm - 419mm diameter for seamless.
Bar:8-90,100,168mm diameter.
Copper-nickel UNS C70600 has a copper content of not less than 88.6%.
Tabulated below are the mechanical properties of UNS C70600 tubes as a function of heat treatment.
| Temper | Tensile Str. | Yield Str. | Elong. | Rockwell | |||
| B | C | F | 30T | ||||
| H55 | 414MPa (60ksi) | 393MPa (57ksi) | 10% | 72 | - | 100 | 70 |
| OS025 | 303MPa (44ksi) | 110MPa (16ksi) | 42% | 15 | - | 65 | 26 |
| Elements | Content (%) |
| Nickel, Ni | 9.0-11.0 |
| Iron, Fe | 1.0-1.8 |
| Zinc, Zn | 1.0 |
| Manganese, Mn | 1.0 |
| Lead, Pb | 0.05 |
| Copper, Cu | Remainder |
| ASME SB111 | ASME SB171 | ASME SB359 | ASME SB466 | ASME SB467 |
| ASME SB395 | ASME SB543 | ASTM B111 | ASTM B151 | ASTM B122 |
| ASTM B171 | ASTM B359 | ASTM B395 | ASTM B432 | ASTM B466 |
| ASTM B469 | ASTM B543 | ASTM B608 | DIN 2.0872 | MIL C-15726 |
| MIL T-15005 | MIL T-16420 | MIL T-22214 | SAE J461 | SAE J463 |
Q: How many days can you deliver after confirmed the order?
A: For stock: within 5-7 days;
For customized product: around 30 days;
For special sizes: subject to negotiation.
Q: How does your company do quality control?
A: ISO 9001:2015 certified;
Product certificate as per EN10204 3.1 or 3.2 as per customer's request.
Q: Can I have a factory-visit?
A: Surely. All customers are welcome to visit us in China.
Q: Can I have a trial order?
A: Of course, it is an honor for us to have the opportunity to show our quality and service.
