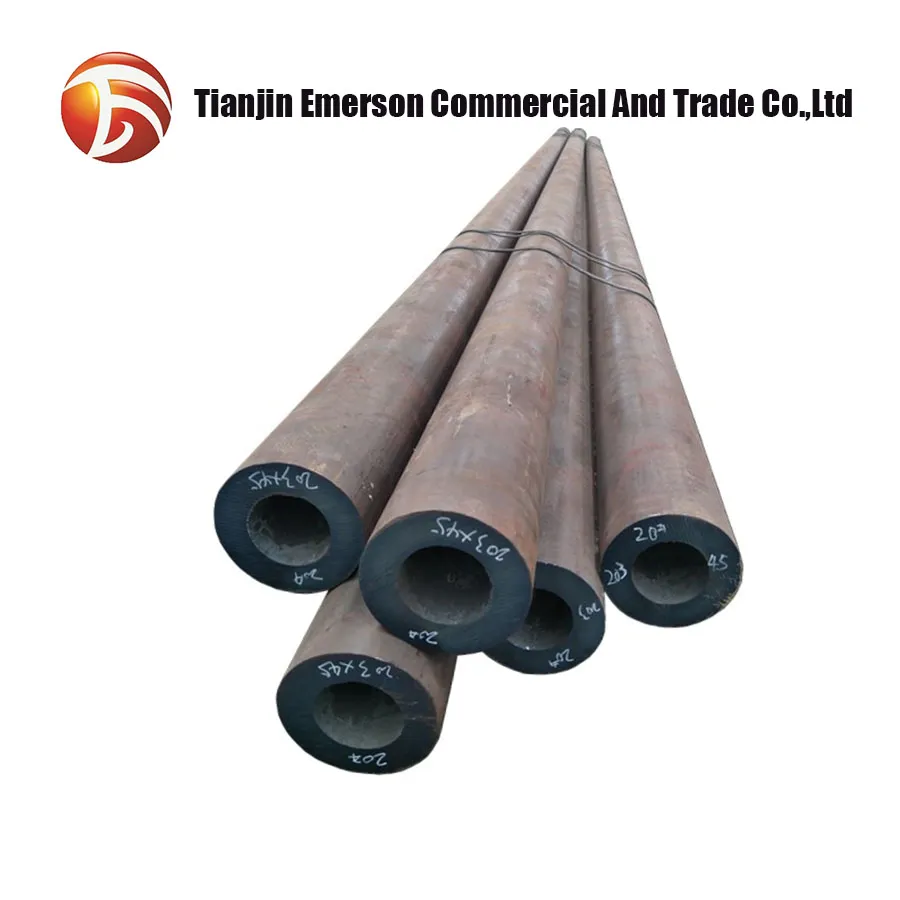

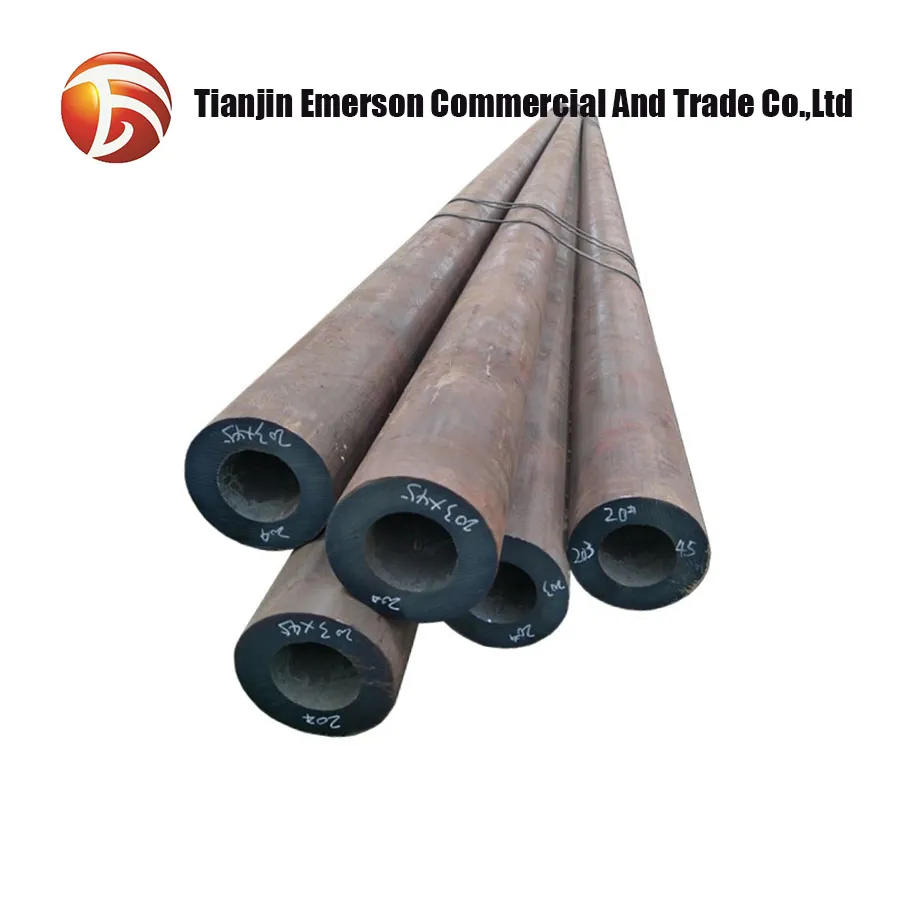

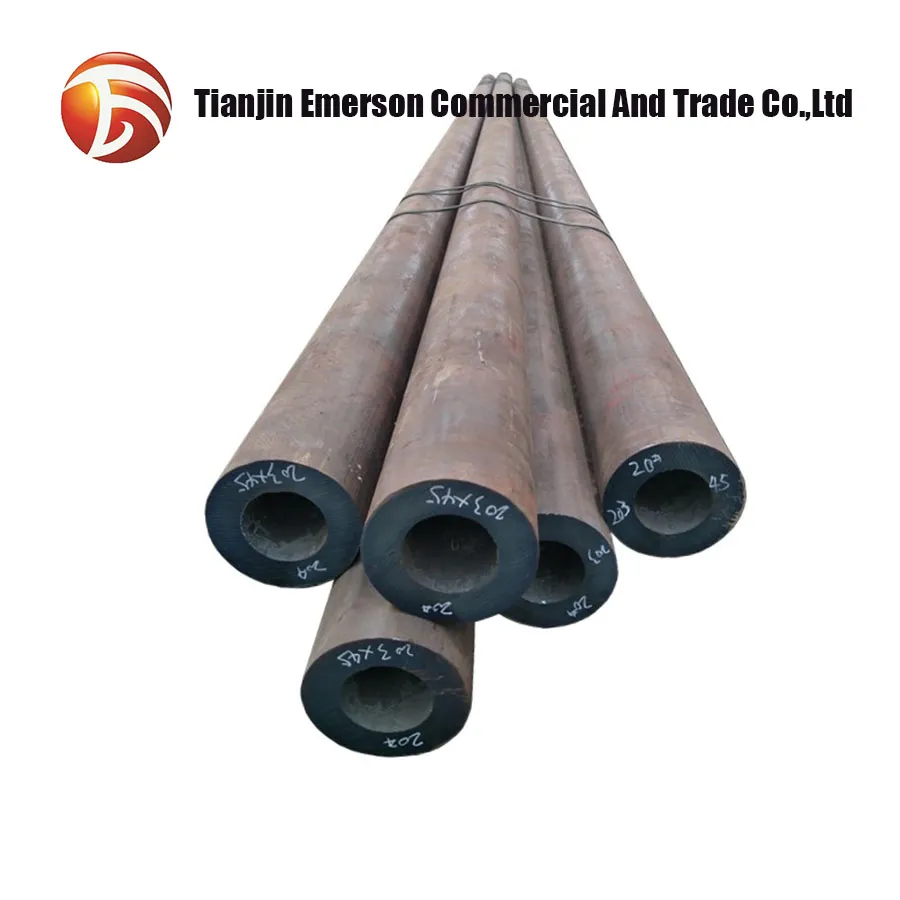

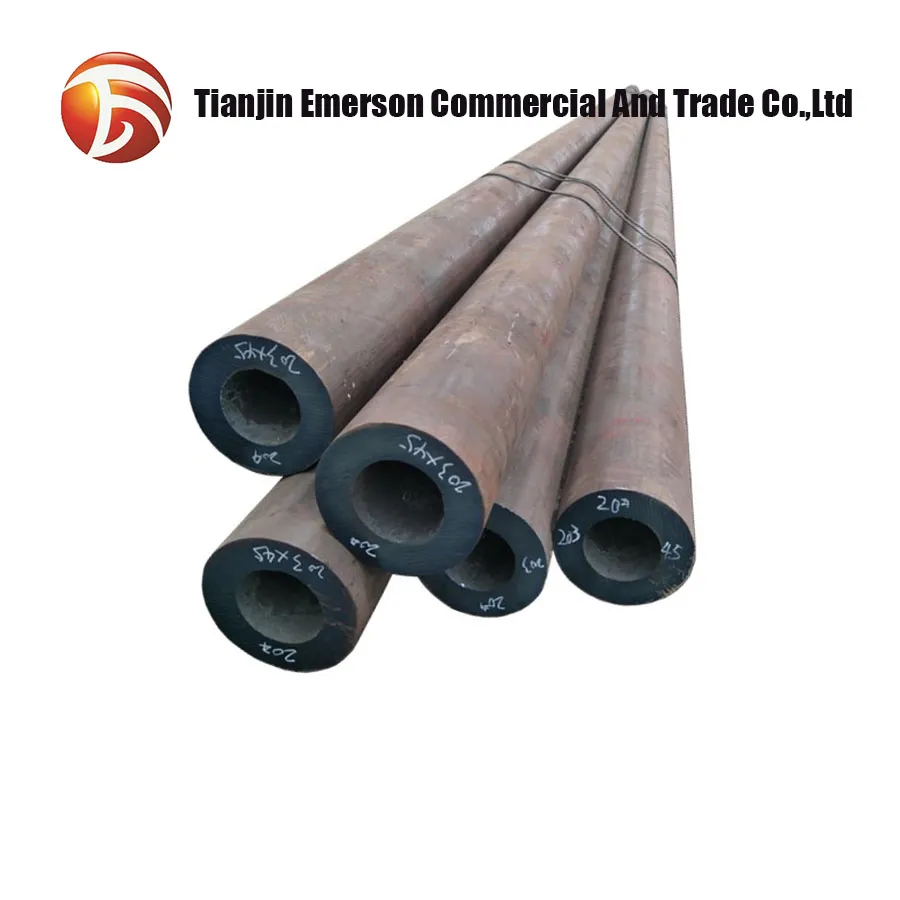

China Black Oiled Cold Drawn Carbon Steel Pipe A106b A53 1045 1020 Seamless Steel Pipe

Product Description

seamless pipes grades and production methods
1. Round bar making Hollow Bar
according to customer's demanded material to produce the round bar, then making annealled heat treatment, then drill the hole as customer demanded inner diameter into the round bar, round bar piercing, making rough hole, then make precision processing to make outer diameter and inner diameter as requested. Any size hollow bar can be produced as demanded.

Tolerance for hollow round bar, forged round bar drilling hole hollow bar ASME SA530

Type	Outer diameter(inner diameter)	Allowed tolerance	Wall thickness allowed tolerance
Outer diameter	≥219-457.2mm	-0.8 - +2.4mm	-0.8 - +4.0mm
	>457.2-660.4mm	-0.8 - +3.2mm
	>660.4-863.6mm	-0.8 - +4.0mm
	>863.6mm	-0.8 - +4.8mm
Inner diameter	All size	-1.6- 0mm	0 - +3.2mm

length tolerance -0 - +50mm
Round bar making Hollow bar cost is high
2. Hot rolled Hollow Bar
using hot rolled steel pipe billet to make heating and piercing, elongating, sizing and stranghtening, cooling, finally hollow bars finished, this is the type most commonly used. Because it is hot rolled, so cost is lowest, but it is suit for large quantity, for small quantity, have to make cold drawn or round bar piercing. size: outer diameter 32mm- 499mm, wall thickness 4mm- 80mm
3. Cold drawn Hollow Bar
for outer diameter not over than 63.5mm, small size hollow bar, when demanded quantity is under 5 tons, usually make cold drawn hollow bar, using larger size hot rolled hollow bar to draw to the size demanded.
some size can be finished only by one time drawing, but some other sizes might need twice or three times to finish drawing, it takes time, so the cost is higher.
cold drawn size outer diameter 32mm- 63.5mm
4. Hot- expanding Hollow Bar
For hollow bar sizes are special, not common sizes, have to use smaller thick wall hollow bar to hot expand to be larger size hollow bar, but the technical property for hot-expanded hollow bar will be lower than the original hollow bar. Size: outer diameter over 356mm.
the seamless pipe grades can be supplied
Seamless Steel pipe grades

Descriptions	Grades
Structural pipe	20# 35# 45# Q345B, 16Mn, Q345B-E, 20Mn2, 25Mn, 30Mn2, 40Mn2, 45Mn2 SAE1018, SAE1020, SAE1518, SAE1045.
Liquid pipe	20# q295b-e, q345b-e
High pressure boiler tube	20G 15MnG 20MnG 15CrMoG, 12Cr1MoVG St35.8, sa106b, sa106c, sa210a, sa210c, A333P2, A333P11, A33P12, A333P22, A33P36, A333P91, A333P92, A335T2, A335T11, A335T12, A335T22, A335T91, A335T23, A335T9
Pipeline	API SPEC 5L, X42, X52, X60, X65,X70,X80 ASTMA53, ASTM A106, ASTM A333, BS301, BS3602, BS3603, BS3604, PSL1, PSL2, DNV-OS-F101, CSA-Z245
Alloy pipe	4140, 42CrMo, 32CrMo, 15CrMo,
Packing	Black paint, Varnish painting, Tarpaulin packing
End	Common round end, beveled.
Processing	Galvanizing; cutting; making thread outside the pipe; Machining.
outer diameter	16mm- 800mm
wall thickness	4mm- 80mm

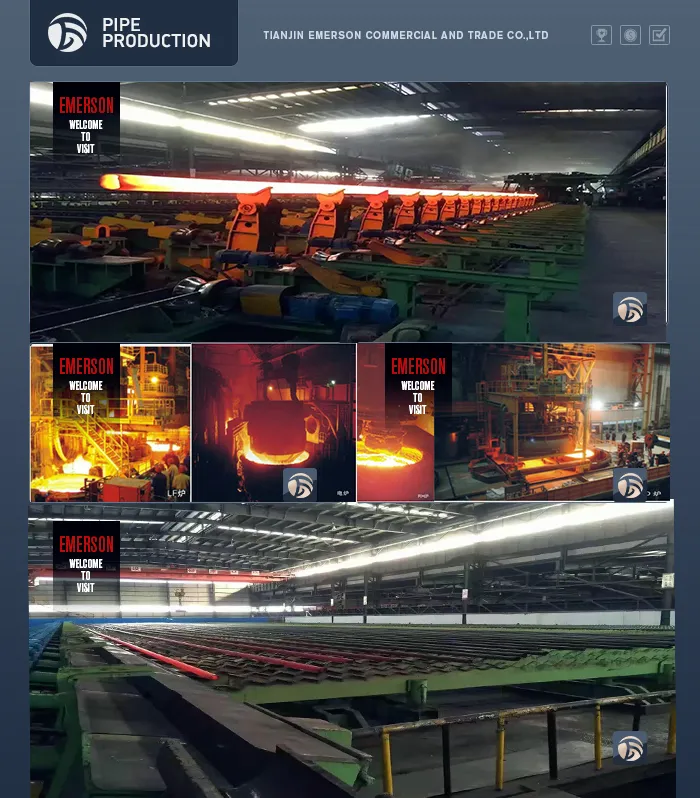

seamless pipe production
Black Oiled Cold Drawn Carbon Steel Pipe A106b A53 1045 1020 Seamless Steel Pipe

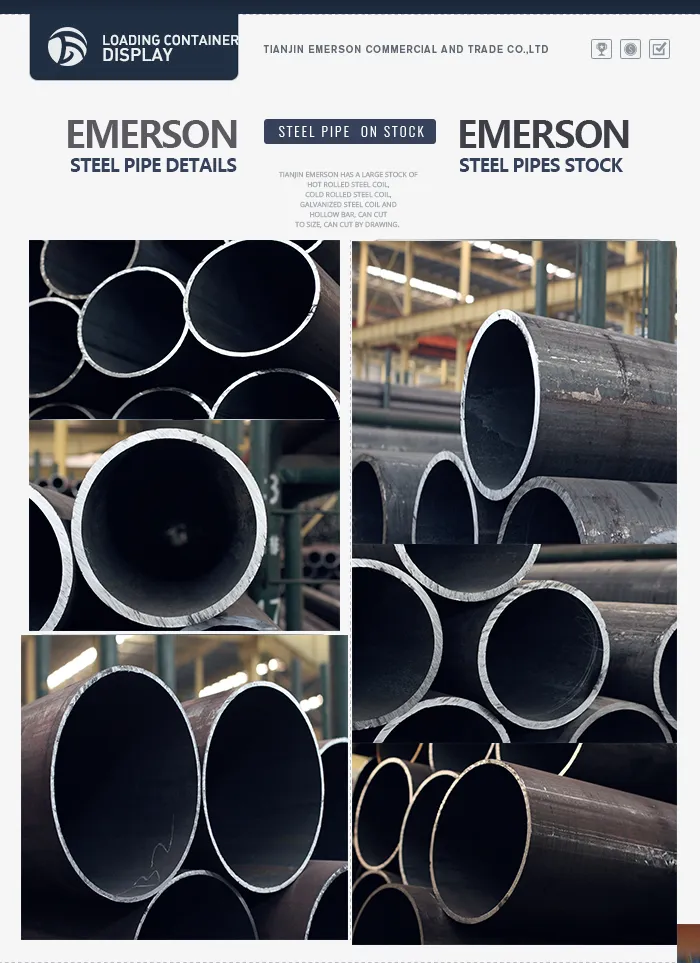

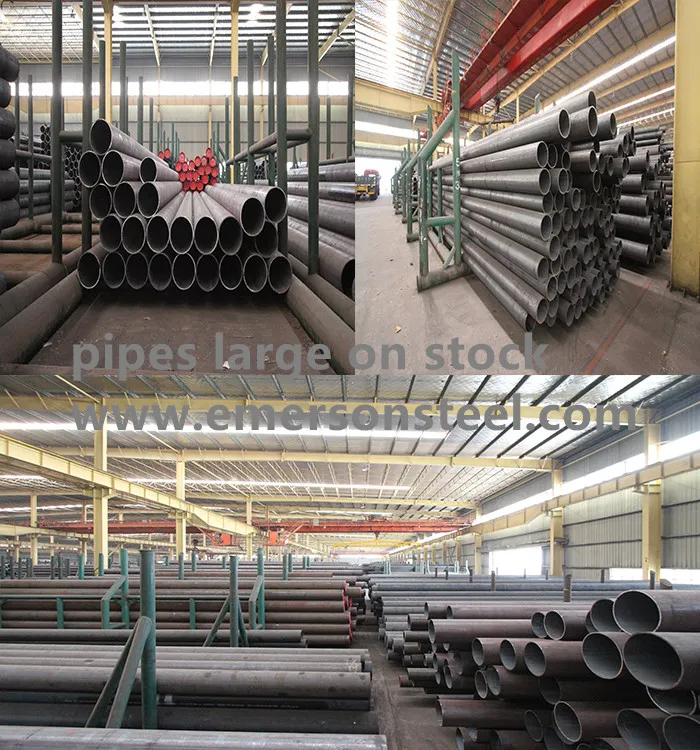

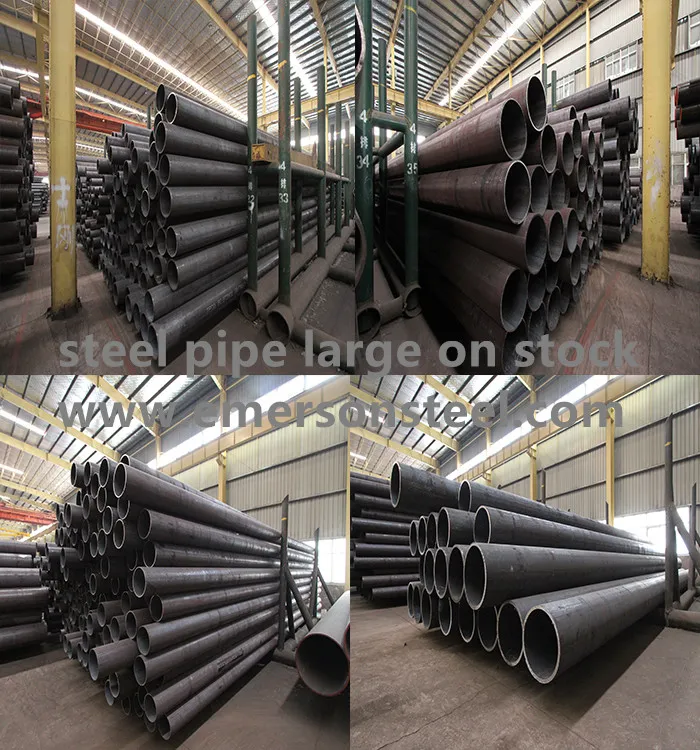

the seamless pipes stock detail
Black Oiled Cold Drawn Carbon Steel Pipe A106b A53 1045 1020 Seamless Steel Pipe

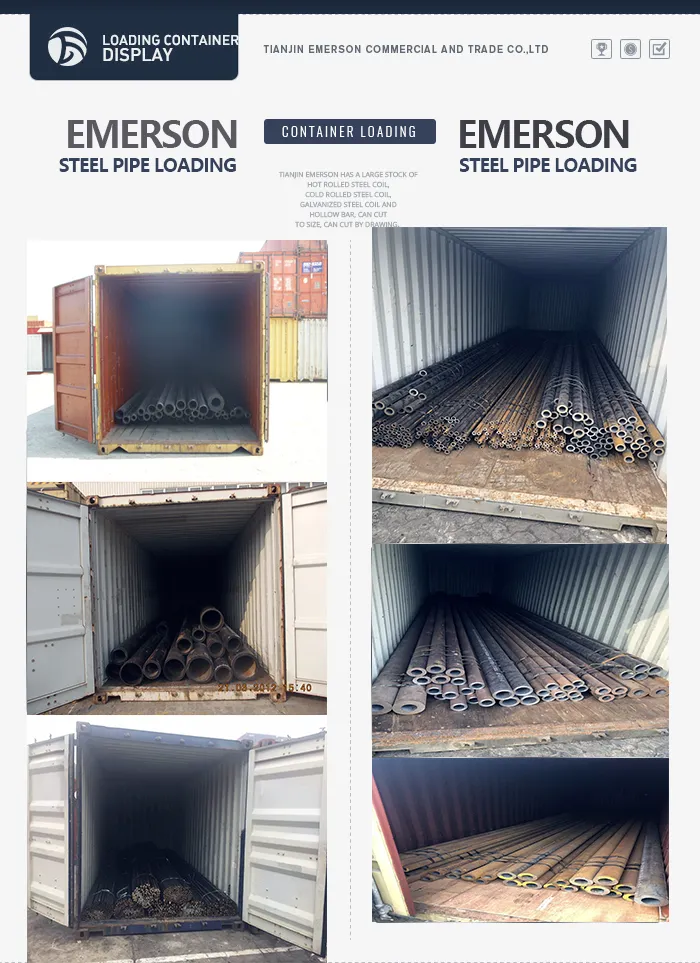

seamless steel pipes containers loading
Black Oiled Cold Drawn Carbon Steel Pipe A106b A53 1045 1020 Seamless Steel Pipe

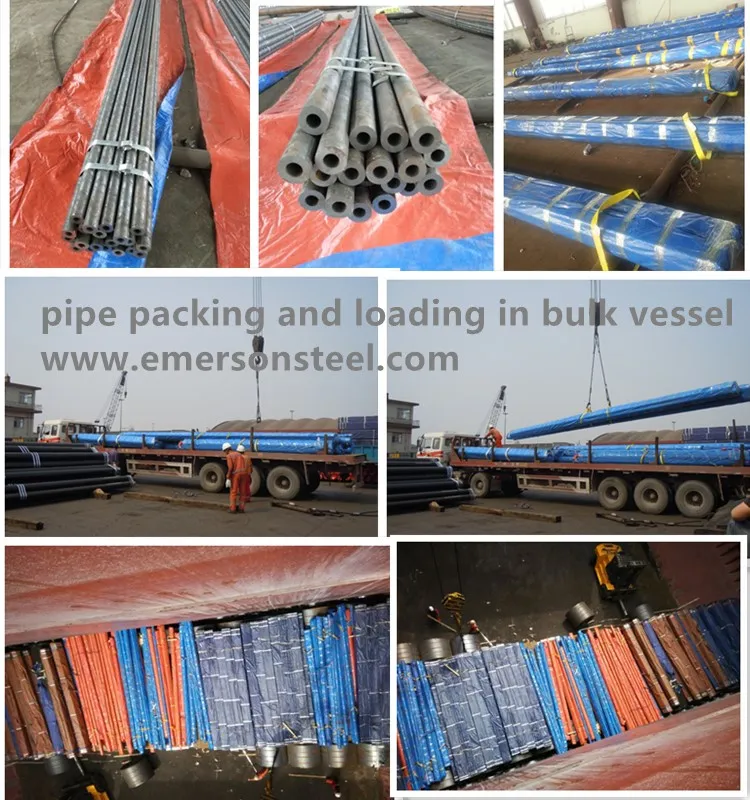

steel pipes bulk vessel packing and loading
Black Oiled Cold Drawn Carbon Steel Pipe A106b A53 1045 1020 Seamless Steel Pipe

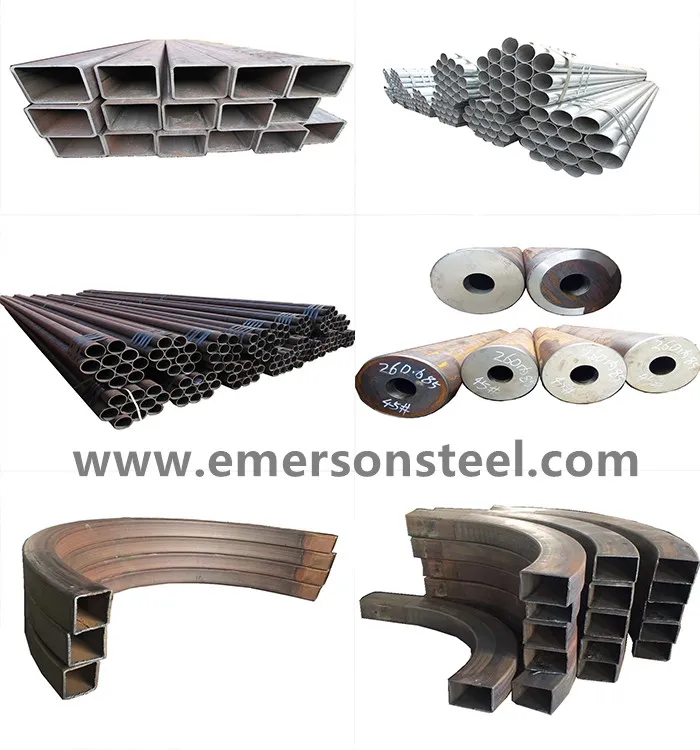

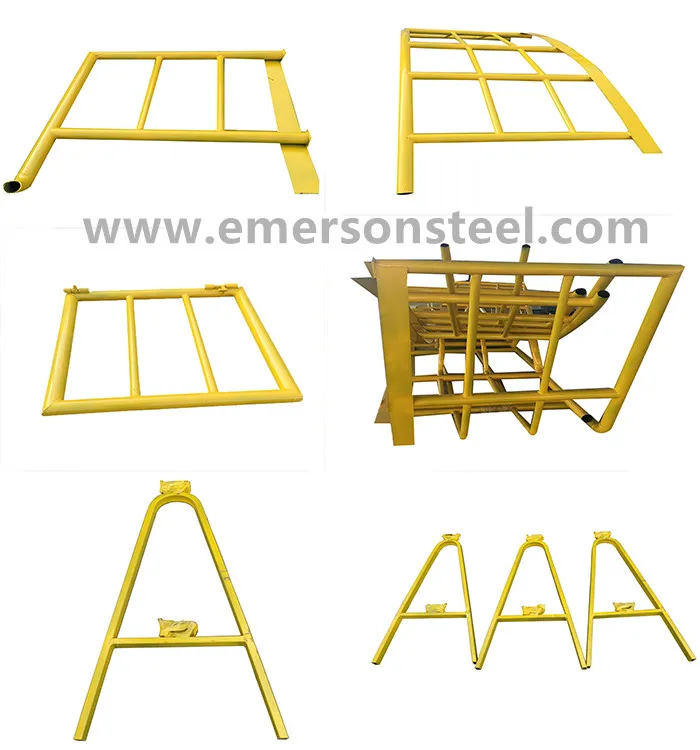

seamless pipes processing and fabrication
Black Oiled Cold Drawn Carbon Steel Pipe A106b A53 1045 1020 Seamless Steel Pipe
