China Big Diameter / High Frequence Welded Carbon Steel Pipe API5l / ASTM A53 / ASTM 252 /API5CT

Product Description

High-Frequency Electric Welded (HFW) Pipes
1.Technical Parameters

Commodity	HFW welded steel carbon pipeline
Size	O.D	1/2''-24''.
	Thickness	1.5mm-15.88mm
	Length	6m fixed , or 12m fixed, or based on speial request
Standards	API 5L 45th; ISO3183-2007; ASTM A53, ASTM A252, AS1163
Steel Grades	Gr. A GrBx42x46x52x56x60x65x70,etc
internal coating	cement mortar lining; bitumen coating; liquid epoxy; FBE
external coating	3lpe; 2lpe; 2LPP; FBE; Bitumen; enamel tape hot-applied; liquid epoxy coating; polyurethane insulated coating.
Manufacture Process	Cold formed
Main Application	The external coating is mainly used for anti-corrosion protection for liquid pipes before burying. Such pipe has been widely used in rugged environment.
Min quantity	5 tons, more quantity price will be lower.
packing	beveled on both pipe ends, with protector caps, in bundles by steel strips. In hexagonal shape bundles wrapped with strong steel trip 2MT/bundle. with 2 slings on each bundles.
Delivery time	20-25days after receiving your deposit or L/C.
Payment	TT or 100% Irrevocable LC at sight. We can discuss.

External Coating
Coating type	Coating Standard
3LPE/3LPP	DIN30670-1991,CAN/CSA Z245,21-2010,ISO21809-1-2009 SY/T 0413-2002,GB/T23257-2009
2LPE/2LPP	SY/T 0315-2002,GB/T23257-2009,ISO21809-1-2009
FBE(Fusion-bond epoxy)	SY/T 0315-2005,AWWA C213-2001,CAN/CSAZ245.20-2010,ISO218909-2-2007,API RP5L9-2001
Bitumen coating Enamel &Tape hot-applied	BS534-1990,AWWA203-2002,AWWA214-2000
Liquid epoxy coating	AWWWA C210-2007
Polyurethane insulated coating	SY/T0415-1996,CJ/T114-2000.EN253-1994
Internal Coating
Liquid Epoxy Coating	AWWAC210-2007
FBE	AWWAC213-2001
Cement Mortar Lining	BS534-1990,AWWA C205-2001
Bitumen Coating	BS534-1990

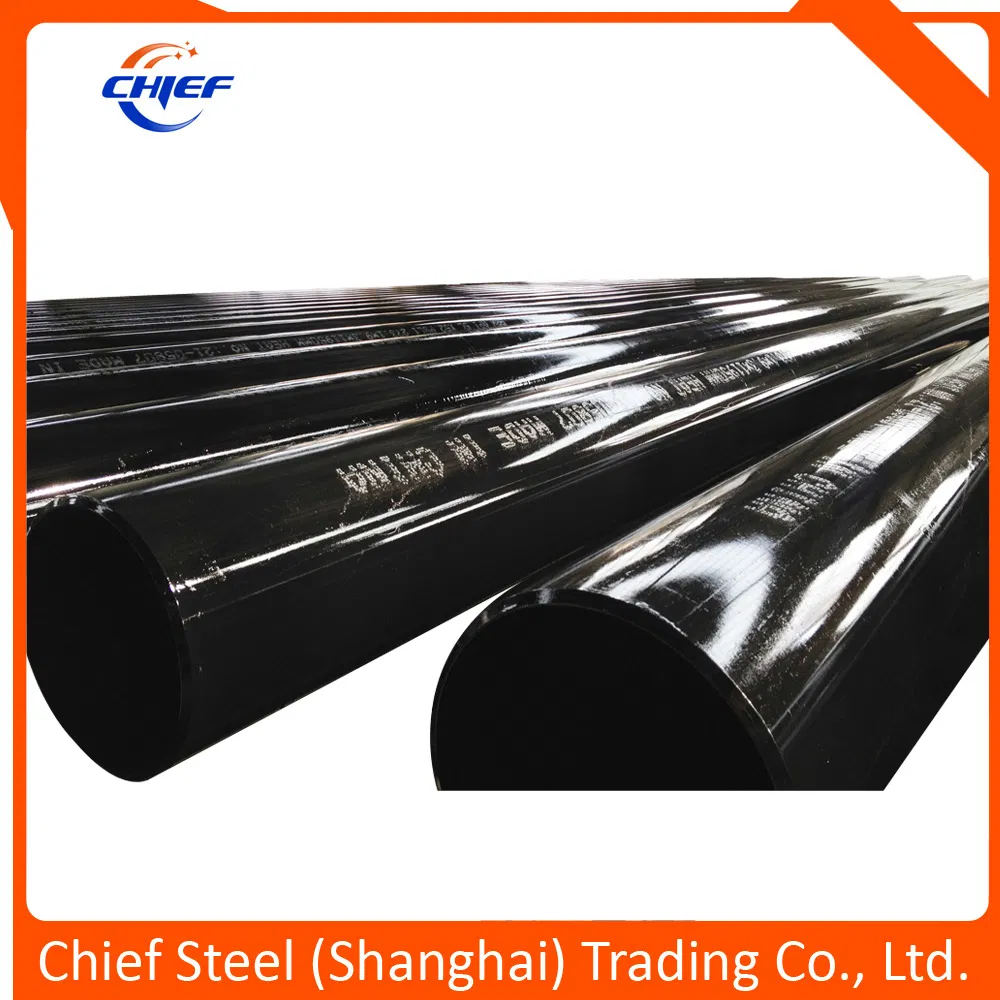

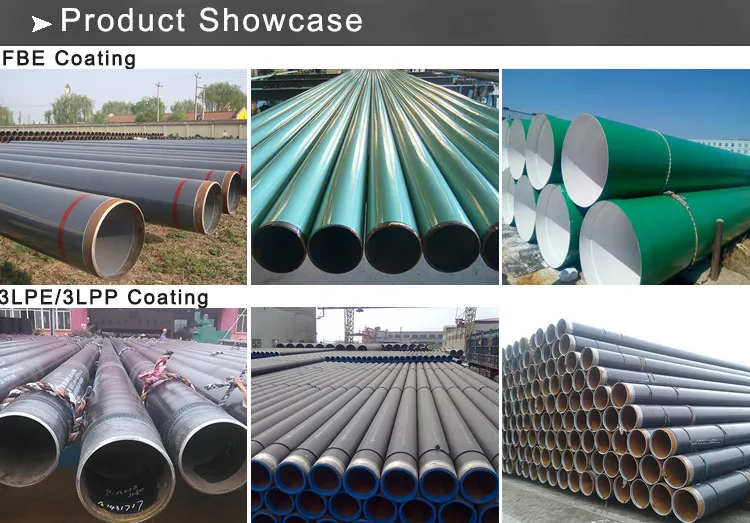

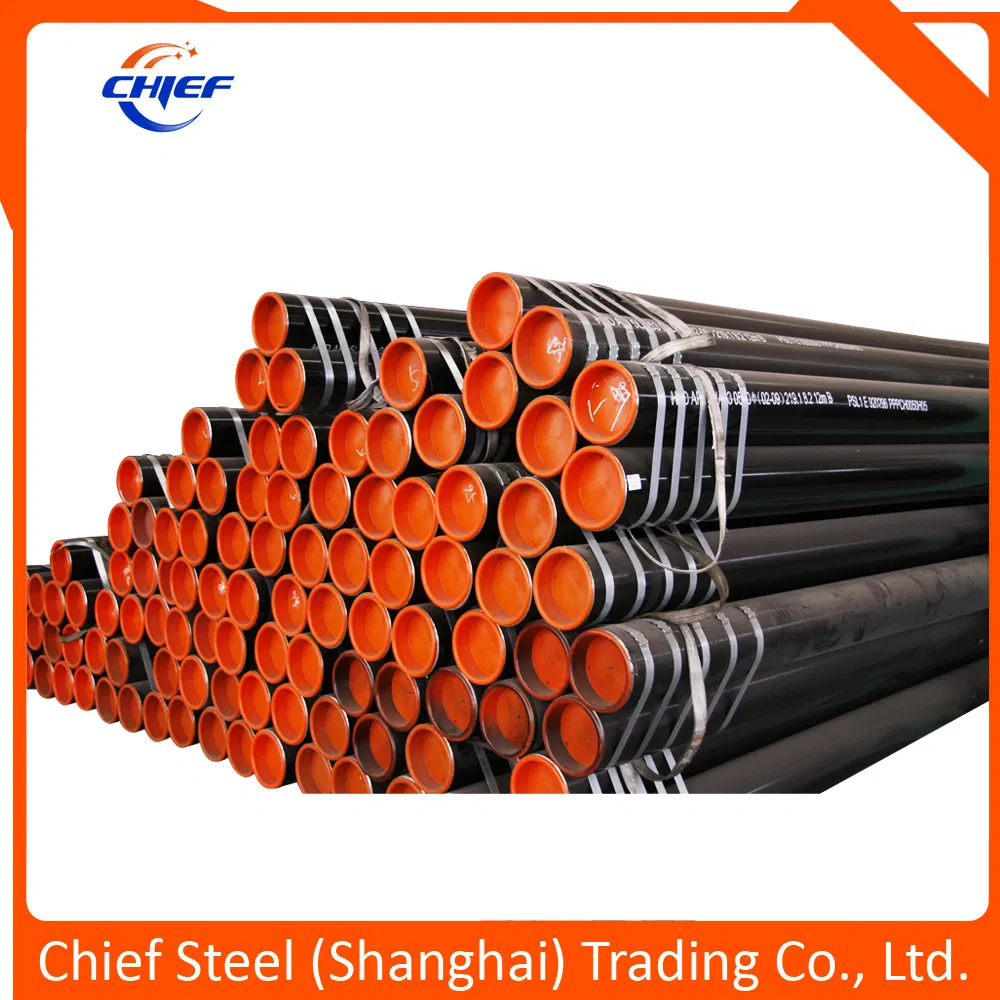

2.Product Showcase
High Frequence Welded Carbon Steel Pipe API5l / ASTM A53 / ASTM 252 /API5CT

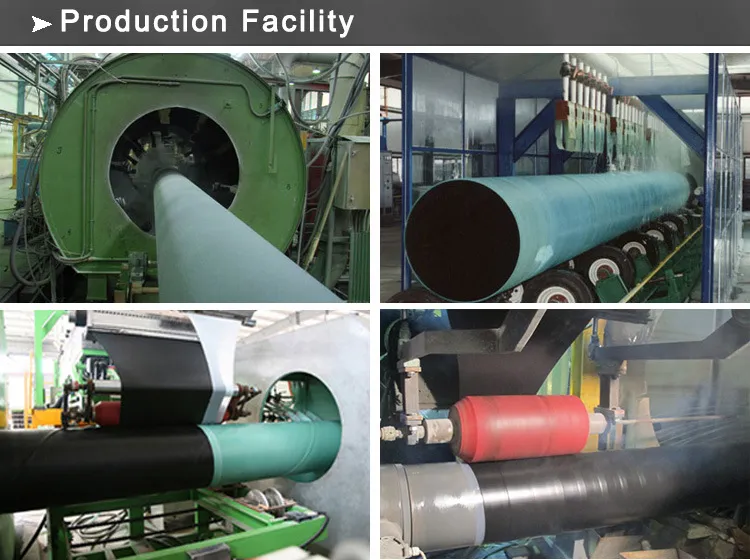

3.Production Facility
High Frequence Welded Carbon Steel Pipe API5l / ASTM A53 / ASTM 252 /API5CT

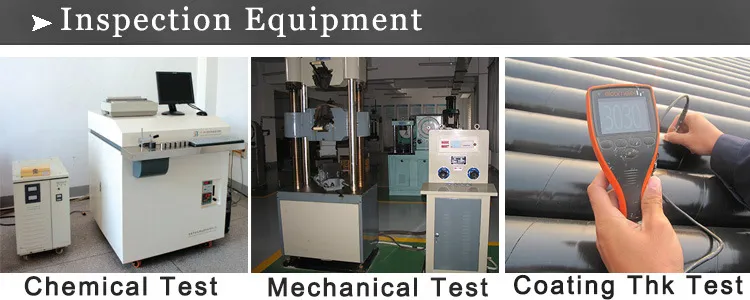

4.Quality Control
High Frequence Welded Carbon Steel Pipe API5l / ASTM A53 / ASTM 252 /API5CT

FAQ
Q1:How about thequality?
A:Third party inspections are always welcomed, like TUV. All of the goods will be released together with MTC and stamped by TPI.

Q2: How long is the delivery time?
A: Generally about 5-10 days if the goods in stock. Or will be 15-20 days if the goods are not in stock. And alsoaccording to the quantity.

Q3:Do you provide samples? Free or not?
A: Yes, we could offer the sample for free but do not pay the cost of freight.

Q4:May I customize the steel pipe?
A:Sure you can, we can produce according to your requirement, you can send the CAD ordesign drawing.

Q5:Any value-added Services?
A:Fottunately for you,we are very experience in this industry. We have equipped our warehouse with the necessitiesto perform in-house painting,coating,pipe cutting, jointed welding, and make machanical fabricate per to request.

Q6: How about the trade terms?
A: EXW, FOB, CFR, CIF, LC will be accepted.
