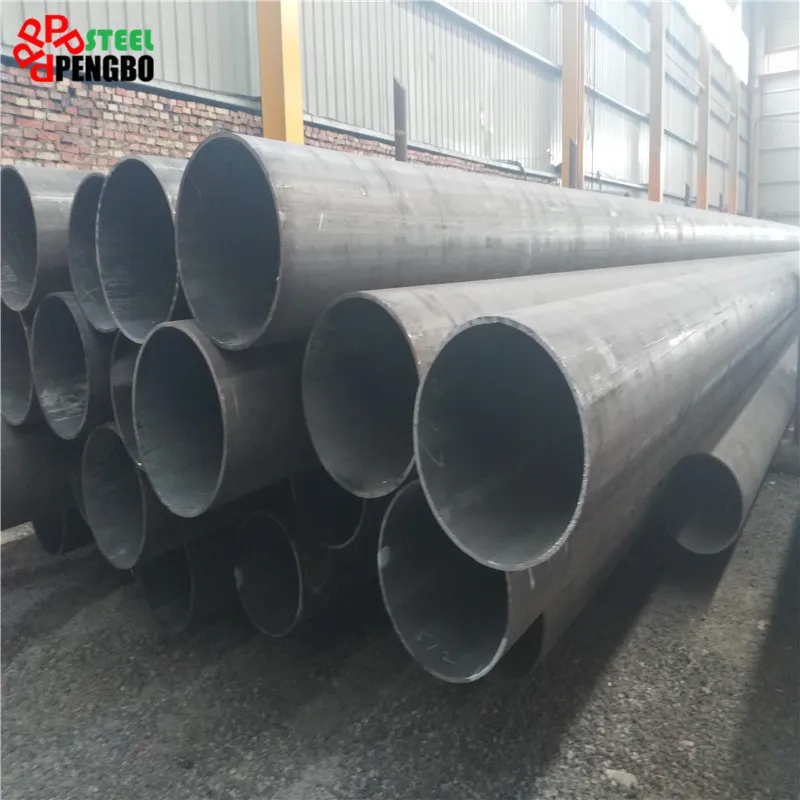

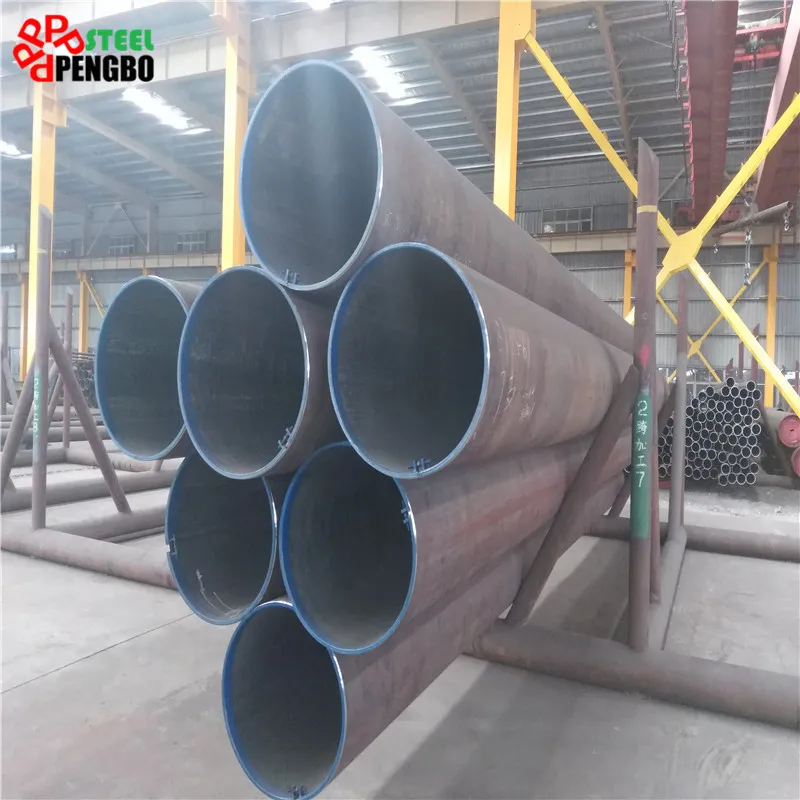

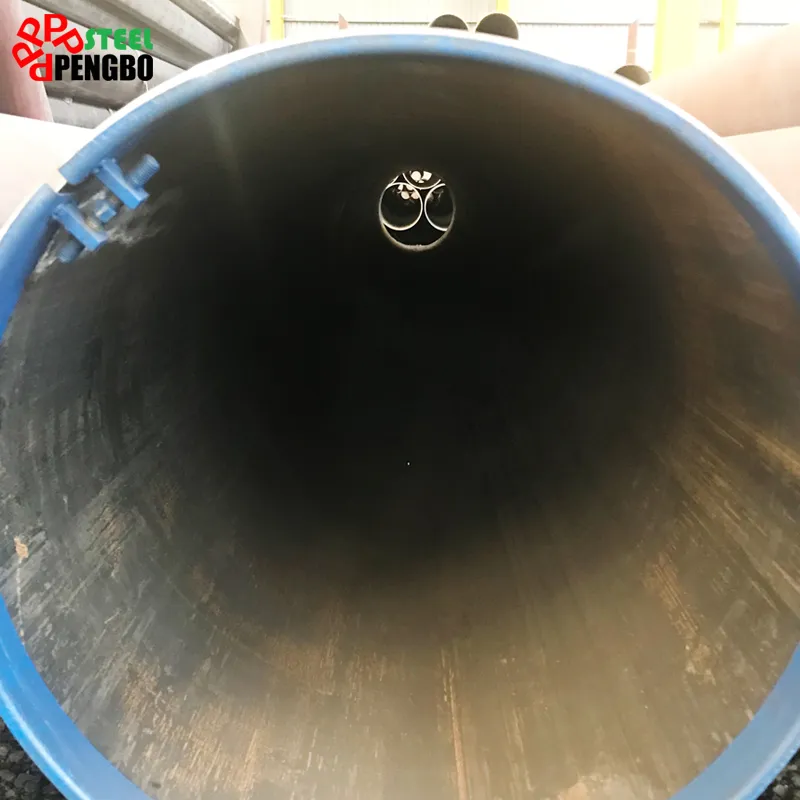

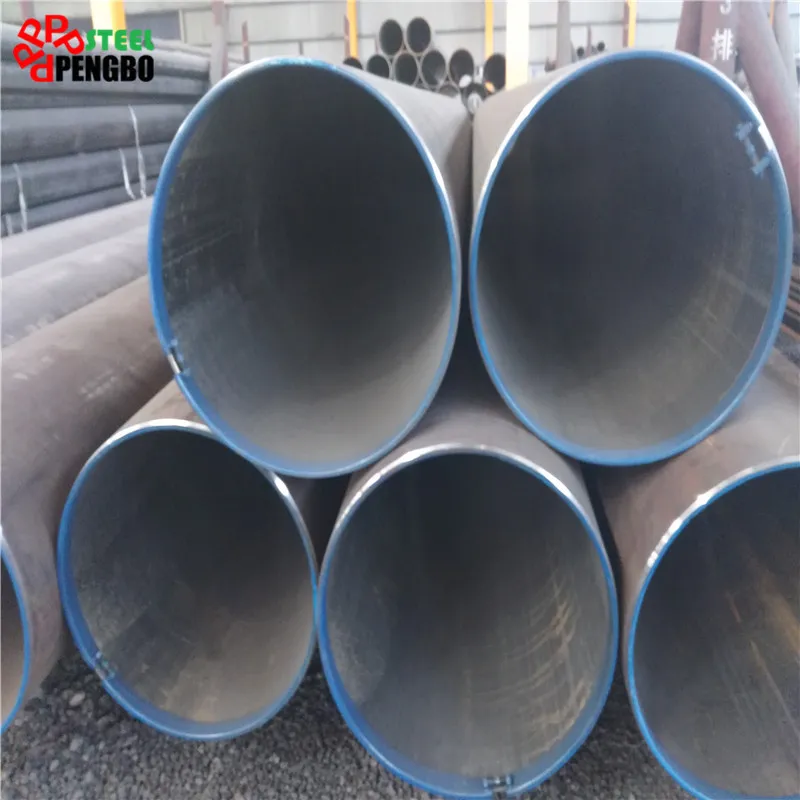

ANSI 1045 28 Inch High Pressure Carbon Steel Pipe

Product Description

Product Name	Seamless carbon steel pipe tube
Material	Carbon Steel and Alloy Steel
Surface	Oiled, Polished, Brightness, Metallic color
Standard	ASTM A106 A53 A192 A179 A210 A519
	DIN17175 1629 2391
	EN10216-1 10216-2 10305-1
	and so on
Grade	St35,St45,St52,E215,E235,E355,sch10,sch20,A106,A179,A192,A210,T11,T22,T12,AISI4130,SAE1010,SAE1020.etc
Craft	Cold rolled and Cold drawn
Size	OD:8mm-100mm,WT:1-8mm
Length	Customized
Tolerance	Cold drawn pipe: +/-0.1mm
Tolerance	Cold rolled pipe: +/-0.05mm
Used	Gas spring, Shock absorber, Cylinder and other high precision area
Delivery Condition	BK, BKW, BKS, GBK, NBK

ANSI 1045 28 Inch High Pressure Carbon Steel Pipe

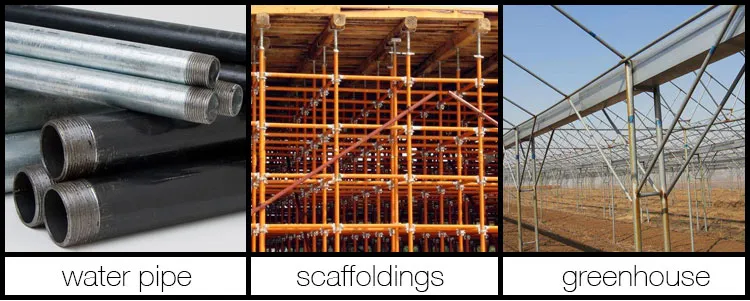

Applications

Final Supply Condition	Cold Finished (Hard)(HK)		Cold drawn and stress-relieved(BK+S)			Hardness HB
Parameters	T.S	Elongation	T.S	Y.S	Elongation
Parameters	obN/mm²	65%	obN/mm²	obN/mm²	65%
CK20	≥550	≥8	≥520	≥470	≥12	175
CK45	≥650	≥5	≥600	≥520	≥12	207
ST52	≥640	≥5	≥600	≥520	≥15	190
25Mn	≥640	≥5	≥600	≥510	≥15	195
27SiMn	≥840	≥5	≥800	≥720	≥10	230

Specifications:
Pneumatic cylinder				Hydraulic cylinder
ID	OD	Thickness	Unit Weight	ID	OD	Thickness	Unit Weight
(mm)	(mm)	(mm)	(KG/M)	(mm)	(mm)	(mm)	(KG/M)
40	45	2.5	2.62	40	50	5	5.548
50	57	3.5	4.618	40	55	7.5	8.785
63	69	3	4.883	45	60	7.5	9.71
80	86	3	6.14	50	60	5	6.782
80	88	4	8.286	50	63	6.5	9.056
90	100	5	11.714	50	65	7.5	10.635
100	108	4	10.259	50	70	10	14.796
100	110	5	12.947	55	66	5.5	8.206
125	133	4	12.725	56	73	8.5	13.52
125	135	5	16.029	63	76	6.5	11.14
140	152	6	21.602	63	80	8.5	14.987
150	160	5	19.112	63	83	10	18.008
160	170	5	20.345	65	80	7.5	13.409
160	172	6	24.561	70	80	5	9.248
180	194	7	32.28	70	83	6.5	12.262
200	214	7	35.732	70	86	8	15.388
200	216	8	41.034	70	90	10	19.728
200	219	9.5	49.08	75	90	7.5	15.258
250	266	8	50.9	80	93	6.5	13.865
250	273	11.5	74.159	80	95	7.5	16.183
300	320	10	76.446	80	100	10	22.194
320	340	10	81.378	80	102	11	24.685
400	426	13	132.4

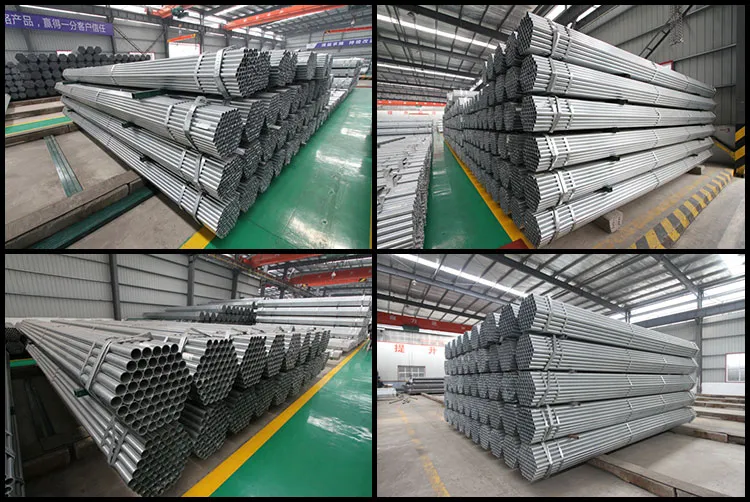

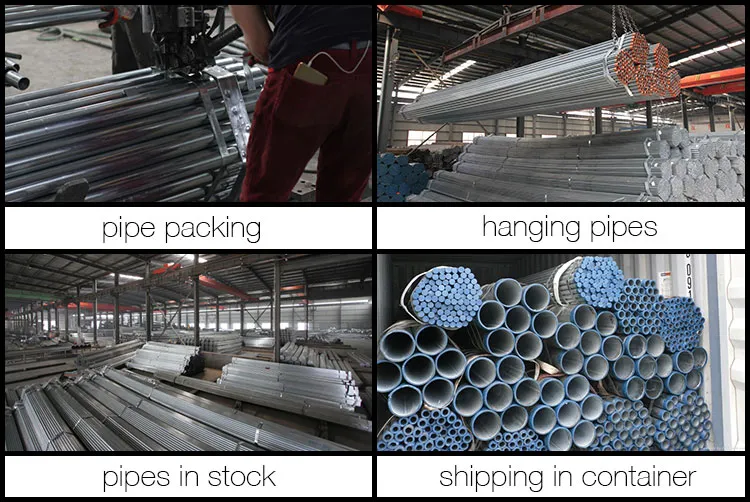

BIG INVENTORY

Our steel pipe has many advantages comparing to others, these pipe are made by erw steel pipes:

1. Lower price comparing to seamless steel pipe or stainless steel pipe;

2. Excellent physical performance in applications;

3. Shorter Delivery time;

4. Large quantities in stock;
