27simn St52 High Precision Burnished Seamless Honed Tube
1.Product Show Honed tube for hydraulic cylinderStandardDIN2391, EN10305, JIS G3445, ASTM A519, GB/T 8713...MaterialST45, ST52, E355, E355SR, STKM13C, SAE1026, 20#, Q235B, CK45...Heat treatmentBK+SSpecificationOuter diameter(mm) Inner diameter(mm) ......
Send Inquiry
Product Description
Honed tube for hydraulic cylinder | ||
Standard | DIN2391, EN10305, JIS G3445, ASTM A519, GB/T 8713... | |
Material | ST45, ST52, E355, E355SR, STKM13C, SAE1026, 20#, Q235B, CK45... | |
Heat treatment | BK+S | |
Specification | Outer diameter(mm) | Inner diameter(mm) |
40-480mm | 30-400 | |
I.D Tolerance | H8-H9 | |
Length | 3-9m (Customers usually choose the 4~5.8m) | |
Straightness | 1/1000 | |
ID roughness | RA 0.4micron(max) | |
Technology | Honed & SRB(SKIVED AND ROLLER BURNISHED ) | |
Scope | Honed tube for hydraulic cylinder, swivel crane, injection machine and construction machine application | |

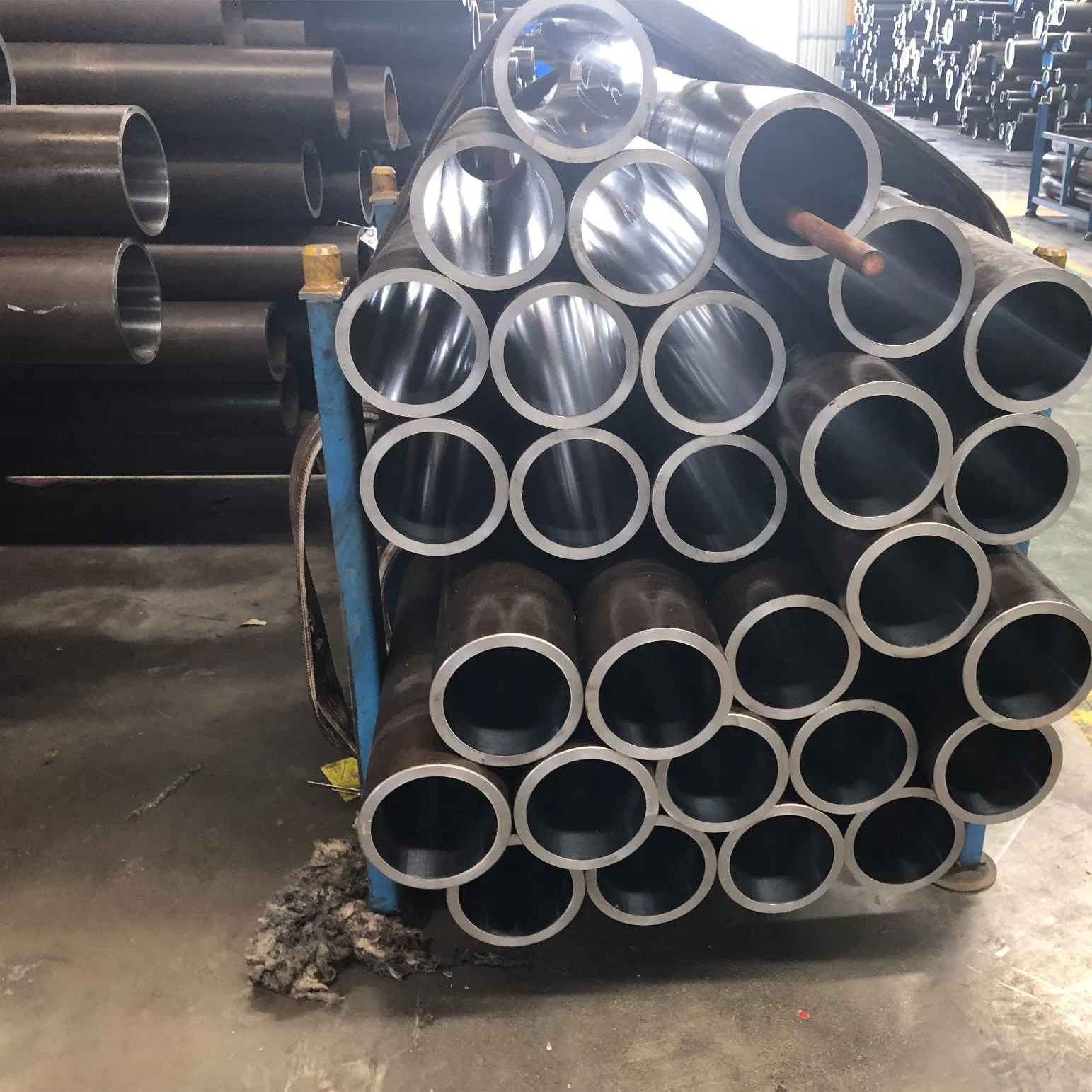

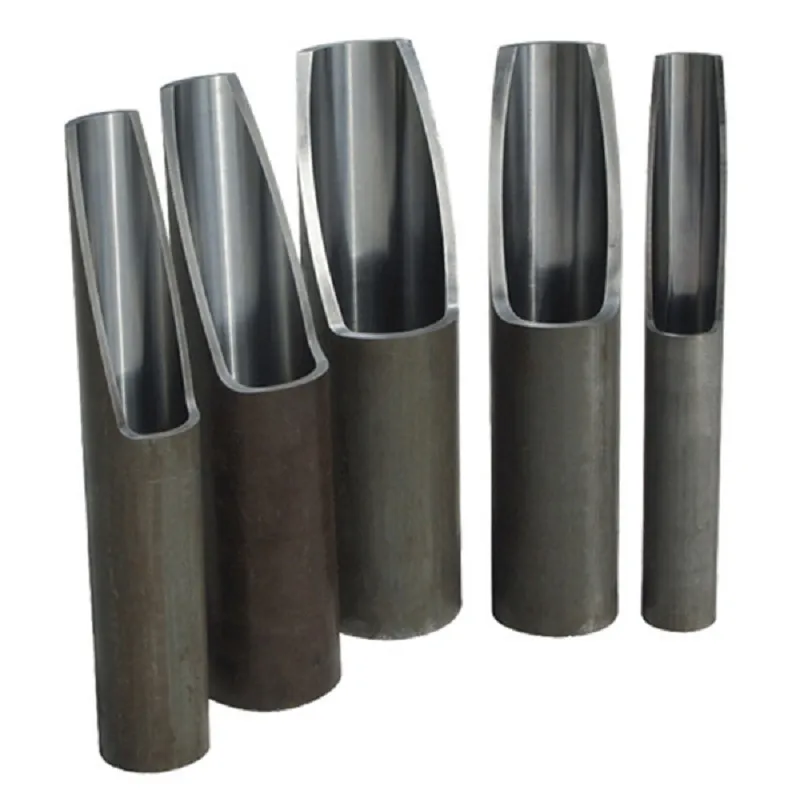

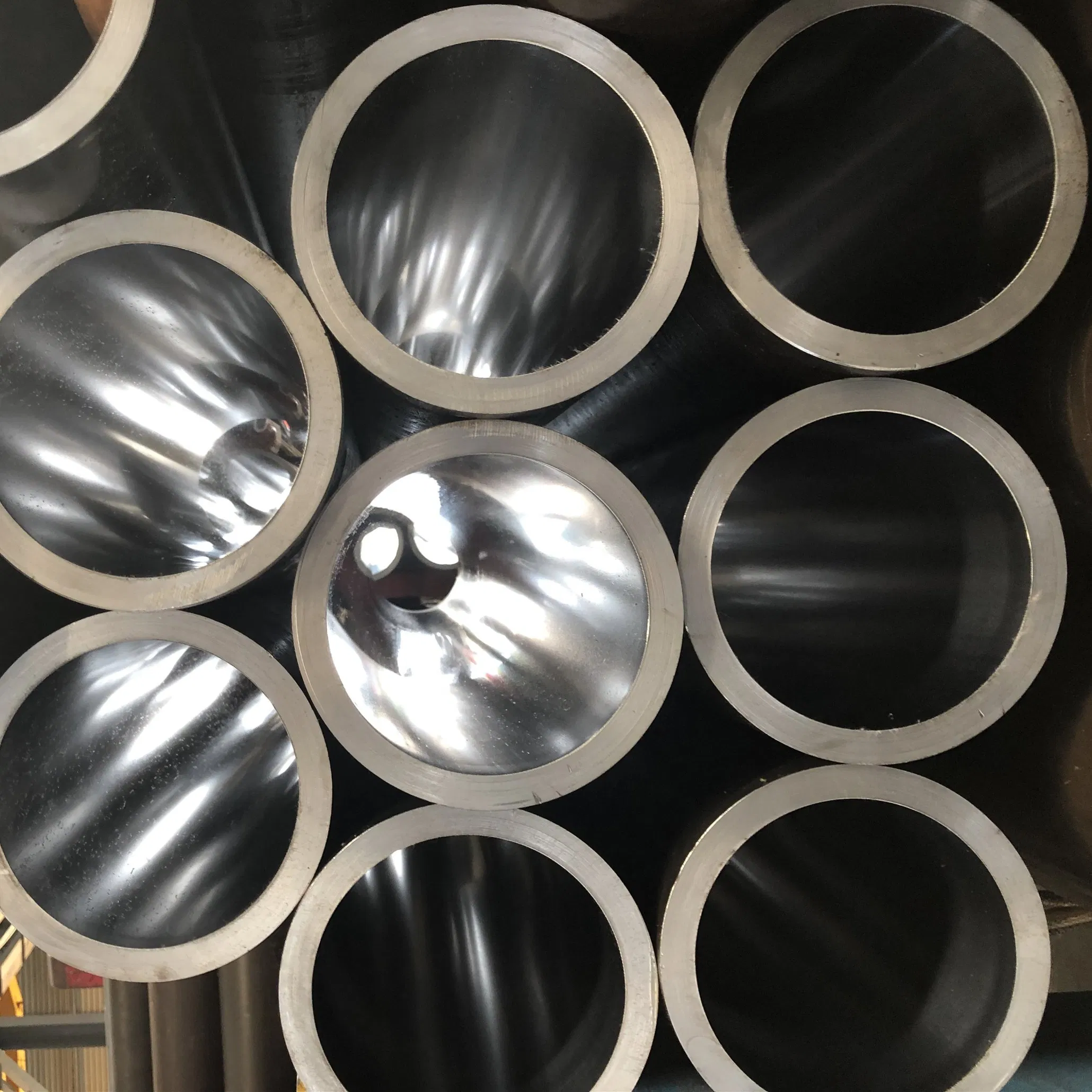

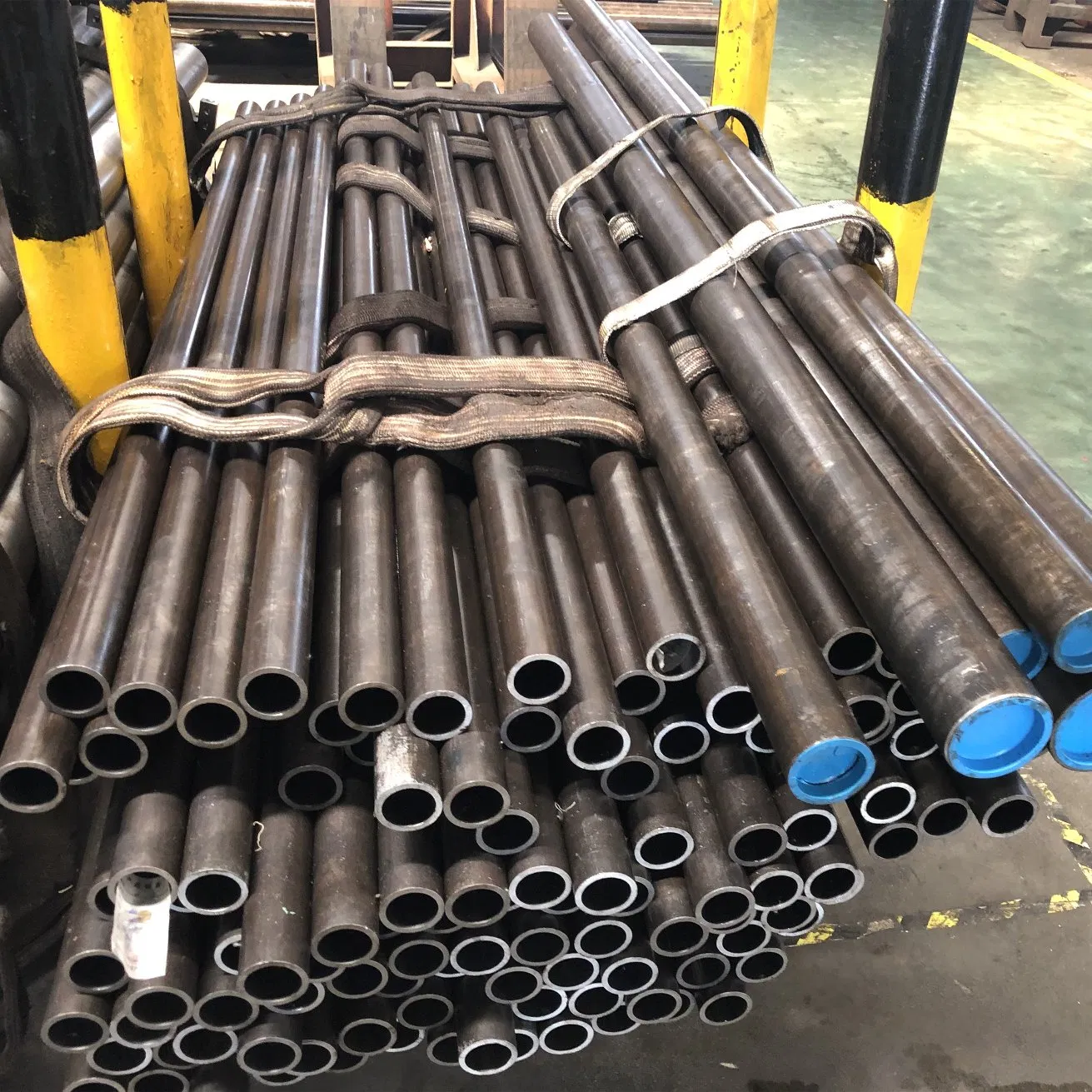

2.Product Pictures
3.Chemical Component
Steel Grade | Chemical Composition (%) | |||||
C | Si | Mn | P | S | Cr | |
≤ | ||||||
St45 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 | 0.250 |
ST52(E355) | ≤0.22 | ≤0.55 | ≤1.6 | 0.025 | 0.025 | 0.25 |
SAE1026 | 0.22-0.28 | 0.15-0.35 | 0.60-0.90 | 0.040 | 0.050 | / |
27SiMn | 0.24-0.32 | 1.10-1.40 | 1.10-1.40 | 0.035 | 0.035 | 0.300 |
20# | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 | 0.250 |
Delivery condition | BKS Cold Drawn & Stress-Relieved | ||
Steel Grade | Rm MPa | ReH MPa | Elongation A5(%) |
ST45 | ≥520 | ≥375 | ≥15 |
ST52(E355) | ≥600 | ≥520 | ≥14 |
SAE1026 | ≥600 | ≥510 | ≥15 |
16Mn | ≥600 | ≥520 | ≥14 |
20# | ≥520 | ≥375 | ≥15 |

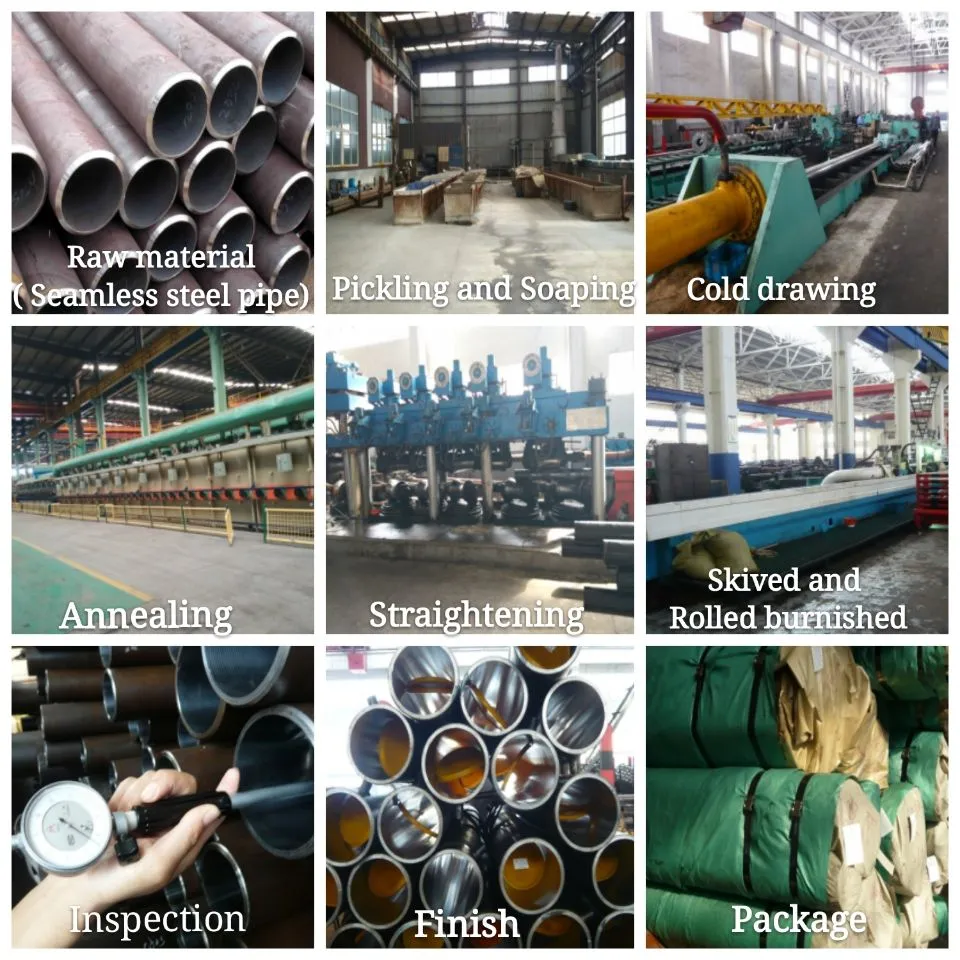

5.Flow Diagram
6.Advantage of Product
1)Professional & skilled, reliable.
2)One-stop total solution
3)ready stock goods with fast delivery
4)Customizable: Non-standard sizes are also available
5)Small quantity is acceptable
6)Cash back: Refund or replacement for any product faulty
7. Introduction of Company
JIANNING METALS GROUP was established in 2001, With more than 10 years import and export experiences Jianning Metals has been an influential exporter in the global metal products market. More than 160 customers from 26 countries and regions have established long-term business relationships with us.
Our main business range is listed as follows:
Carbon Seamless Steel pipe/tube
Hydraulic cylinder tube(Honed tube)
Hard chrome plated rod/bar/shaft(Piston rod)
Auto exhaust system: (exhaust pipe, muffler tips, carbon steel and stainless steel mufflers, flexible pipe)
We sincerely welcome friends from all over the world contact us to establish mutually beneficial business relationships

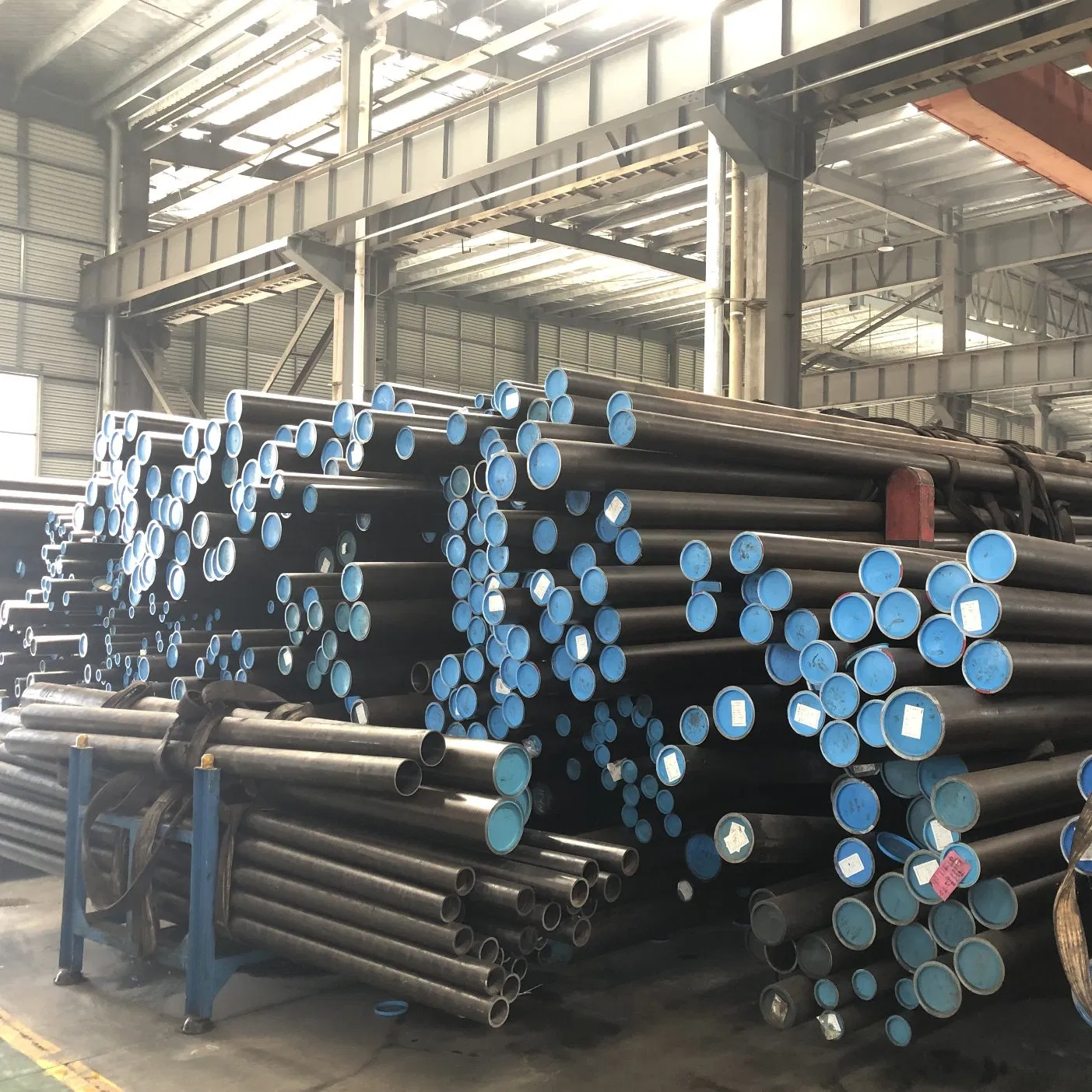

8.Our Company View
9.OUR CUSTOMER
10.FAQ
1.Q: How many days of your delivery?
A: The general delivery is 15~35 days according to your quantity.
2.Q: What's your main market?
A: We mainly export to Middle East and South Eastern Asia. And this year our products enter into South America.
3.Q :Are you factory?
A:Yeah, we are.
4.Q :Which countries do you export to?
A: America, India, Korea, Pakistan, Turkey, Iran and so on.
5.Q :What is the delivery time?
A: If we have stock, we can send goods within 20days. If not, we will delivery goods within 30-45days
6.Q: What is your main payment itme?
A: T/T and L/C
