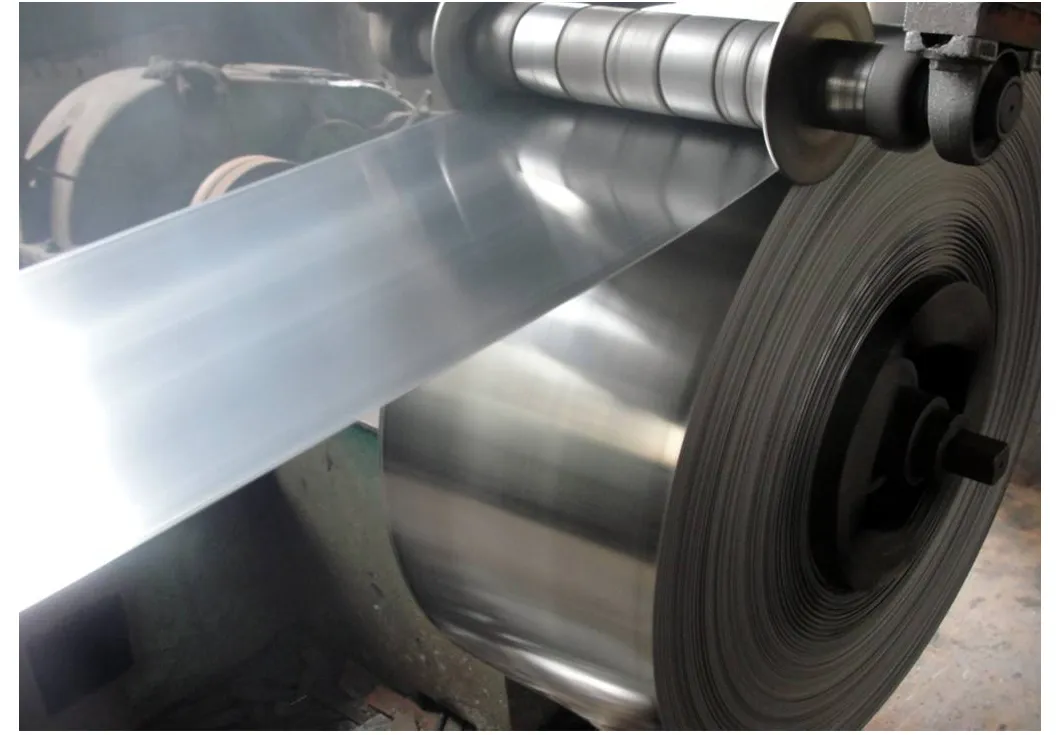

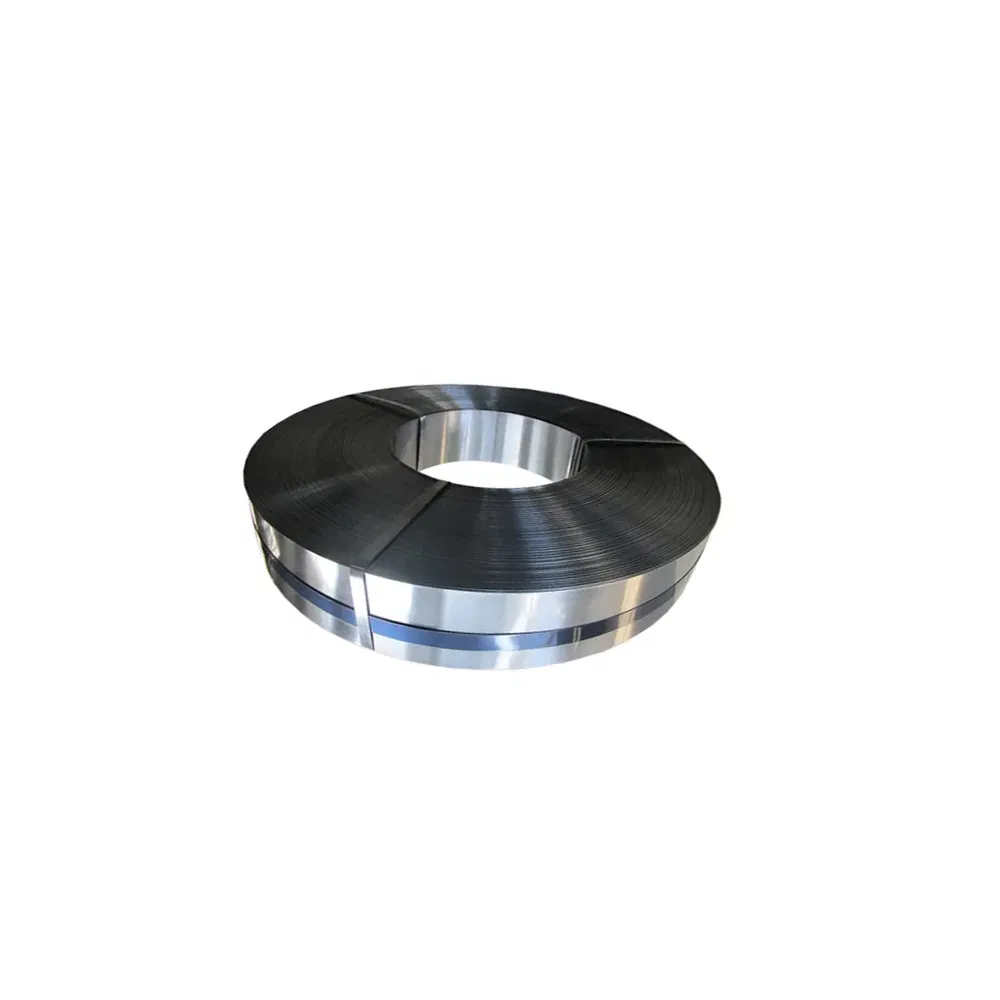

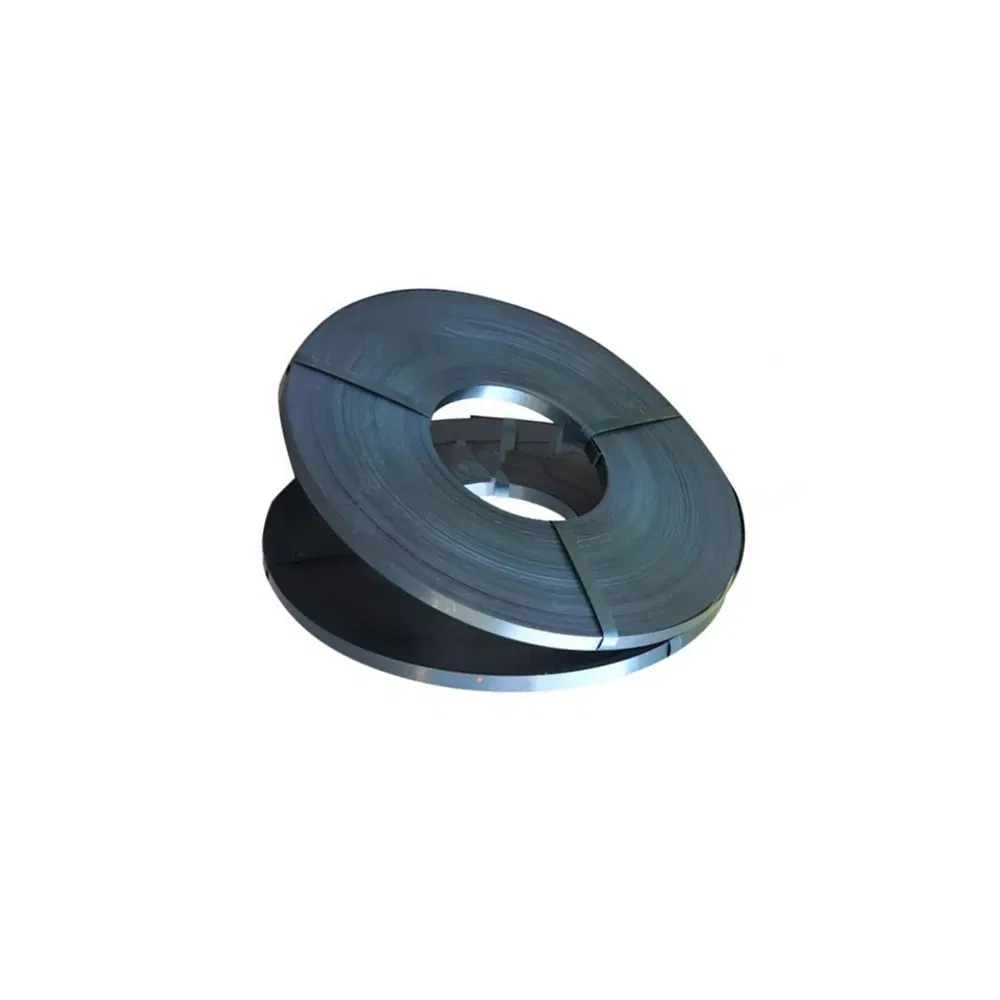

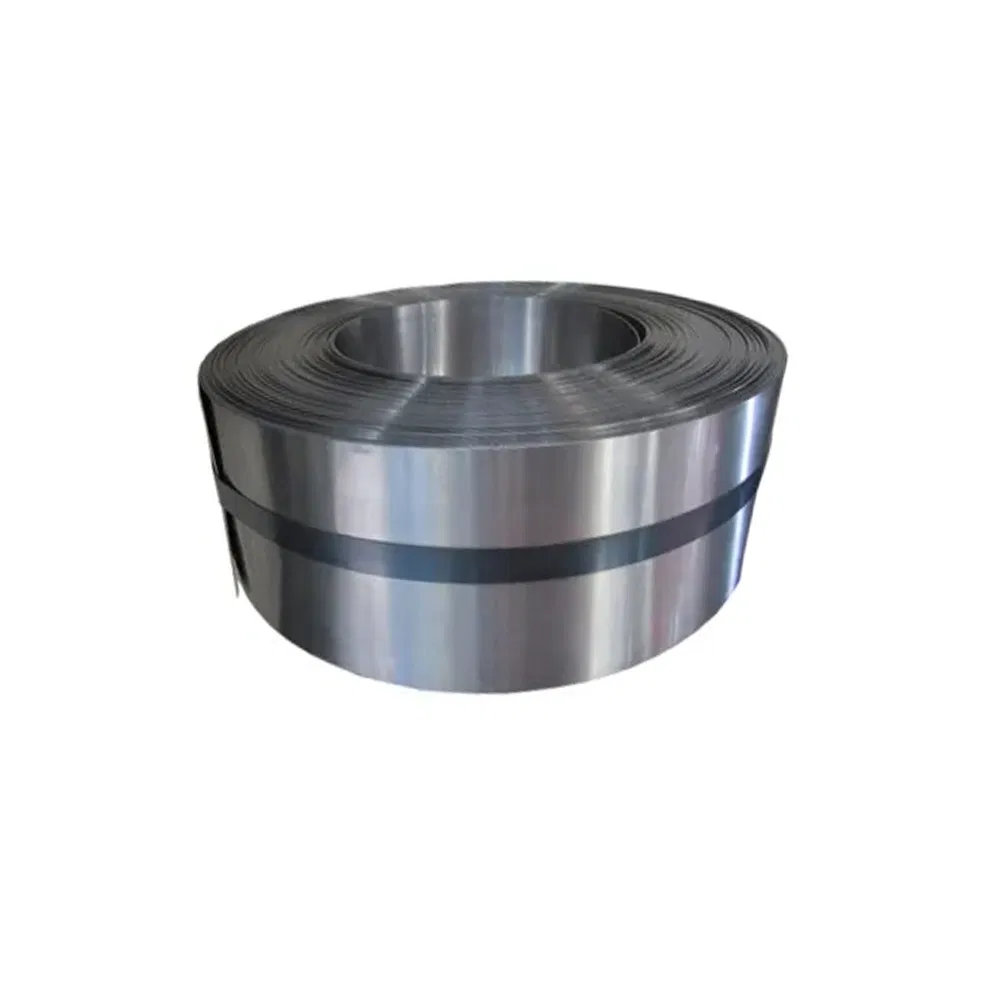

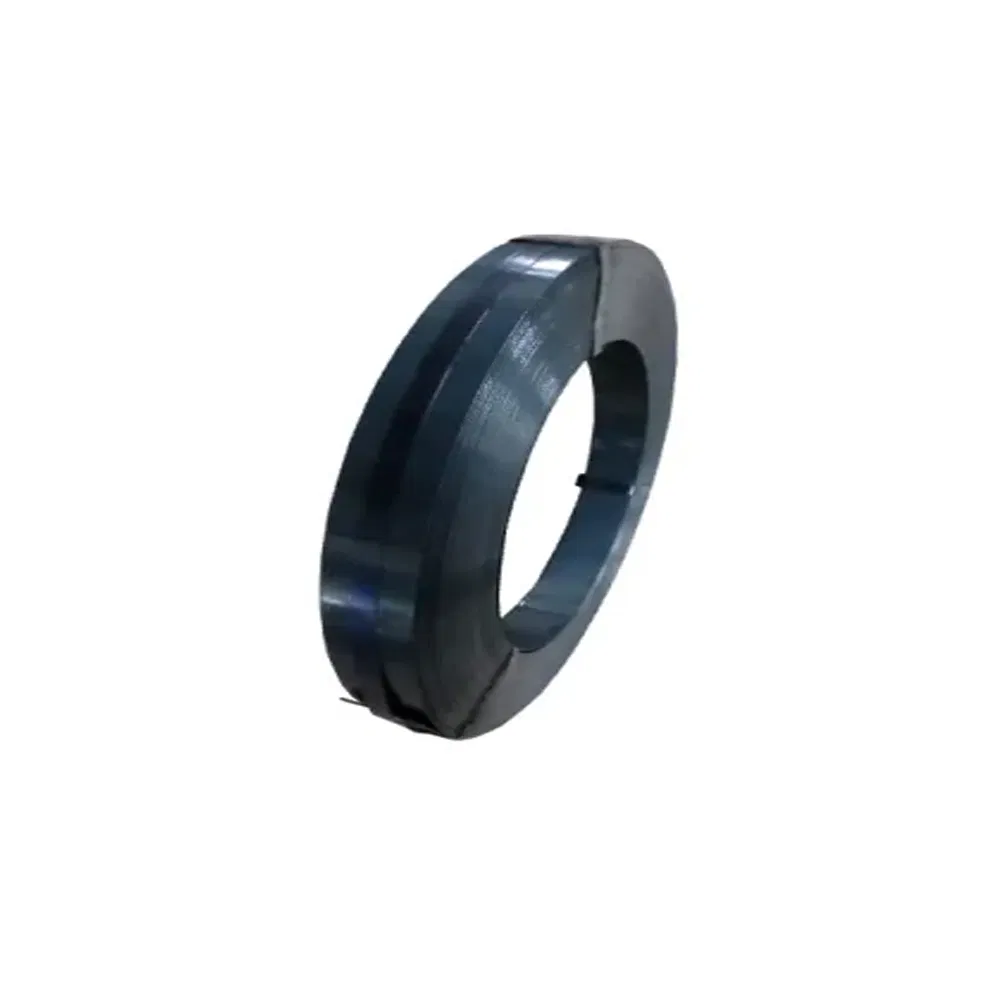

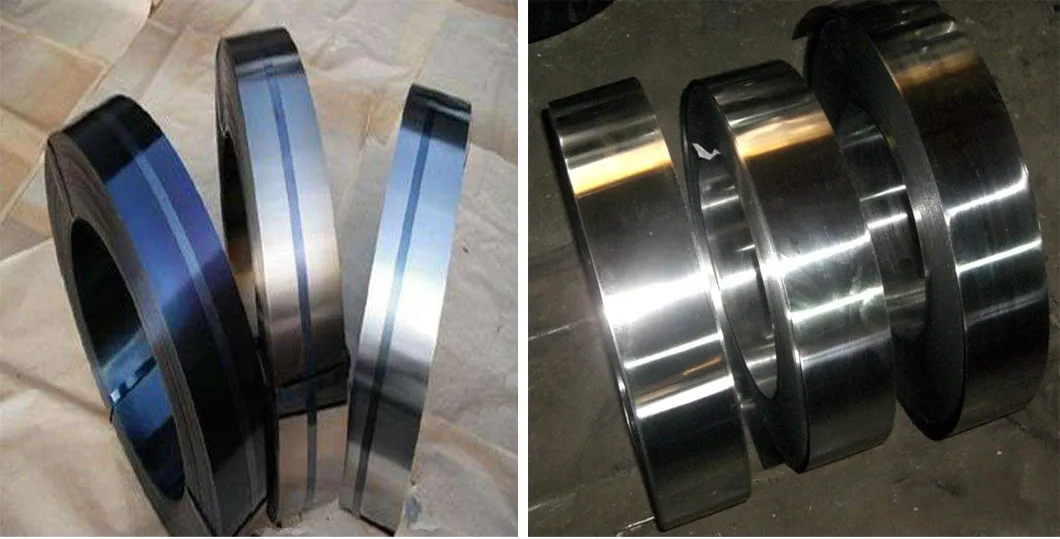

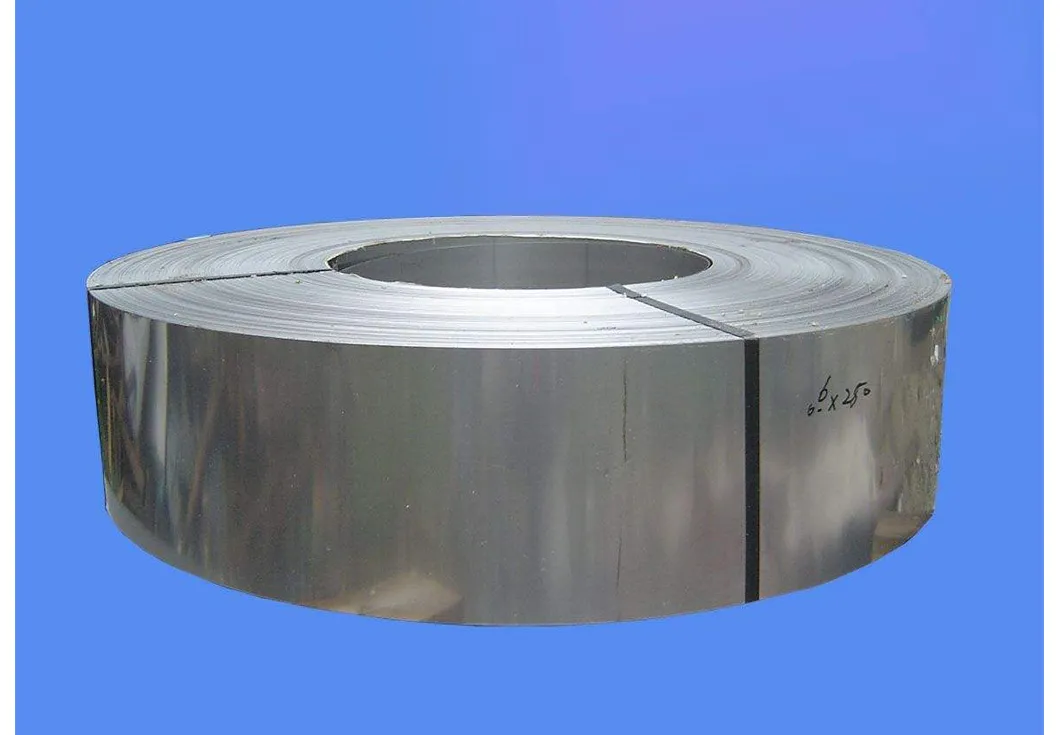

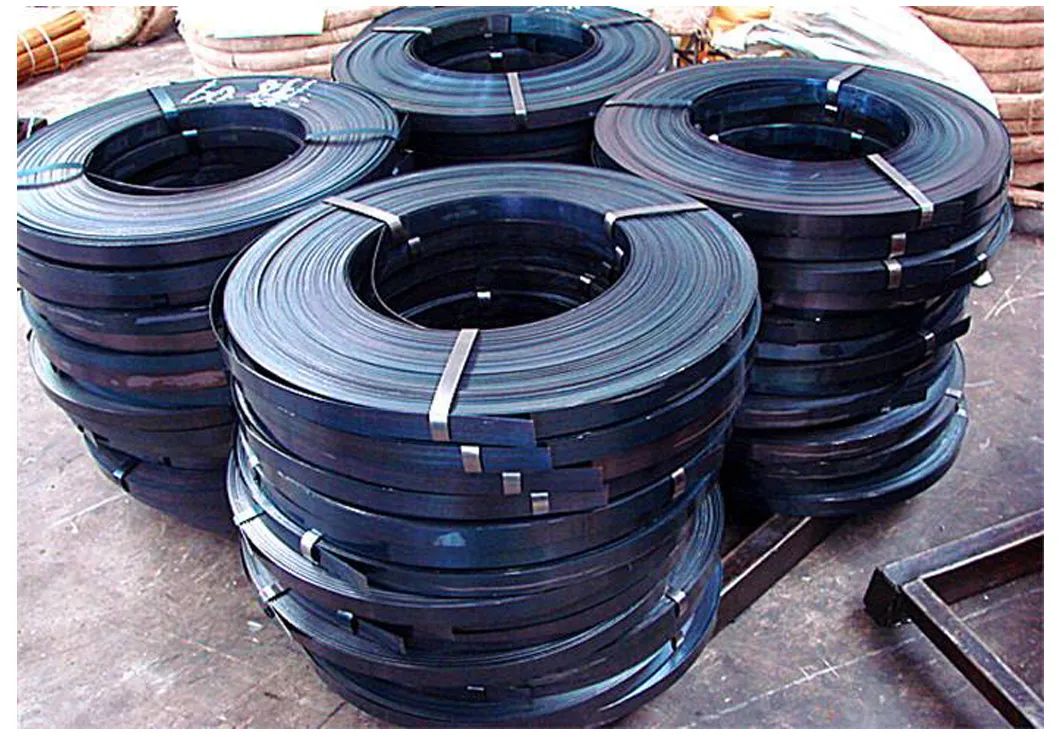

SAE 1060 1065 1070 1075 High Carbon Steel Strip
We,Qingdao Quanlong Metal Materials Co.,ltd is produced for 15 years with 12 years exported experience.Our main products are galvanized/galvalume/prepainted steel coil,steel plate,spring steel strip/coil,stainless steel and so on... Delivery condition :(strip, coil, sheet)Grade based on DIN Standard......
Send Inquiry
Product Description
We,Qingdao Quanlong Metal Materials Co.,ltd is produced for 15 years with 12 years exported experience.Our main products are galvanized/galvalume/prepainted steel coil,steel plate,spring steel strip/coil,stainless steel and so on...
Delivery condition : | Grade based on DIN Standard | High quality heat treating steel strip, coil, sheet supply capacity and condition | |||
Hardness<20HRC | Hardness 29-55HRC | ||||
annealed | hardened and tempered | ||||
thickness | Width | thickness | Width | ||
High carbon steel | CK50, CK55, CK60, CK67, CK70, CK75, C75S,C75Cr1,65Mn | 0.15-2.5mm | 8-600mm | 0.15-2.5mm | 8-300mm |
Alloy spring steel | 50CrV4,51CrV4, 60Si2Mn | 0.20-2.2mm | 8-180mm | 0.20-2.2mm | 8-180mm |
| GRADES COMPARISON FOR SPRING STEEL | ||||||||
| CHINA GB/T | U.S.A ASTM | JAPAN JIS | Germany DIN | France NF | Birtain BS | ISO | Korea KS | Taiwan CNS |
| 65 | 1065 | SUP2 S65-CSP | 60E | XC65 | 060A67 | C60E4 | - | - |
| 70 | 1070 | S70C-CSP | 60E | XC70 | 070A72 | 8458-3 DAB | - | - |
| 85 | 1084 | SUPS SK5-CSP | C85E | XC85 | 060A86 | 8458-2 DH | SUP1 | SUP3 |
| 65Mn | 1566 | S60C-CSP | CK67 | - | 080A67 | C60E4 | - | - |
| 55Si2Mn | 9255 | SUP6 SUP7 | 55Si7 | 55Si7 | 251H60 | 55SiCr7 | - | - |
| 55SiMnVB | - | - | - | - | ||||
| 60Si2Mn | 9260 | SUP6 SUP7 | 65Si7 | 60Si7 | 251H60 | 61SiCr7 | SPS3 | SUP6 |
| 60Si2MnA | 9260 | SUP6 SUP7 | 60SiMn5 | 55Cr7 | 251H6 | 61SiCr7 | SPS3 | SUP6 |
| 60Si2CrA | - | - | 60SiCr7 | 60SiCr7 | 685H57 | 55SiCr6-3 | - | - |
| 60Si2CrVA | - | - | - | 60SiCr7 | - | 55SiCr6-3 | - | - |
| 55SiCrA | - | - | - | - | ||||
| 55CrMnA | 5155 | SUP9 | 55Cr3 | 55Cr3 | 527A60 | 55Cr3 | SPS5 | SUP9 |
| 60CrMnA | 5160 | SUP9A | 55Cr3 | 55Cr3 | 527A60 | - | SPS5A | SUP9A |
| 60CrMnMoA | 4161 | SUP13 | 51CrMoV4 | 51CrMoV4 | 705H60 | 60CrMo3-3 | SPS9 | SUP13 |
| 50CrVA | 6150 | SUP10 | 51CrV4 | 50CrV4 | 735A51 | 51CrV4 | SPS6 | SUP10 |
| 60CrMnBA | 51B60H | SUP11A | 52MnCr83 | - | - | 60VrB3 | SPS7 | SUP11 |
| 30W4Cr2VA | - | - | - | - | - | - | - | - |

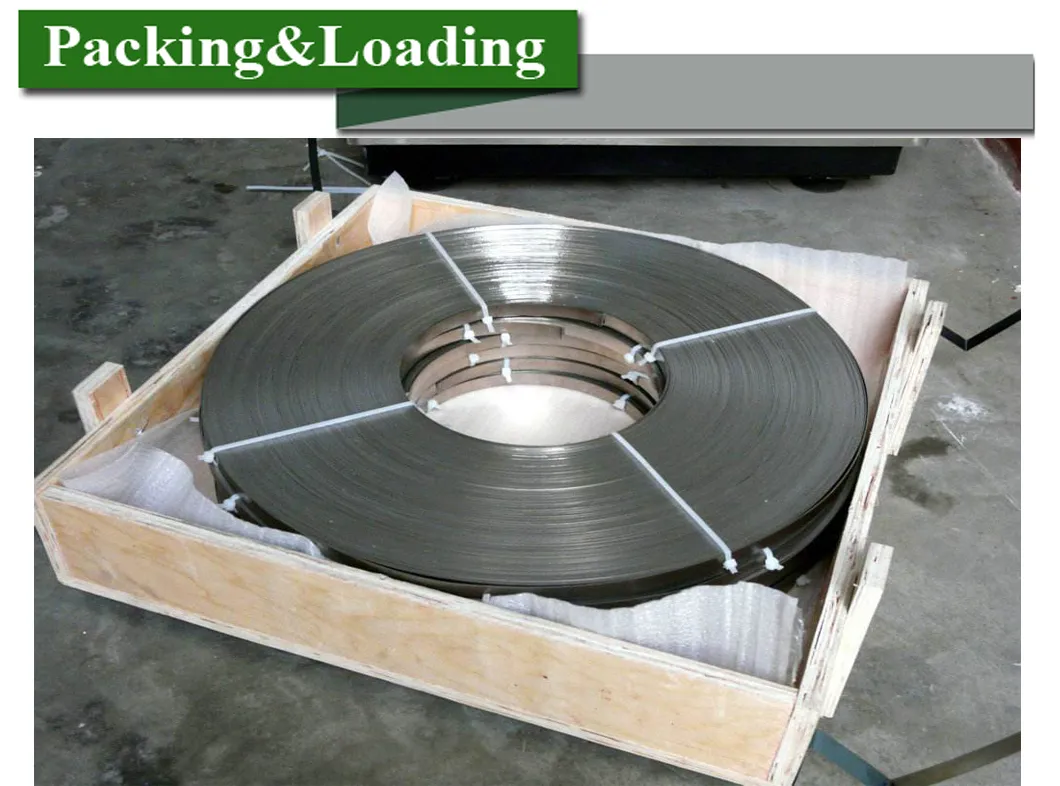

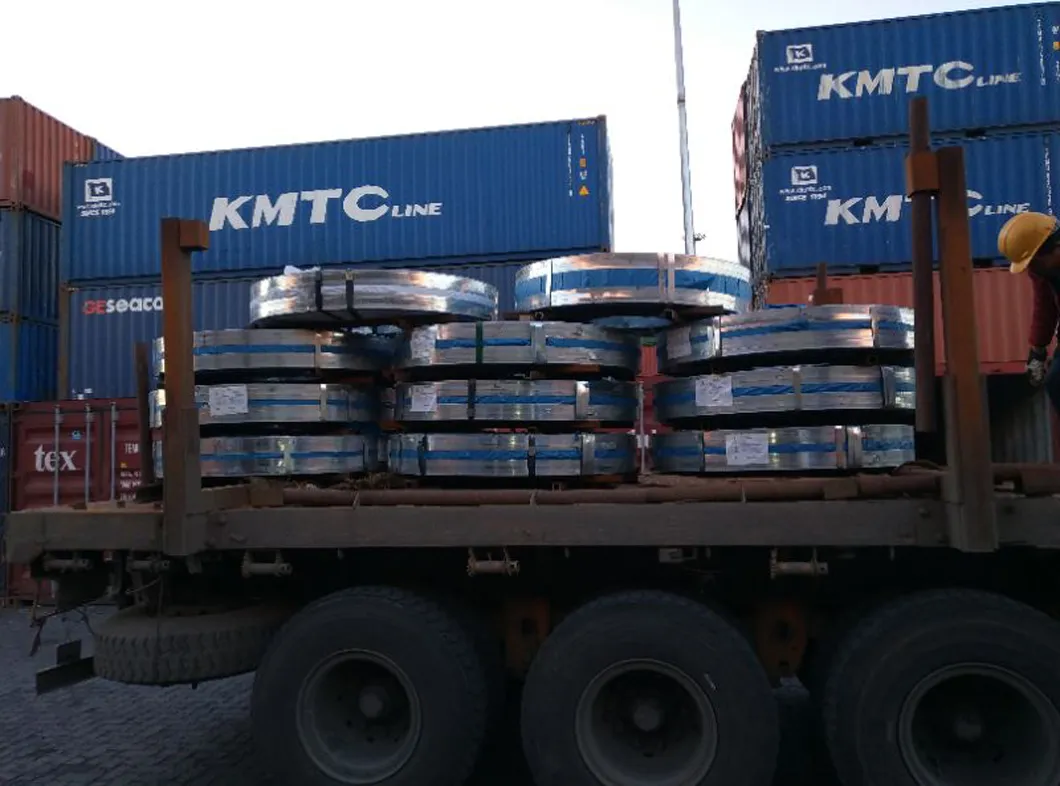

Package & Loading:
Standard Export Seaworthy Packing : With waterproof paper, metal belt pack sheet, put them in wooden pallet, put in container.

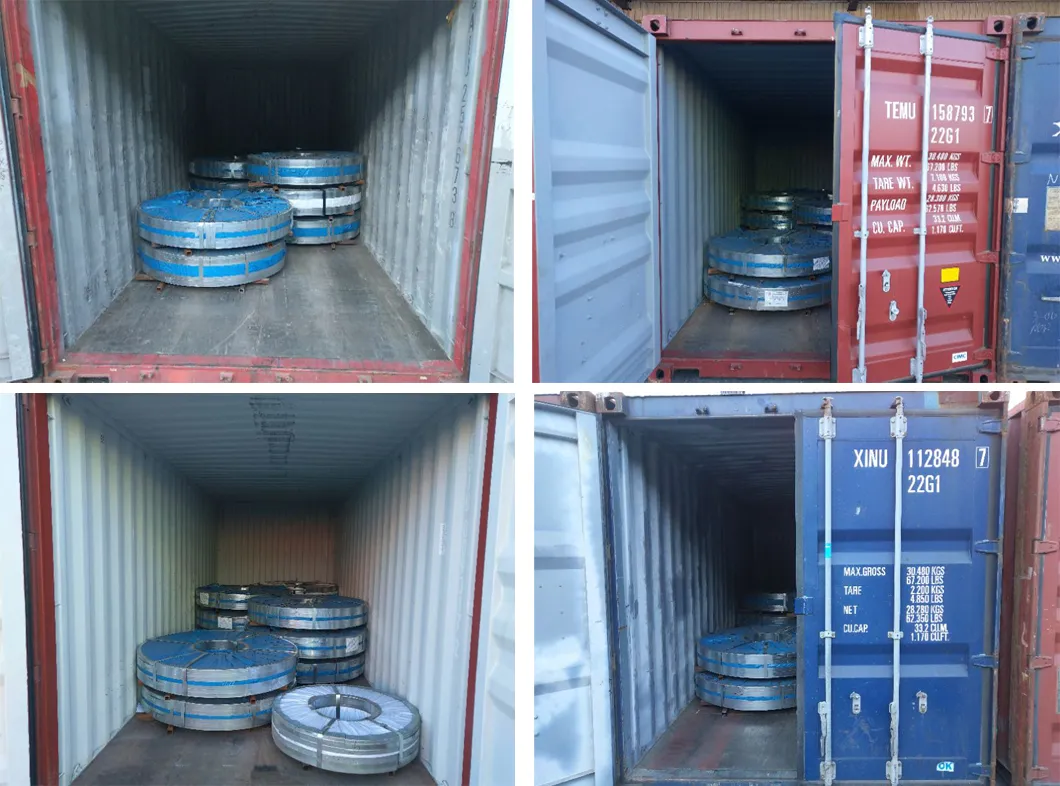

The inner size of commonly used container is below:
20FT GP: 5.69mx 2.13mx 2.18m about 25MTS,24-26m³
40FT GP: 11.8mx 2.13m x 2.18m ;about 25MTS,54m³
40FT HG: 11.8m x 2.13m x 2.72m about 22MTS,68m³
