Hot-DIP Zinc-Plating Galvanized Steel Strand Wire for Communication Cable
Hot Dip GSW Galvanized Steel Wire Zinc Coated Stay Guy Wire ASTM-A475 BS-183 standardGSW (Galvanized Steel Wire) 1. StandardsASTM A475: Standard Specification for Zinc-Coated Steel Wire StrandASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Ste......
Send Inquiry
Product Description
Hot Dip GSW Galvanized Steel Wire Zinc Coated Stay Guy Wire ASTM-A475 BS-183 standard
GSW (Galvanized Steel Wire)
1. Standards
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors
JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays-Bare overhead
2.Technical Data

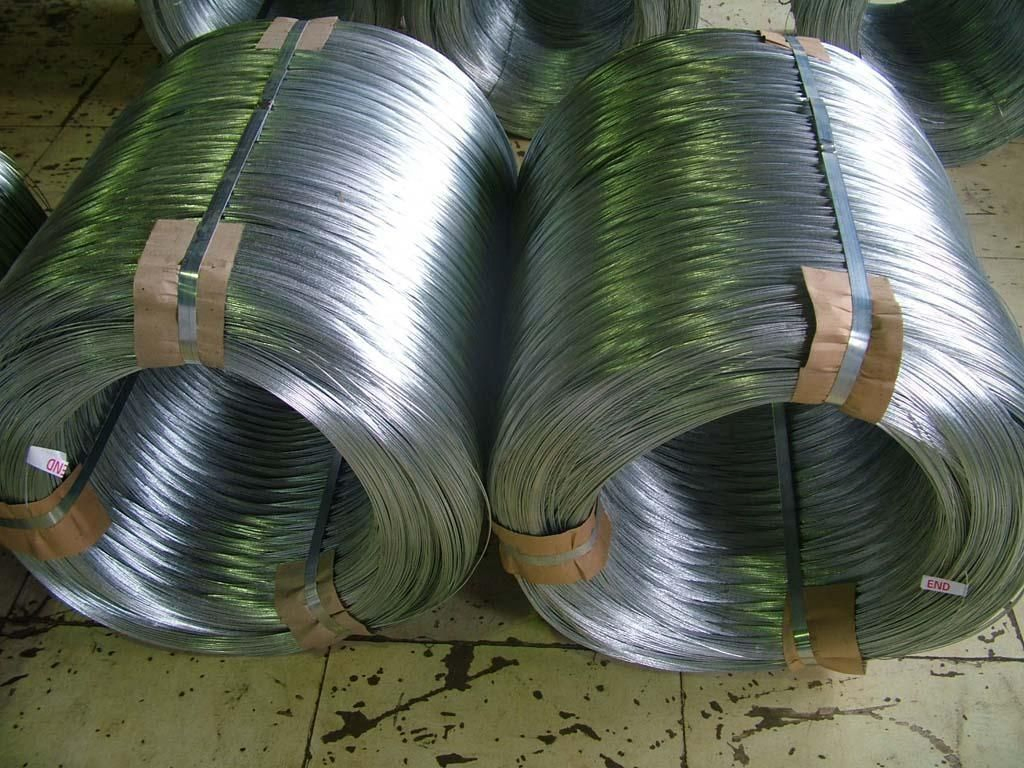

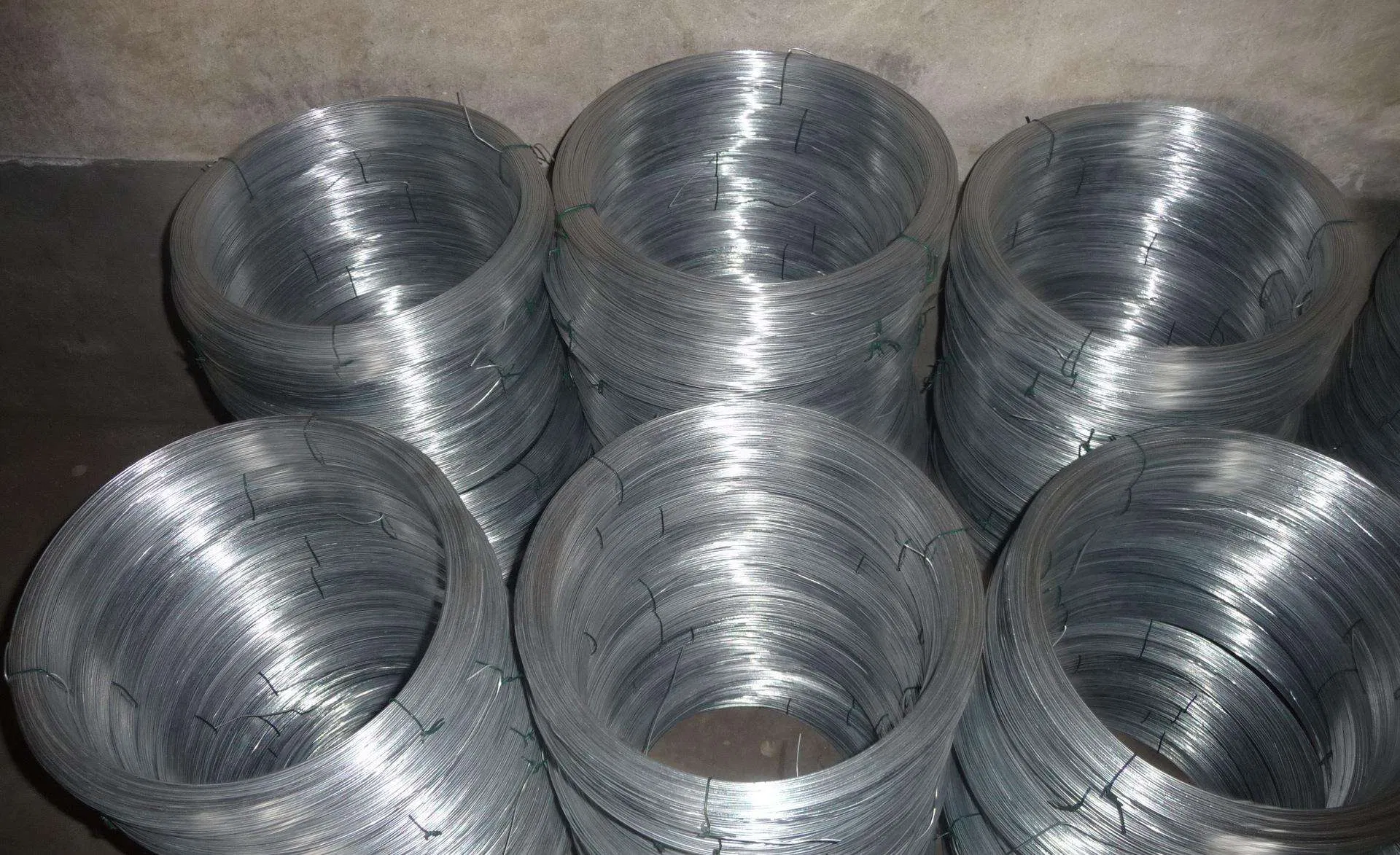

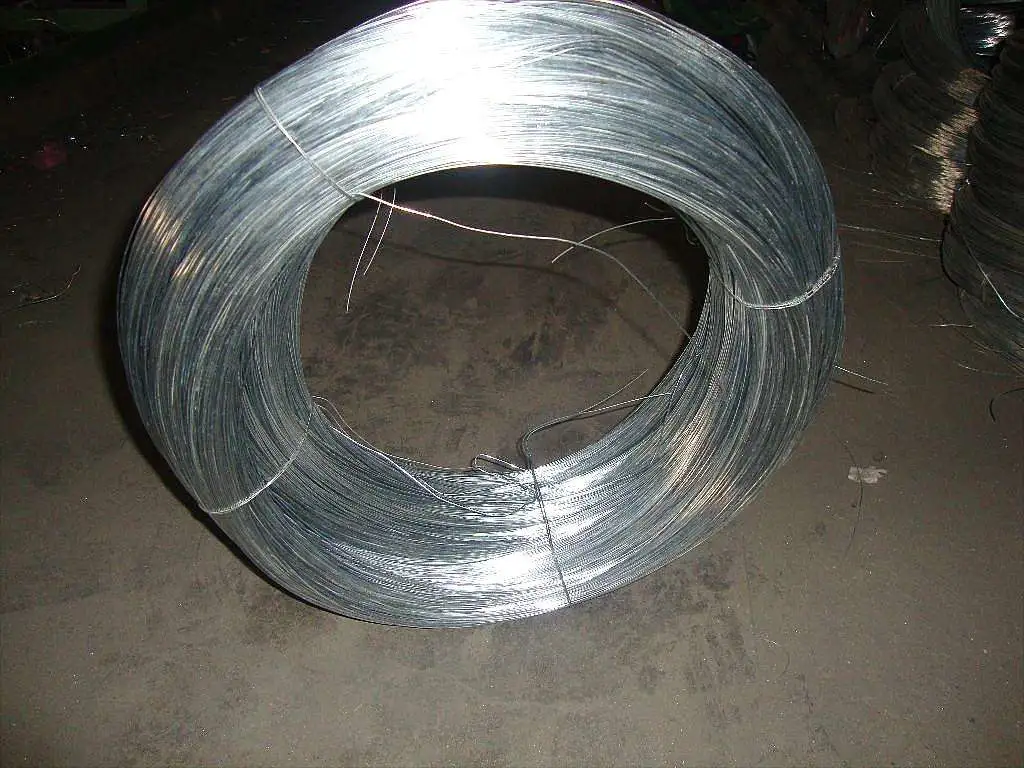

Hot-Dipped Galvanized steel wire
Diameter:1.24~5.50mm
Zinc Coating:150-400g/m2 ASTM class A. class B.
Tensile Strength:900-1720 mpa.
Intensity Level:General,High,Very High.
Min.No. of 360° twists:10~16.
Construction:1×3,1×7,1×19.
3. Application
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.
4.Galvanized Steel Wire Strand to ASTM A 475
| Number of wires/ Nominal dia. | Approx. strand dia. | Utilities grade | Common grade | Siemens- martingrade | High- strength grade | Extra high- strength grade | Approx. weight | |
| No./mm | Inch | mm | kN | kN | kN | kN | kN | kg |
| 3/2.64 | 7/32 | 5.56 | - | 6.228 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 14.012 | 8.274 | 13.523 | 21.040 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | 20.017 | - | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | - | 9.252 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 28.913 | 11.076 | 18.193 | 28.246 | 40.479 | 255 |
| 3/4.19 | 3/8 | 9.52 | 37.810 | 14.813 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | - | 2.402 | 4.048 | 5.916 | 8.140 | 48 |
| 7/1.32 | 5/32 | 3.97 | - | 3.870 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | - | 5.115 | 8.452 | 12.677 | 17.748 | 109 |
| 7/1.65 | 3/16 | 4.76 | 10.676 | - | - | - | 119 | |
| 7/1.83 | 7/32 | 5.56 | - | 6.850 | 11.387 | 17.126 | 24.020 | 146 |
| 7/2.03 | 1/4 | 6.35 | - | 8.452 | 14.012 | 21.129 | 29.581 | 180 |
| 7/2.36 | 9/32 | 7.14 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 | 244 |
| 7/2.64 | 5/16 | 7.94 | - | 14.234 | 23.798 | 35.586 | 49.820 | 305 |
| 7/2.77 | 5/16 | 7.94 | 26.689 | - | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 51.155 | 18.905 | 30.915 | 48.040 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 | 595 |
| 7/4.19 | 1/2 | 12.70 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 | 770 |
| 7/4.78 | 9/16 | 14.29 | - | 42.703 | 69.837 | 108.981 | 155.688 | 1000 |
| 7/5.26 | 5/8 | 15.88 | - | 51.599 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.70 | - | 33.895 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | - | 42.881 | 71.616 | 107.202 | 149.905 | 949 |
| 19/3.18 | 5/8 | 15.88 | - | 48.930 | 80.513 | 124.995 | 178.819 | 1186 |
| 19/3.81 | 3/4 | 19.05 | - | 71.172 | 116.543 | 181.487 | 259.331 | 1721 |
| 19/4.50 | 7/8 | 22.22 | - | 97.416 | 159.691 | 248.211 | 354.523 | 2356 |
| 19/5.08 | 1 | 25.40 | - | 127.664 | 209.066 | 325.610 | 464.839 | 3089 |
| 37/3.63 | 1 | 25.40 | - | 125.885 | 205.508 | 319.827 | 456.832 | 3065 |
| 37/4.09 | 28.58 | - | 160.136 | 262.000 | 407.457 | 581.827 | 4010 | |
| 37/4.55 | 1¼ | 31.75 | - | 198.391 | 324.720 | 505.318 | 721.502 | 4840 |
BS 183 standard
| Number of wires/Dia. | Approx. Strand Dia. | Minimum Breaking Load of Strand | Approx.Weight | ||||||
| Grade 350 | Grade 480 | Grade 700 | Grade850 | Grade 1000 | Grade 1150 | Grade 1300 | |||
| mm | kN | kN | kN | kN | kN | kN | kN | kg/km | |
| 3/1.80 | 3.9 | 2.65 | 3.66 | - | 60 | ||||
| 3/2.65 | 5.7 | 5.8 | 7.95 | - | 130 | ||||
| 3/3.25 | 7 | 8.7 | 11.95 | - | - | 195 | |||
| 3/4.00 | 8.6 | 13.2 | 18.1 | - | 295 | ||||
| 4/1.80 | 4.4 | 3.55 | 4.9 | - | 80 | ||||
| 4/2.65 | 6.4 | 7.7 | 10.6o | - | 172 | ||||
| 4/3.25 | 7.9 | 11.6 | 15.9 | - | 260 | ||||
| 4/4.00 | 9.7 | 17.6 | 24.1 | 35.2 | 390 | ||||
| 5/1.50 | 4.1 | 3.1 | 4.24 | 6.18 | - | 69 | |||
| 5/1.80 | 4.9 | 4.45 | 6.1 | 8.9 | 95 | ||||
| 5/2.65 | 7.2 | 9.65 | 13.25 | 19.3 | - | 220 | |||
| 5/3.25 | 8.8 | 14.5 | 19.9 | 29 | - | 320 | |||
| 5/4.00 | 10.8 | 22 | 30.15 | 43.95 | 490 | ||||
| 7/O.56 | 1.7 | 0.6 | 0.83 | 1.2 | 1.7 | 1.98 | 2.24 | 14 | |
| 7/0 71 | 2.1 | 0.97 | 1.33 | 1 94 | 2.75 | 3.19 | 3.6 | 28 | |
| 7/0.85 | 2.6 | 1.39 | 1.9 | 2.8 | 3.95 | 4.57 | 5.15 | 31 | |
| 7/0.90 | 2.7 | 1.55 | 2.14 | 3.1 | 4.45 | 5.12 | 5.8 | 35 | |
| 7/l.00 | 3 | 1.92 | 2.64 | 3.85 | 5.5 | 6.32 | 7.15 | 43 | |
| 7/1.25 | 3.8 | 3.01 | 4.1 | 6 | 8.55 | 9.88 | 11.15 | 67 | |
| 7/1.40 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14 | 84 |
| 7/RS* | 4.3 | 3.85 | 5.28 | 7.7 | 9.35 | 11 | 12.65 | 14.3 | 86 |
| 7/1.60 | 4.5 | 4.9 | 6.75 | 9.85 | 11.95 | 14.1 | 16.2 | 18.3 | 110 |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | - | 17.8 | 20.5 | 23.2 | 140 |
| 7/2.00 | 6 | 7.7 | 10.55 | 15.4 | 22 | 25.3 | 28.6 | 170 | |
| 7/2.36 | 7.1 | 10.7 | 14.7 | 21.4 | 30.6 | 35.2 | 39.8 | 240 | |
| 7/2.65 | 8 | 13.5 | 18.5 | 27 | 38.6 | 44.4 | 50.2 | 300 | |
| 7/3.00 | 9 | 17.3 | 23.75 | 34.65 | 49.5 | 56.9 | 64.3 | 392 | |
| 7/3.15 | 9.5 | 19.1 | 26.2 | 38.2 | 54055 | 62.75 | 70.9 | 430 | |
| 7/3.25 | 9.8 | 20.3 | 27.85 | 40.65 | 58.05 | 66.8 | 75.5 | 460 | |
| 7/3.65 | 11 | 25.6 | 35.5 | 51.25 | 73.25 | 84.2 | 95.2 | 570 | |
| 7/4.00 | 12 | 30.9 | 42.2 | 61.6 | 88 | 101 | 114 | 690 | |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.5 | 99.3 | 114 | 129 | 780 | |
| 7/4.75 | 14 | 43.4 | 59.45 | 86.8O | 124 | 142.7 | 161.3 | 970 | |
| 19/1.00 | 5 | 5.22 | 7.16 | 10.45 | 14.92 | 17.16 | 19.4 | 120 | |
| 19/1.25 | 6.3 | 8.16 | 11 .19 | 16.32 | 23.32 | 26.81 | 30.31 | 180 | |
| 19/1.40 | 7 | 10.24 | 14.04 | 20.47 | 29.25 | 33.64 | 38.02 | 230 | |
| 19/1.60 | 8 | 13.37 | 18.35 | 26.75 | 38.2 | 43.93 | 49.66 | 300 | |
| 19/2.00 | 10 | 20.9 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.6 | 470 |
| 19/2.50 | 12.5 | 32.65 | 44.8 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 |
| 19/3.00 | 15 | 47 | 64.5 | 94 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 |
| 19/3.55 | 17.8 | 65.8 | 90.27 | 131.6 | 159.9 | 188 | 216.3 | 244.5 | 1470 |
| 19/4.00 | 20 | 83.55 | 114.6 | 167.1 | 203 | 238.7 | 274.6 | 310.4 | 1870 |
| 19/4.75 | 23.8 | 117.85 | 161.6 | 235.7 | 286 | 336.7 | 387.2 | 437.7 | 2630 |
IEC 61089 standard
| Nominal area St | code number | Area/mm2 | Number of wires | Diameter/mm | Linear Mass/(kg/km) | Rated strength/kN | Max.D.C Resistance (20ºC)/(Ω/km) | ||||
| JGIA | JGIB | JG2A | JG3A | ||||||||
| 30 | 4 | 27.1 | 7 | 2.22 | 6.66 | 213.3 | 36.3 | 33.6 | 39.3 | 43.9 | 7.1445 |
| 40 | 6.3 | 42.7 | 7 | 2.79 | 8.36 | 335.9 | 55.9 | 51.7 | 60.2 | 67.9 | 4.5362 |
| 65 | 10 | 67.8 | 7 | 3.51 | 10.53 | 553.2 | 87.4 | 80.7 | 93.5 | 103 | 2.8578 |
| 85 | 12.5 | 84.7 | 7 | 3.93 | 11.78 | 666.5 | 109.3 | 100.8 | 116.9 | 128.8 | 2.2862 |
| 100 | 16 | 108.4 | 7 | 4.44 | 13.32 | 853.1 | 139.9 | 129 | 199.7 | 164 | 1.7861 |
| 100 | 16 | 108.4 | 19 | 2.7 | 13.48 | 857 | 142.1 | 131.2 | 152.9 | 172.4 | 1.7944 |
| 150 | 25 | 169.4 | 19 | 3.37 | 16.85 | 1339.1 | 218.6 | 201.6 | 238.9 | 262.6 | 1.1484 |
| 250 | 40 | 271.1 | 19 | 4.26 | 21.31 | 2141.6 | 349.7 | 322.6 | 374.1 | 414.1 | 0.7177 |
| 250 | 40 | 271.1 | 37 | 3.05 | 21.38 | 2148.1 | 349.7 | 322.6 | 382.3 | 420.2 | 0.7196 |
| 400 | 63 | 427 | 37 | 3.83 | 26.83 | 3383.2 | 550.8 | 508.1 | 589.3 | 649 | 0.4569 |
COMPANY PROFILE
Tangshan yuxuan international trading co., ltd is a large scale enterprise mainly focusing on the producing. domestic distribution and export of steel products. established in 2014, yuxuan steel covers a land area of 60,000 square meters with registered capital 5 million dollars. with the great surport from customers in china and abroad, our business scope becomes wider and greater, and accomplished excellent achievements in and accomplished excellent achievements in steel trading since established. until now, yuxuan steel has staff of 192 persons, and passed trough the iso9001:2000 quality management suystem certification in 2014. with an average of 30,000tons for all sizes stock, the products have been saled all over the world. our sales amount has exceeded 1.2 million tons, including 260 million u.s. dollars of export, which makes yuxuan steel ranked top 5 in tangshan exportation area, and top 30 all over the china among steel exporting companies.
The main products of our company include: structural steel, wire rod, pipes, hr coils/plates, deformed steel bars, square bars and galvanized products. our company's structural steel products are unique competitive. there are jis standard, astm standard and en standard for angle bar, u-channel, h-beam, i-beam, and flat bars. meanwhile, we are widely develop factory of wire rod, deformed steel bar and square bar which make yuxuan open up international market and bring about extraordinary dvelopment in export business.
Our company strictly follows the domestic and international trading practices, and view credit as life, we will offer entire customers our best quality and service. the company has established a comprehensive of service system and technical support system, to provide customers not only highest quality products but also comprehensive after-sales service.
We are firmly conviced that we will have a much more promising future together!
1. Long history ,high credit.
Over 14 years experience on steel, especially PPGI ,PPGL and so on.
2. Sound Quality Control.
We have a very strict QC system to ensure the quality of our product.
3. Competitive Price.
We Cherish each customer, and always like to offer the best Price we can do.
4. Short Delivery Time
We have plenty stock to ensure a short leading time
5. Quick Response.
Your inquiry will be replied within 24 hours. We have a very young and passionate team ,we want to provide the
best customer service for our customers.
We have Alibaba trade assurance. It 's an approach designed to help create trust between buyers and suppliers. Alibaba.com buy buyers with 100% payment protection from their selected Trade Assurance suppliers.
So. Any question, Any time .Please Don't hesitate to contact us.
FAQ
Q1,How to get an accurate quotation?
Product detail size & Length
Product quantities.
Product Material grade
Q2,How to contact with us?
Trade manager online,chat with me directly.
Send an inqury to us.
Make a call to us:+86-17333597653
Q3,What other items from this supplier?
angle line structural steel,H beam,I beam,Channel.
Square,rectangular,round hollow section pipe.
Steel plate,checker plate,corrugated sheet,steel coil.
Flat,square,round bar.ppgl,PPGL/PPCR/PPGI
.
